|Heat Up Time:||-55℃～+150℃,within 60 Min||Custom Made:||Available|
|Working Volume:||225L||Humidity Range:||20～98％R.H|
|Temperature Uniformity:||±2.0º C (with Empty Load)||Controller:||LED Touch Screen|
|Compressor:||Danfoss Or Tecumseh Or Blog||Wiring Method:||AC 380±10％ 50Hz ,3 Phase 4 Wires +Ground Wires|
environmental testing chambers,
Thermal Shock Test Chamber

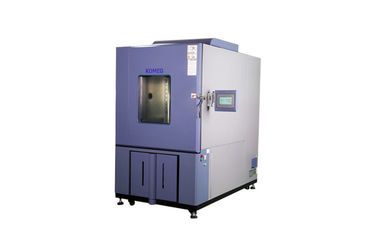

High Quality Environmental Stress Screening Chambers used for highly accelerated life test
Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
Wide variety of refrigeration available for performance and temperature range flexibility.
Programmable LCD touchscreen controller for product or air-change available.
A. Reliability testing based on current test standards in the temperature range of -40 °C to 180 °C and 10% to 98% R.H.
B. The ideal simulation chamber for all heat and cold testing in the traditional temperature range -40 ºC and 150 ºC.
C. Forced ventilation loops design, balance temperature & humidity control system (BTHC).
D. We can provide custom-made machine and optional accessories satisfied your special requirements.
E. Improved programming and data collection via computer
F. Energy-saving operation, the KM-5166 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of KOMEG environmental test chambers the most energy efficient ever.
Standards Implemented and met
●GB10592-89 Technical requirements for high and low temperature test chamber
●GB2423.1-1989 Low temperature test mode
●GB2423.2-1989 High temperature test mode
●GJB150.3-1986 High temperature test mode
●GJB150.4-1986 Low temperature test mode
●GJB150.9-1986 Warm test method
●Stainless steel exterior
●Energy-efficient refrigeration with exclusive electronic expansion valve system
●Specialized humidity generation and control
●Unique thermal break construction for extreme testing
●Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
●No fuse breaker, over pressure,over heat and over current protection for compressor, Over temperature protection, over load protect of blower, dry heat protection
Overall structure, new test chamber designed very easy to operation and maintenance:
Water and electricity system separation design;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
machines for sheet metal processing;
Tecumseh, Bock Compressor;
High quality electronic components (e.g. DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
Hermetic compressor, stag refrigeration system
Benefits more than you can get from other supplier.
1)Delicate touch and excellent user experience
2)Unique and compact design, top grade appearance, stable performance and easy operation.
3)Can simulate a wide range of temperature and humidity environments
4)Capable of testing large components, assemblies, and finished products
5)Customized sizes and configurations available

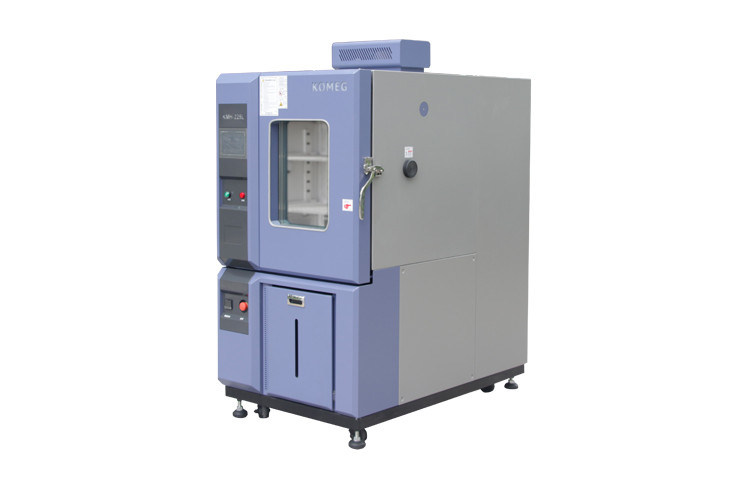

Some environmental test chamber details
Part of the certificate for KOMEG test chamber
|Working Chamber Volume(L)||225L|
|Temp Rate of Change( ºC /Min)||5 ºC /Min|
|Temperature Range||-70 ºC～+100 ºC( Rapid Temp Change -55 ºC～+85 ºC Full Linear Control)|
|Humidity Constancy||±0.5 ºC|
|Temp Constancy||±3.0 ºC|
|Exterior Material||Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel|
|Interior Material||Stainless Steel Plate(SUS 304)|
|Insulation Material||Rigid Polyurethane Foam|
|Safety Devices||over pressure,over heat and over current protection for compressor, over temp. protection,|
|Cooling Mode||Water Cooled|
|Control system||Balanced Temperature & Humidity Control System(BTC type)|
|Heater||Iron-chrome wire heater|
|Observation Window||Glass incorporating heat generator|
|Controller||Touch screen programmable controller|
|Power||AC 380V/50Hz 3phase 5 wires+ Ground wire|
|Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available|
