Product Name: | Repid Temp Change Chamber | Application: | Reliability Testing, Research & Development Testing, Failure Analysis |
---|---|---|---|
Working Chamber Volume: | 1000L | Power Source: | AC380V |
Cooling Mode: | Water Cooled | Compressor: | Semi-Hermetic Compressor |
Heater: | Iron-chrome Wire Heater | Controllor: | Touch Screen Programmable Controllor |
Temperature Constancy: | ±0.5℃ | ||
High Light: | environmental testing chambers,Thermal Shock Test Chamber |

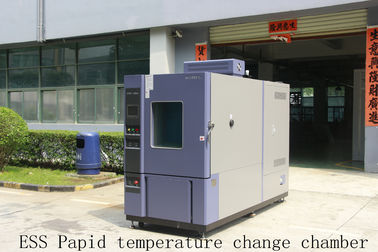

70 below zero to 150 degrees High Low Temperature rapid change Test Machine
1. Applications
High Low rapid change Temperature Test Machine is mainly used for the electrical, electronics, and their original devices, and other materials at high temperature, low temperature environment storage, transportation, use of adaptive testing. The test equipment is mainly used for products in accordance with national standards or user-defined requirements, at low temperature, high temperature, conditions, the products of the physical and other relevant characteristics of environmental simulation tests, through testing, to determine product performance, is still able to meet the intended requirements for the design, improvement, identification and factory inspection purposes.
2. Standard compliance
GB/T2423.1-2008(IEC60068-2-1:2007) Environmental testing - Part 2: Test methods - Tests A: Cold
GB/T2423.2-2008(IEC60068-2-2:2007) Environmental testing for electric and electronic products Test methods - Tests B:Dry Heat
GJB150.3-1986 High temperature test
3. Specifications
Model | ESS-SL |
1000SL15 | |
Working Chamber Volume(L) | 1000L |
Temp Rate of Change( ºC /Min) | 15 ºC /Min |
Temperature Range | -70 ºC~+100 ºC( Rapid Temp Change -55 ºC~+85 ºC Full Linear Control) |
Humidity Constancy | ±0.5 ºC |
Temp Constancy | ±3.0 ºC |
Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel |
Interior Material | Stainless Steel Plate(SUS 304) |
Insulation Material | Rigid Polyurethane Foam |
Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, |
Compressor | Semi-Hermetic Compressor |
Cooling Mode | Water Cooled |
Control system | Balanced Temperature & Humidity Control System(BTC type) |
Heater | Iron-chrome wire heater |
Blower | Centrifugal Blower |
Observation Window | Glass incorporating heat generator |
Temp Sensor | Pt-100 |
Controller | Touch screen programmable controller |
Ambient Temp. | +5ºC~+35ºC |
Power | AC 380V/50Hz 3phase 5 wires+ Ground wire |
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
4. Features:
Intelligent 32bit measuring and control system with colorful screen. Interface USB and Ethernet.
-Programmable power outlet with 4-CH. ON/OFF output control to ensure safety.
-Patented air circulation system improve test's accuracy.
-Independent thermal protector and sensors keep test specimen off over temperature, breezeless and smog.
-Network video monitoring is synchronized with test data.
-Without defrosting during operating in low temperature.
- Modular fabrication technique.
-APP mobility management.
-Environmental servo refrigerant flow control for energy saving and quick heat-up/cool-down rate.
-Uniquely operation mode makes testing zone's temperature back to R.T after test, which protects sample status.
-Automatic reminder of maintenance time of equipments and software of fault records.
-Optional remote service function and video CD of equipment operation.
5. Material:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
