Product Details:
Payment & Shipping Terms:
|
| Product Name: | Repid Temp Change Chamber | Application: | Reliability Testing, Research & Development Testing, Failure Analysis |
|---|---|---|---|
| Working Chamber Volume: | 1000L | Power Source: | AC380V |
| Cooling Mode: | Water Cooled | Compressor: | Semi-Hermetic Compressor |
| Heater: | Iron-chrome Wire Heater | Controllor: | Touch Screen Programmable Controllor |
| Temperature Constancy: | ±0.5℃ | ||
| Highlight: | environmental testing chambers,Thermal Shock Test Chamber |
||

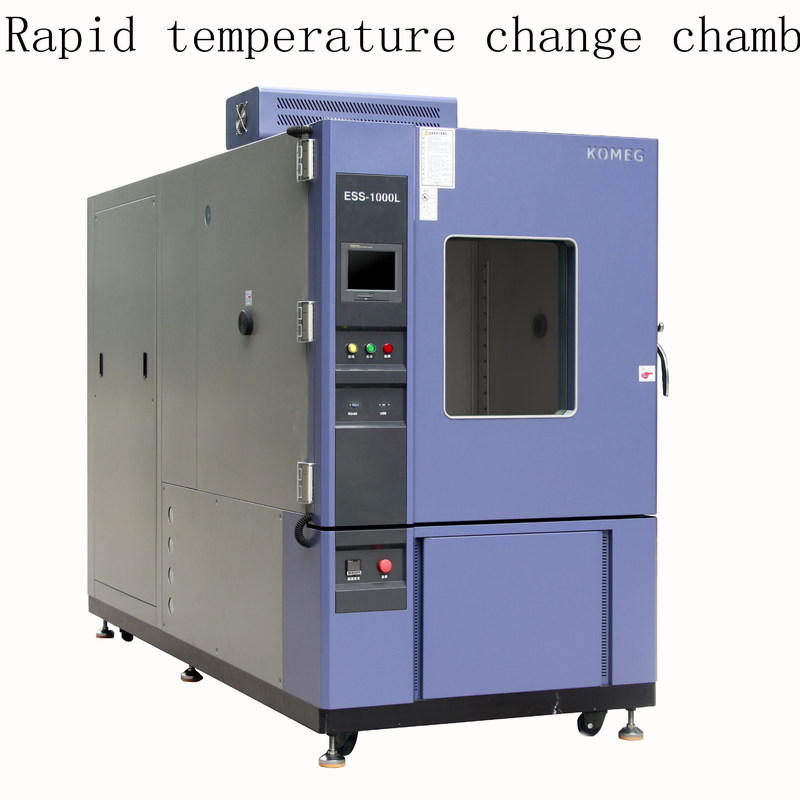

Rubber and automobile parts use Temperature non-linear change rapid rate climate chamber
1. Applications
Rapid rate climate chamber can be used to test various types of materials for their tolerancesof heat, cold, dry, humidity. It is widely used in quality inspection for all types of electronic products, electric appliance, communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries. By testing the material or product under temperature humidity environment, to determine the electrical, electronics ‘adaptability for environmental temperature and environment humidity (especially in the products‘ changes of electric capability and mechanical properties ), can also be used to inspect a sample tolerance with corrosion.
2. Standard compliance
GB/T5170.2-2008 Inspection methods for environmental testing equipments for electric and electronic products-Temperature testing equipments
GB/T2423.1-2008(IEC60068-2-1:2007)Environmental testing - Part 2: Test methods - Tests A: Cold
GB/T2423.2-2008(IEC60068-2-2:2007)Environmental testing for electric and electronic products Test methods - Tests B:Dry Heat
GB/T2423.22 Environmental testing for electric and electronic products-Part 2:Test methods-Test N:Change of temperature
IEC 60068-2-14 2009 Environmental testing -- Part 2-14: Tests -- Test N: Change of temperature
GB/T5170.2-2008 Inspection methods for environmental testing equipments for electric and electronic products-Temperature testing equipments
3. Specifications
| Model | ESS-SL |
| 1000SL15 | |
| Working Chamber Volume(L) | 1000L |
| Temp Rate of Change( ºC /Min) | 15 ºC /Min |
| Temperature Range | -70 ºC～+100 ºC( Rapid Temp Change -55 ºC～+85 ºC Full Linear Control) |
| Humidity Constancy | ±0.5 ºC |
| Temp Constancy | ±3.0 ºC |
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel |
| Interior Material | Stainless Steel Plate(SUS 304) |
| Insulation Material | Rigid Polyurethane Foam |
| Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, |
| Compressor | Semi-Hermetic Compressor |
| Cooling Mode | Water Cooled |
| Control system | Balanced Temperature & Humidity Control System(BTC type) |
| Heater | Iron-chrome wire heater |
| Blower | Centrifugal Blower |
| Observation Window | Glass incorporating heat generator |
| Temp Sensor | Pt-100 |
| Controller | Touch screen programmable controller |
| Ambient Temp. | +5ºC~+35ºC |
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |
4. Features:
1. New design, easy operation.
2. Imported LCD touch controller.
3. Uniform air supply cycle system.
4. Long axis motor is vertically installed on the top.
5. Bright and spacious observation window.
6. Advanced security protection device
7. Rapid heating-up and heating-down temperature
8. Best after sales service: One year free parts maintenance.
9. Meet international test standards.
10. Customization is available & welcomed.
In addition to the Temperature rapid change rate climatic test chamber, We are also manufacturing:
Programmable Temperature & humidity testing Chamber, Triple layer Type Temperature & humidity Chamber, Temperature & humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk In environmental Testing Room, Temperature & humidity & Vibration Combined Testing Chamber, Aging Oven Tester, Rain/Spray Testing Chamber, Burn-in testing equipment, Dust Tester, Steam Aging Tester, Dispensing Robots, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop Tester, Precision Oven Tester, etc.
