Product Details:
Payment & Shipping Terms:
|
| Controller: | Touch Screen | Compressor: | Tecumseh, Bock Compressor |
|---|---|---|---|
| Warranty: | 12 Months On Parts (excluding The Damages Caused By The Natural Disasters, Abnormal Power, Improper Operation And Maintenance, Etc) | Cooling Mode: | Air Cooled |
| Temp Rate Of Change( ℃/Min): | 10 Degree Per Min | Working Chamber Volume(L): | 1000 |
| Power: | AC 380V/50Hz 3phase 5 Wires+ Ground Wire | Material: | Stainless Steel |
| Highlight: | environmental testing chambers,Thermal Shock Test Chamber |
||

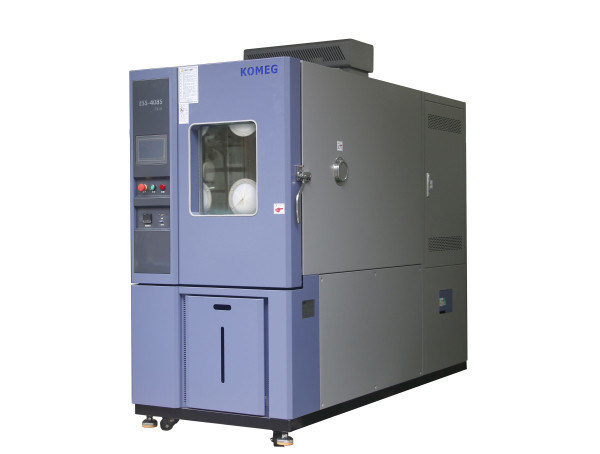

AC380V -55℃ ~ +85℃ Air-Cooled Full Linear Control ESS Chamber , Thermal Cycling Chamber
KOMEG Environmental test chambers from China are designed for safety and reliability.KOMEG is a China leader provider of climatic chamber.
Manufacturer of environmental test chambers, ESS chambers, thermal shock chamber and other environmental simulation equipment.
Applications :
What is ESS?
Environmental stress screening (ESS) is also known as Burn-in, AST (Accelerated Stress Testing), HALT (Highly Accelerated Stress Test), or HASS (Highly Accelerated Stress Screening). No matter what the name is, the idea is the same: create a test program that allows you to eliminate the infant mortality of your products.
KOMEG Environmental Stress Screening (ESS) Systems are specially designed to meet a range of ESS testing applications. ESS Systems consist of a test chamber, controller, product fixture, interconnect and wiring, and a functional tester.
| Specifications | |||||||
| Model | ESS-SL | ||||||
| 225SL5 | 225SL10 | 408SL5 | 408SL10 | 1000SL5 | 1000SL10 | 1000SL15 | |
| Working Chamber Volume(L) | 225 | 408 | 1000 | ||||
| Temp Rate of Change( ℃/Min) | 5 | 10 | 5 | 10 | 5 | 10 | 15 |
| Performance | -70℃～+100℃ | ||||||
| Rapid Temp Change -55℃～+85℃ Full Linear Control | |||||||
| Humidity Constancy | ±0.5℃ | ||||||
| Temp Constancy | ±3.0℃ | ||||||
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel | ||||||
| Interior Material | Stainless Steel Plate(SUS 304) | ||||||
| Insulation Material | Rigid Polyurethane Foam | ||||||
| Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, | ||||||
| Compressor | Semi-Hermetic Compressor | ||||||
| Cooling Mode | Water Cooled | ||||||
| Control system | Balanced Temperature & Humidity Control System(BTC type) | ||||||
| Heater | Iron-chrome wire heater | ||||||
| Blower | Centrifugal Blower | ||||||
| Observation Window | Glass incorporating heat generator | ||||||
| Temp Sensor | Pt-100 | ||||||
| Controller | Touch screen programmable controller | ||||||
| Ambient Temp. | +5℃～+35℃ | ||||||
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire | ||||||
|
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||||
Features :
Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
Wide variety of refrigeration available for performance and temperature range flexibility.
Programmable LCD touchscreen controller for product or air-change available.
Structure:
Overall structure, new test chamber designed very easy to operation and maintenance:
Water and electricity system separation design;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Material:
machines for sheet metal processing;
Tecumseh, Bock Compressor;
High quality electronic components (e.g. DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Standards Implemented and Met
GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
Industrial Application
Automotive
Board Level
Chassis Level
Computer Technology
Consumer Products
Full System Level Testing
Networking
Packaging Applications
Pharmaceutical
Power Supply
Servers
Sub-Assembly Components
Sub-Assembly Modules
Advantages:
Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
Standrad Accessories:
Sight window *1 (Adiabatic glass window)
cable port(diameter 50mm)*2,
Samples shelves *2 sets
Chamber lamp *1
Power cable: 2 meters long
Packing Details:
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easyload and transport, and to keep the chambers from potential crash or impact.
After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
