Product Details:
Payment & Shipping Terms:
|
| Controller: | Touch Screen | Compressor: | Tecumseh, Bock Compressor |
|---|---|---|---|
| Warranty: | 12 Months On Parts (excluding The Damages Caused By The Natural Disasters, Abnormal Power, Improper Operation And Maintenance, Etc) | Cooling Mode: | Water Cooled |
| Temp Rate Of Change( ℃/Min): | 10 | Working Chamber Volume(L): | 1000 |
| Power: | AC 380V/50Hz 3phase 5 Wires+ Ground Wire | ||
| High Light: | environmental testing chambers,Thermal Shock Test Chamber |
||

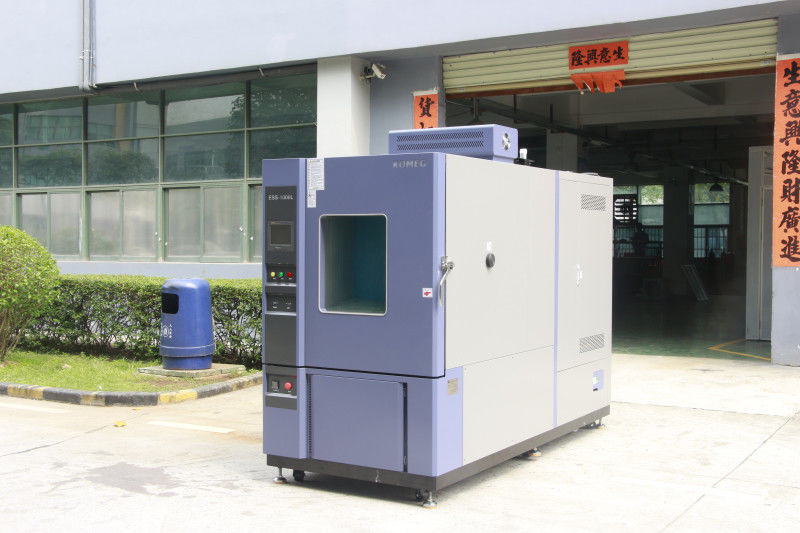

LCD touchscreen controller Rational Construction Rapid-Rate Thermal Cycle Chamber
KOMEG is a Chinese pioneer since 1990 for its design and manufacture of a comprehensive range ofenvironmental test chambers, from the compact bench-top to walk in size.
Applications :
Developed to help electronics manufacturers detect product defects and production flaws, Environmental Stress Screening forces infancy product failures that would otherwise occur after final assembly and product delivery. ESS Chambers’ goal is to improve profitability by eliminating defective products. ESS Systems can meet individual performance needs, product loading, and throughput requirements. KOMEG Technology has the experience to provide the best solution for ESS testing at your company.
| Specifications | |||||||
| Model | ESS-SL | ||||||
| 225SL5 | 225SL10 | 408SL5 | 408SL10 | 1000SL5 | 1000SL10 | 1000SL15 | |
| Working Chamber Volume(L) | 225 | 408 | 1000 | ||||
| Temp Rate of Change( ℃/Min) | 5 | 10 | 5 | 10 | 5 | 10 | 15 |
| Performance | -70℃～+100℃ | ||||||
| Rapid Temp Change -55℃～+85℃ Full Linear Control | |||||||
| Humidity Constancy | ±0.5℃ | ||||||
| Temp Constancy | ±3.0℃ | ||||||
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel | ||||||
| Interior Material | Stainless Steel Plate(SUS 304) | ||||||
| Insulation Material | Rigid Polyurethane Foam | ||||||
| Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, | ||||||
| Compressor | Semi-Hermetic Compressor | ||||||
| Cooling Mode | Water Cooled | ||||||
| Control system | Balanced Temperature & Humidity Control System(BTC type) | ||||||
| Heater | Iron-chrome wire heater | ||||||
| Blower | Centrifugal Blower | ||||||
| Observation Window | Glass incorporating heat generator | ||||||
| Temp Sensor | Pt-100 | ||||||
| Controller | Touch screen programmable controller | ||||||
| Ambient Temp. | +5℃～+35℃ | ||||||
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire | ||||||
|
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||||
Features :
Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
Wide variety of refrigeration available for performance and temperature range flexibility.
Programmable LCD touchscreen controller for product or air-change available.
Structure:
Overall structure, new test chamber designed very easy to operation and maintenance:
Water and electricity system separation design;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Material:
machines for sheet metal processing;

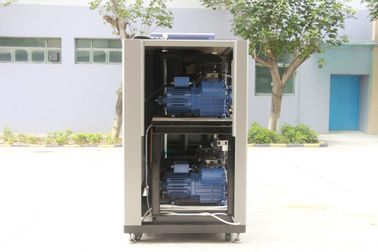

Tecumseh, Bock Compressor;
High quality electronic components (e.g. DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Standards Implemented and Met
GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
Industrial Application
Automotive
Board Level
Chassis Level
Computer Technology
Consumer Products
Full System Level Testing
Networking
Packaging Applications
Pharmaceutical
Power Supply
Servers
Sub-Assembly Components
Sub-Assembly Modules
Advantages:
Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
Standrad Accessories:
Sight window *1 (Adiabatic glass window)
cable port(diameter 50mm)*2,
Samples shelves *2 sets
Chamber lamp *1
Power cable: 2 meters long
Packing Details:
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easyload and transport, and to keep the chambers from potential crash or impact.
After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
