|Controller:||Touch Screen Programmable Controller||Test Space:||1000*1000*1000mm|
|ITEM:||Rapid Temperature Test Chamber||Cooling Mode:||Water Cooled|
|Material:||SUS 304 Stainless Steel Plate||Temperature Rang:||-70-100C|
environmental testing chambers,
Thermal Shock Test Chamber

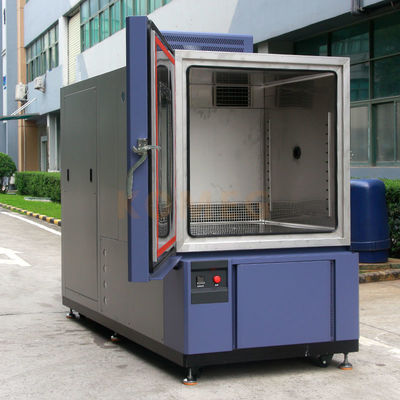

CE Reliability Testing Rapid-Rate Thermal Cycle Chamber with 15°C/min ramp rate
Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spareparts, particularly applies to environmental stress screening test(ESS)
Simulate high and low temperature environments in Associated Environmental Systems bench top or floor model temperature chambers.
1) Working volume from 64 to 1000 cubic L.
2) Conform to commercial and military standards for high and low temperature tests.
3) Self-contained single-stage refrigeration systems support low temperatures to -158°F / -70°C.
4) Two-stage cascade refrigeration systems support low temperatures to -140°F/-60°C. The two separate closed refrigerant circuits each use a different refrigerant with its own compressor.
|Working Chamber Volume(L)||225||408||1000|
|Temp Rate of Change( ℃/Min)||5||10||5||10||5||10||15|
|Rapid Temp Change -55℃～+85℃ Full Linear Control|
|Exterior Material||Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel|
|Interior Material||Stainless Steel Plate(SUS 304)|
|Insulation Material||Rigid Polyurethane Foam|
|Safety Devices||over pressure,over heat and over current protection for compressor, over temp. protection,|
|Cooling Mode||Water Cooled|
|Control system||Balanced Temperature & Humidity Control System(BTC type)|
|Heater||Iron-chrome wire heater|
|Observation Window||Glass incorporating heat generator|
|Controller||Touch screen programmable controller|
|Power||AC 380V/50Hz 3phase 5 wires+ Ground wire|
|Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available|
Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance
capacitive Multi-Touch-Display in the front
defined keys for elementary functions of the installation such as start/stop,
fixed-value/automatic operation, interruption, light, etc.
USB-Connection to save measuring data on USB Stick
Ethernet-Interface / RS232-Interface
2 Digital Out, to switch test specimen ON/OFF
adjustable software-temperature-limiter min./max.
shelf, stainless steel
entry port Ø 50 mm on the right side
low consumption data
minimum noise level
user-friendly operation and programming
uniform operation due to identical Multi-Touch-Display for all chamber sizes
temperature measuring with Pt 100 in air inlet and air outlet
international standards are fulfilled (CE-Conformity)
Standards Implemented and met
GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
Born for quality is always KOMEG’s philosophy. Better idea, better design and better quality are our aim. KOMEG strive for continuous innovation, releasing no less than 5 new designs each year.That’s why , KONICA MINOLTA, SENKO, Midea, TCL and Huawei are among our long-term clients.Sales agent are welcome. Inquire today to get your order started.
