Product Details:
Payment & Shipping Terms:
|
Product Name: | Repid Temp Change Chamber | Application: | Reliability Testing, Research & Development Testing, Failure Analysis |
---|---|---|---|
Working Chamber Volume: | 800L | Power Source: | AC380V |
Cooling Mode: | Water Cooled | Compressor: | Semi-Hermetic Compressor |
Heater: | Iron-chrome Wire Heater | Controllor: | Touch Screen Programmable Controllor |
Testing: | Reliability Test | ||
High Light: | environmental testing chambers,Thermal Shock Test Chamber |

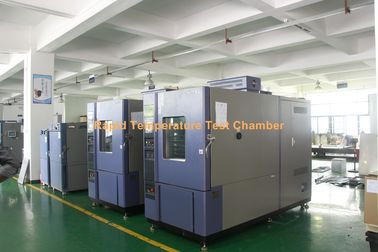

Rapid-rate temperature cycling chamber for environmental testing
1. Product description:
This product can accurately simulate complex natural environment conditions like high temperature or low temperature which is suitable for electronic, electrical appliances, batteries, plastics, food, paper products, vehicles, metals, chemical, building materials, research institute, university of inspection and quarantine bureau and other business units of qc inspection. Equipped with the world's famous refrigeration components, our product is much more stable, reliable and time-saving.
2. Brief Specifications:
1. We are manufacturer, offer reasonable price.
2. LCD touch screen controller.
3. With USB and RS-232 interface.
4. Free parts warranty for 12 months.
3. Specifications
Model | ESS-SL |
800L | |
Working Chamber Volume(L) | 800L |
Temp Rate of Change( ºC /Min) | 15 ºC /Min |
Temperature Range | -70 ºC~+100 ºC( Rapid Temp Change -55 ºC~+85 ºC Full Linear Control) |
Humidity Constancy | ±0.5 ºC |
Temp Constancy | ±3.0 ºC |
Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel |
Interior Material | Stainless Steel Plate(SUS 304) |
Insulation Material | Rigid Polyurethane Foam |
Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, |
Compressor | Semi-Hermetic Compressor |
Cooling Mode | Water Cooled |
Control system | Balanced Temperature & Humidity Control System(BTC type) |
Heater | Iron-chrome wire heater |
Blower | Centrifugal Blower |
Observation Window | Glass incorporating heat generator |
Temp Sensor | Pt-100 |
Controller | Touch screen programmable controller |
Ambient Temp. | +5ºC~+35ºC |
Power | AC 380V/50Hz 3phase 5 wires+ Ground wire |
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
Features:
Hot Cold Impact Test Machine is divided into three sections: the high temperature chamber, the low temperature chamber and the testing chamber.
5. Material:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
