| Product Name: | Repid Temp Change Chamber | Application: | Reliability Testing, Research & Development Testing, Failure Analysis |
|---|---|---|---|
| Working Chamber Volume: | 800L | Power Source: | AC380V |
| Cooling Mode: | Water Cooled | Compressor: | Semi-Hermetic Compressor |
| Heater: | Iron-chrome Wire Heater | Controllor: | Touch Screen Programmable Controllor |
| Testing: | Reliability Test | ||
| High Light: | environmental testing chambers,Thermal Shock Test Chamber |
||

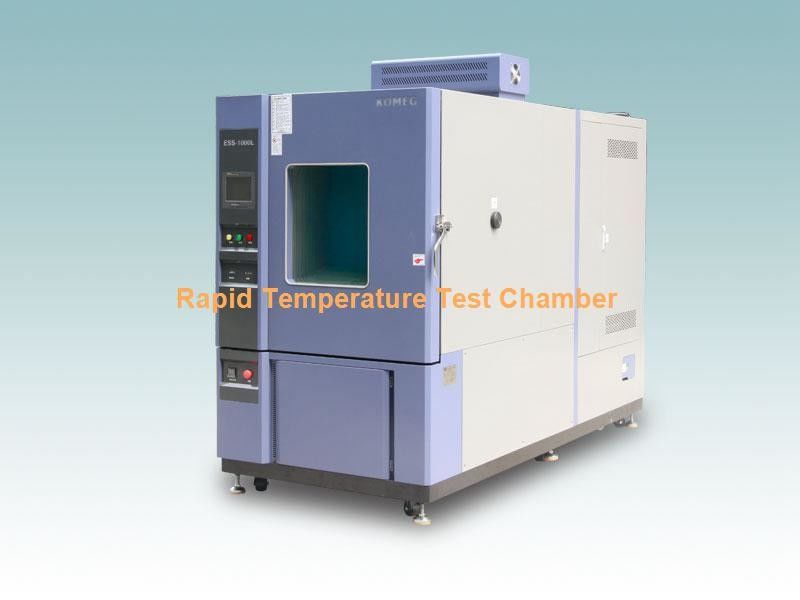

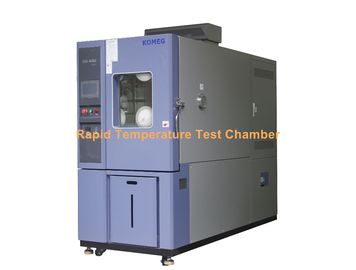

Temperature changing Rare Rapid Rate Temperature Cycle Test Chamber
1. Product description:
This kind of machine iswidely used in the accelerated humidity and heat tests or temperature test forthe electric products, materials, parts and components, coating, plating andequipment in the industries of aerospace, aviation, electronics.
Structure:
Exterior material: cold-rolled rust-proof steel plate(Urethane resin electrostatic coating)
Interior material: stainless steel plate (SUS304)
Insulation: glass wool
Heater: plate fin Nickel chromium wire electricheater
Refrigeration system: mechanical cascade refrigerator system(water-cooled condenser); hermetically sealed rotary compressor; capillary, thermalexpansion valve system.
Evaporator : Fin type
Air circulation: centrifugal fans
2. Corresponding standard:
1.GB/T2423.1-1989 low-temperature testing method
2.GB/T2423.2-1989 high-temperature testing method
3.GB/T2423.22-1989 temperature test
4.GJB150.5-86 temperature impact test
5.GJB360.7-87 temperature impact test
6.GJB367.2-87 405 temperature impact test
3. Specifications
| Model | ESS-SL |
| 800L | |
| Working Chamber Volume(L) | 800L |
| Temp Rate of Change( ºC /Min) | 15 ºC /Min |
| Temperature Range | -70 ºC～+100 ºC( Rapid Temp Change -55 ºC～+85 ºC Full Linear Control) |
| Humidity Constancy | ±0.5 ºC |
| Temp Constancy | ±3.0 ºC |
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel |
| Interior Material | Stainless Steel Plate(SUS 304) |
| Insulation Material | Rigid Polyurethane Foam |
| Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, |
| Compressor | Semi-Hermetic Compressor |
| Cooling Mode | Water Cooled |
| Control system | Balanced Temperature & Humidity Control System(BTC type) |
| Heater | Iron-chrome wire heater |
| Blower | Centrifugal Blower |
| Observation Window | Glass incorporating heat generator |
| Temp Sensor | Pt-100 |
| Controller | Touch screen programmable controller |
| Ambient Temp. | +5ºC~+35ºC |
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |
Features:
1.3-zone design: high temperature zone, cold temperature zone, and testing zone.
2.The test specimens under test are stationary in the testing zone.
3.Touch-control operation interface for ease of use.
4.Max.999H and max.9999 cycles for high or low temperature shock for thermal shock test chamber.
5.Automatic cycling shock or/and manual selective shock are available
6.Water cooled, binary cooling system for quick cooling effect .
5. Material:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
