| Temp. Range: | -70℃~+100℃ | Temp. Constancy: | ±3.0℃ |
|---|---|---|---|
| Temp. Uniformity: | ±0.5℃ | Warranty: | 1 Year |
| Power Supply: | AC 3 Phase 380V 60/50Hz | Controller: | LCD Touch Screen Controller |
| High Light: | Environmental Stress Screening Chambers,Thermal Shock Test Chamber |
||

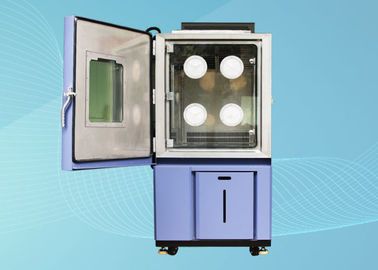

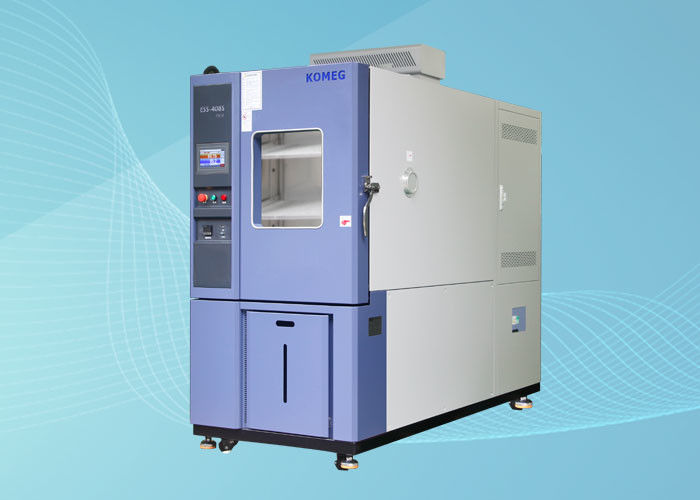

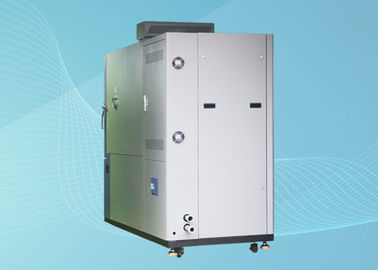

3 Phase Environmental Stress Screening Chambers Cold and Heat Temperature Shock Impact Test
Environmental stress test (ESS) is divided into: AST (accelerated stress test), HALT (high acceleration stress test) or HASS (high acceleration stress screening).
Another way is to create a test program that allows you to eliminate the mortality of your product.
The Environmental Stress Screening (ESS) system is designed to meet a range of ESS test applications. The ESS system consists of a test room, a controller, a product fixture, an interconnect and a wiring, and a functional tester.
The goal is to improve the profitability by eliminating defective products.
ESS system can meet the individual performance requirements, product load and test the number of requirements.
Our company has the experience of providing the best test solution for your company.
Features
1. environmental test chamber for rapid temperature Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. environmental test chamber for rapid temperature control temperature&humidity well-distributed, precisely and steady.
3. environmental test chamber for rapid temperature Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Standards Implemented and met
3.GB/T2423.22-1989 temperature test
4.GJB150.5-86 temperature impact test
5.GJB360.7-87 temperature impact test
6.GJB367.2-87 405 temperature impact test
GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
7.Touch screen controller, friendly Man-Machine interface and
safety device to ensure simple operation and easy maintenance.
Standards Implemented and met
Specifications
| Model | ESS-LL | |
| Working Chamber Volume(L) | 408 | |
| Temp Rate of Change( ℃/Min) | 5 | 10 |
| Performance | -70℃~+100℃ | |
| Rapid Temp Change -55℃~+85℃ Full Linear Control | ||
| Temp. Constancy | ±0.5℃ | |
| Temp. Uniformity | ±3.0℃ | |
| Insulation Material | Rigid Polyurethane Foam | |
| Safety Devices | over pressure , over heat and over current protection for compressor,over temp. protection, | |
| Compressor | Semi-Hermetic Compressor | |
| Cooling Mode | Water Cooled | |
| Control system | Balanced Temperature & Humidity Control System(BTC type) | |
| Heater | Iron-chrome wire heater | |
| Blower | Centrifugal Blower | |
| Observation Window | Glass incorporating heat generator | |
| Temp Sensor | Pt-100 | |
| Controller | Touch screen programmable controller | |
| Ambient Temp. | +5℃~+35℃ | |
| Power |
AC 380V/50Hz 3phase 5 wires+ Ground wire
|
|
Material
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
After-Sales Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Packing
Packing Details The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special requirments.
