Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Years | Power Supply: | AC 3 Phase 380V 60/50Hz |
|---|---|---|---|
| Controller: | LCD Touch Screen Controller | Material: | Stainless Steel Plate |
| Controllor: | Touch Screen Programmable Controllor | Cooling Mode: | Water Cooled |
| High Light: | Environmental Stress Screening Chambers,Thermal Shock Test Chamber |
||

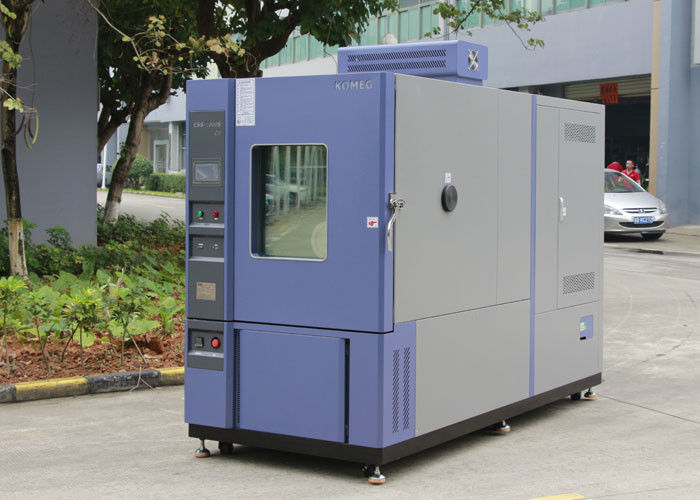

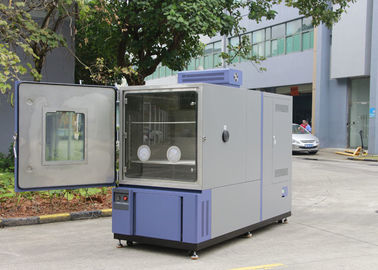

Industrial Performance Testing Rapid Temperature Change Chamber For Electronic Product
1. Application
Developed to help electronics manufacturers detect product defects and production flaws, Environmental Stress Screening forces infancy product failures that would otherwise occur after final assembly and product delivery. ESS Chambers’ goal is to improve profitability by eliminating defective products. ESS Systems can meet individual performance needs, product loading, and throughput requirements. KOMEG Technology has the experience to provide the best solution for ESS testing at your company.
2.Features
1. environmental test chamber for rapid temperature Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Standards Implemented and met
2.GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
3.Rational Construction and fast cooling rate
4.Frequency conversion control of wind speed.
5.Adopts international brand of imported parts for cooling system to improve operation reliability
6.Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
3. Specifications
| Model | ESS-SL |
| 1000L | |
| Working Chamber Volume(L) | 1000L |
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel |
| Interior Material | Stainless Steel Plate(SUS 304) |
| Insulation Material | Rigid Polyurethane Foam |
| Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, |
| Compressor | Semi-Hermetic Compressor |
| Cooling Mode | Water Cooled |
| Control system | Balanced Temperature & Humidity Control System(BTC type) |
| Heater | Iron-chrome wire heater |
| Blower | Centrifugal Blower |
| Observation Window | Glass incorporating heat generator |
| Temp Sensor | Pt-100 |
| Controller | Touch screen programmable controller |
| Ambient Temp. | +5ºC~+35ºC |
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |
4. After-Sales Service
1.If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
2.We can offer operation video and English operation muanual.
3.We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
4.Product performance warranty.
