Product Details:
Payment & Shipping Terms:
|
| Interior Material: | SUS#304 Stainless Steel Plate | Controller: | LED Touchscreen 7 Inch |
|---|---|---|---|
| Humidity Uniformity: | ±3.0% Or ±5.0% | Humidity Range: | 10~98% |
| Temperature Range: | -70 °C To 150/180 °C | Insulation: | Polyurethane Foam 100mm/75mm/50mm |
| Usage: | Auto Testing Machine | Temp. Uniformity: | ±2.0ºC |
| Humidity Constancy: | ±2.5％R.H | Ambient Temp.: | +5°C ～+35°C |
| High Light: | walk in humidity chamber,walk in climatic chamber |
||

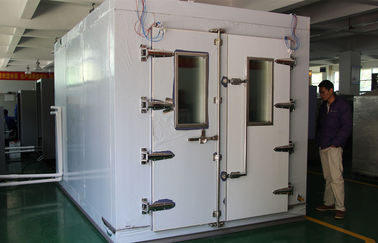

Large Testing Equipment Environmental Simulation Walk-In Climate Humidity Test Chamber
Product Application

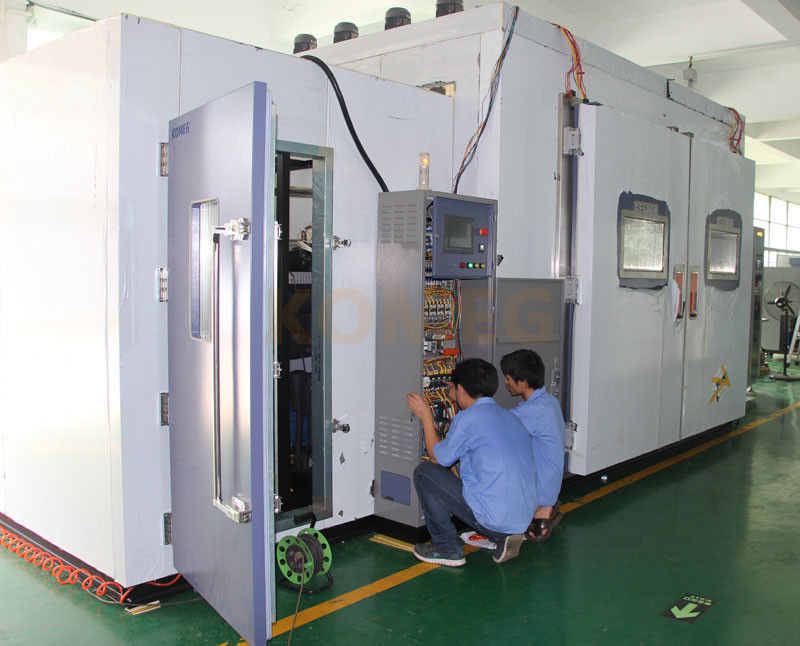

Walk-in climate humidity test room capable of testing large components, assemblies and finished products Thermotron's Walk-In chambers are able to simulate a wide range of temperature and humidity environments. These chambers can be used for testing and controlled storage as well as a versatile laboratory environment for conducting test procedures in the telecommunications, defense, aerospace, pharmaceutical, automotive and electronics industries.
2.Low maintenance
3.Durability
4.Ensures stability & reliability
5.Low wattage heaters
Environmental test chamber Standard
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 humid testing
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
B/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
B/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
Specifications
KMH-S series( -70°C ～150°C)
| Model | KMH-S series | |||||
| 150S | 225S | 408S | 800S | 1000S | ||
| Temp. range | -70°C ～150°C | |||||
| Interior sizel | W(mm) | 600(mm) | 700(mm) | 700(mm) | 1000(mm) | 1000(mm) |
| H(mm) | 600(mm) | 700(mm) | 750(mm) | 1000(mm) | 1000(mm) | |
| D(mm) | 460(mm) | 480(mm) | 800(mm) | 800(mm) | 1000(mm) | |
| Exterior size | W(mm) | 880(mm) | 980(mm) | 980(mm) | 1280(mm) | 1280(mm) |
| H(mm) | 1730(mm) | 1890(mm) | 1940(mm) | 2160(mm) | 2160(mm) | |
| D(mm) | 1400(mm) | 1460(mm) | 1740(mm) | 1750(mm) | 1950(mm) | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 280 | 330 | 450 | 550 | 650 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -70°C ～+100°C ,within 60 min | |||||
| Pull down time | +20°C ～-70°C , within 80 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
1. Horizontal spreading or vertical forced draught mode design may evenly control any temperature and humidity conditions.
2. The material is SUS#304 stainless steel.
3. Can display in Chinese or English
4. Safety standard is a redundant control circuit with its own controller and failsafe contactor.
5. The thermal equilibrium temperature humidity method.
Related Products
Besides walk-in climate room, our business range also covers:
Temperature humidity chamber, Thermal shock chamber, Temperature humidity control cabinet, Change rate temperature chamber, Ozone test chamber, Industrial hot air oven, Dustless hot oven, Salt spray chamber, Rain spray test chamber, Sand and dust chamber, Automatic glue dispensing machine, Climate and vibration combined chamber, Burn-in aging test room, Steam aging test chamber, Ventilation aging test chamber, Vibration tester, Tensile tester, Drop tester, etc.
FAQ
Q1: What is your Warranty service for the KOMEG machine/chamber?
A1: we offer 1 years warranty service. If any quality problems on our side occured in this period ,we will send you replacement and cover the cost of shipping and component parts.
Q2: What's your period and terms of delivery?
A2: Usually, it takes us 20 - 25 days after order confirmation to produce the equipment and a little bit longer for customization service. While if you are in urgent need, we can make special arrangement to speed up the proceedings. Then we start the shipped by sea, by air freight or by air express.
Q3: What’s your terms of payment?
A3: T/T, L/C and other payment terms are all acceptable.
Q4: Is it ok for customization service?
A4: Yes, inner chamber size, structure, color, other special parameters can be all customized as per your own specific request.
