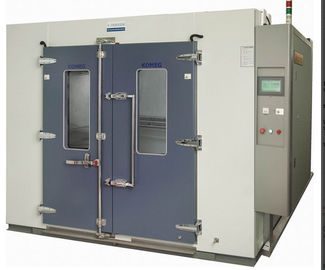

KMHW-21 43.3 Cubic Customized Walk In Climatic Chamber For Pharmaceutical / Automotive

China KOMEG Technology Ind Co., Limited certification
China KOMEG Technology Ind Co., Limited certification
Fast delivery and quality products.

—— Gozia

Friendly and pleasant cooperator, "I like the factory, I like the design, I like the workstyle"

—— Wagner

The design and quality impress me a lot.

—— Mr Yee

" A trustworthy supplier of climatic test chamber".

—— Denis

I'm Online Chat Now

KMHW-21 43.3 Cubic Customized Walk In Climatic Chamber For Pharmaceutical / Automotive

KMHW-21 43.3 Cubic Customized Walk In Climatic Chamber For Pharmaceutical / Automotive
KMHW-21 43.3 Cubic Customized Walk In Climatic Chamber For Pharmaceutical / Automotive
video play

Large Image :  KMHW-21 43.3 Cubic Customized Walk In Climatic Chamber For Pharmaceutical / Automotive

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE/ROHS/FCC/
Model Number: KMHW-21
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: By plywood case
Delivery Time: 30 work days upon deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 set per month
Detailed Product Description
Name: Drive-in Temperature / Humidity Test Chambers Door Size: Single Wing:W80*H180;Double Wing:W160*H180
Temp. Constancy: +/-0.5oc Humidity Constancy: +/-2.5%R.H
High Light:

walk in humidity chamber

,

walk in climatic chamber

KMHW-21 43.3 Cubic Customized Programmable Walk-in Environmental Test Chamber





1. Applications



Whether you're testing computers and copiers or automobiles and satellites, KOMEG's Walk-In Environmental Test Chambers provide solutions that work. Capable of testing large components, assemblies, and finished products, KOMEG's Walk-In chambers simulate a wide range of temperature and humidity environments. These chambers can be used for testing and controlled storage as well as a versatile laboratory environment for conducting test procedures in the telecommunications, defense, aerospace, pharmaceutical, automotive, and electronics industries.







2. Features



1) Stainless steel interior

2) Painted galvanized steel exterior for long life

3) MAP service doors are hinged (no tools or lifting)

4) Easy access to frequently checked refrigeration components

5) Reliable steam generator system for humidity applications

6) Adjustable vanes in supply grille allow directing of airflow as needed







3. Standard Implemented and Met:



Inspect standard: JJF-1101, GB/T 10592,GB/T 10586

Testing standards:

YD/T 2061, HB 7122.3, 6783.7, GJB 5382.7, GJB 150, GB/T 2423,5170.2,5170.5,5179.2, ASTM E512, NF EN 60068-2-38, CNS 12565,12566, KS C0227, KS C022







4. Parameters



Specification of Walk-In Chambers
Model KMHW-21
Volume(m³) 43.3CBM
Interior Dimensions W4800 x H2100 x D4300mm
Exterior Dimensions W5950 x H2350 x D4500mm
Safety Devices(standard) No fuse breaker, over pressure, over heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window x 1, cable port ( portΦ50mm ) x 1,chamber lamp x 1, status indicator
Control System Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )
Controller Panel 7-inch LCD Touch panel, Chinese or English display selectable
Operation model Program or fix point running
Memory capacity 120 programs,1200steps, all repeat 999 cycles, part repeat 99 cycles
Accuracy Temp.: 0.1% of F.S ±1 digit Humidity: 0.1% of F.S ±1 digit
Input Temp.: pt-100, Humidity: pt-100 or ~ 5V DCV
Comm.port RS-232 or RS-485 ( Softawre is option )
Temp. range

Maximum: 80 ºC,120 ºC;

Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC

Humidity Range 10%, 20%, 30% ~ 95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC ~ +35 ºC
Wiring method AC 380 ±10% 50Hz, 3 phase 4 wires + Ground Wires
Heat up time +20 ºC ~ +80 ºC, Within 60 min
Pull down time +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC,Within 120 or 90 or 60 min
Interior material Stainless Steel Plate ( SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing: W800*H1800; Double wing: W1600*H1800;
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available









4. Description



Flexibility for structure

The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.



Widest test range, most customizable



43.3 Cubic Customized Programmable Walk-in Environmental Test Chamber



43.3 Cubic Customized Programmable Walk-in Environmental Test Chamber
