Usage: | Thermal Shock Tester | Ambient Temperature: | 0°~30° |
---|---|---|---|
Test Chamber Volume: | To Be Custom | Safty Device: | Earth Leakage Circuit Breaker |
Control: | PID | Preheating Temperature: | 50.00°C~220.00°C |
Temperature Uniformity: | ±2.00°C | Test Method: | GB/T 5170.2-2008 |
Heating Rate: | ≥17℃/min | Cooling Rate: | ≥3.7℃/min |
High Light: | temperature shock test chamber,environmental testing chambers |
Cascade Refrigeration System Programmable Thermal Shock Test Chamber with Cooling Tower
Product Introduction:
Impact Thermal Shock Chamber Climatic Chamber can be used to test the structure of materials or to test the tolerance level of composite materials at the moment of extremely high temperature and extremely low temperature continuous environment to test its chemical changes or physical damages caused by heat-expansion and cold-contraction in the shortest possible time. The applicable materials include metal, plastic, rubber, electronics, and so on which can be used as a basis or reference for improving its products.
Features:
1. Perfect appearance and easy to operate.
2. Japan LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.

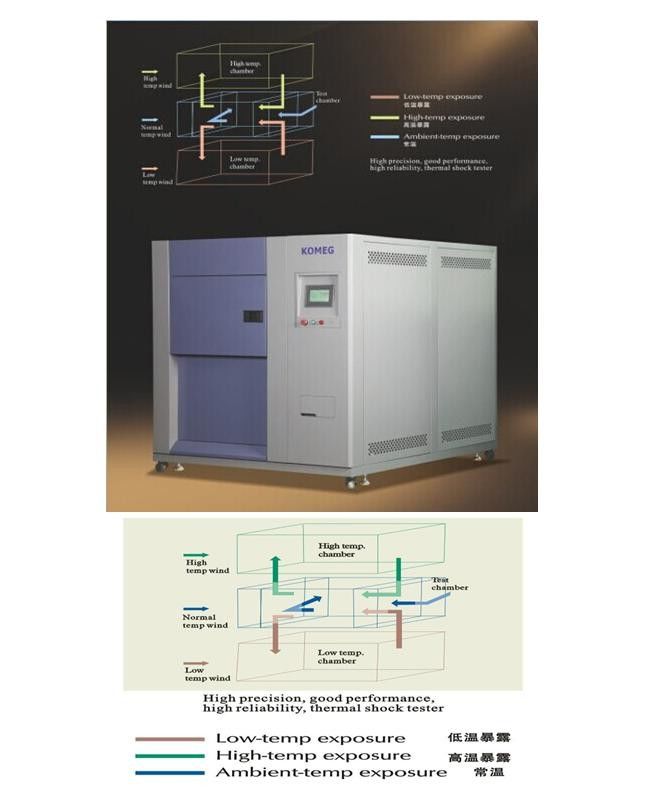

3. Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.
4. Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
5. Control interface will display alarm reason and provide check methods, machine has emergency stop button.
6. Cold and hot shock temperature recover within 5 minutes, which complies with MTL, IEC, JIS, GJB and other international standards.
7. With RS-232C communication port for connecting PC to control, record and save test report.
Specifications
(1) KTS-A Series
Model |
|
||||||||
72A | 100A | 150A | 200A | 252A | 300A | 480A | |||
Inside size(mm) | W | 450 | 500 | 600 | 670 | 700 | 800 | 800 | |
H | 400 | 450 | 500 | 600 | 600 | 600 | 800 | ||
D | 400 | 450 | 500 | 500 | 600 | 650 | 750 | ||
Outside size(mm) | W | 1490 | 1540 | 1640 | 1720 | 1750 | 1850 | 1850 | |
H | 1790 | 1840 | 1890 | 2000 | 2000 | 2000 | 2200 | ||
D | 1600 | 1700 | 1830 | 1850 | 1930 | 1980 | 2500 | ||
Test weight | 5 | 10 | 12 | 15 | 18 | 20 | 20 | ||
Low Temp Chamber | -55ºC~-10ºC, Pre cooling time: ≤ 60 min from +20ºCto-55ºC | ||||||||
Test Chamber | -40ºC~+150ºC | ||||||||
High Temp Chamber | +60ºC~+200ºC ,Within 20 min, Pre-heating time | ||||||||
Transition time | ≤15S | ||||||||
Recovery time | High-Temp Exposure 30 min to reach & stabilize required hot temp of test sample | ||||||||
Low-Temp Exposure 30 min to reach & stabilize required cold temp of test sample | |||||||||
≤ 5 min | |||||||||
Ambient Temp. | +5ºC~+35ºC | ||||||||
Power | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires |
(2) KTS-B Series
Model |
|
||||||||
72B | 100B | 150B | 200B | 252B | 300B | 480B | |||
Inside size(mm) | W | 450 | 500 | 600 | 670 | 700 | 800 | 800 | |
H | 400 | 450 | 500 | 600 | 600 | 600 | 800 |
D | 400 | 450 | 500 | 500 | 600 | 650 | 750 | |
Outside size(mm) | W | 1490 | 1540 | 1640 | 1720 | 1750 | 1850 | 1850 |
H | 1790 | 1840 | 1890 | 2000 | 2000 | 2000 | 2200 | |
D | 1600 | 1700 | 1830 | 1850 | 1930 | 1980 | 2500 | |
Test weight(KG) | 5 | 10 | 12 | 15 | 18 | 20 | 20 | |
Low Temp. chamber | -70ºC~-10ºC ,Pre cooling time: +20ºC~-70ºC ,≤ 60 min | |||||||
Test. Chamber | -55ºC~+150ºC | |||||||
High Temp. chamber temperature | +60ºC~+200ºC,Preheating time: ≤20 min | |||||||
Transition time | ≤15S | |||||||
Recovery time | High-Temp Exposure 30 min to reach & stabilize required hot temp of test sample | |||||||
Low-Temp Exposure 30 min to reach & stabilize required cold temp of test sample | ||||||||
≤ 5 min | ||||||||
Ambient Temp. | +5ºC~+35ºC | |||||||
Power | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires |
(3) KTS-D Series
Model |
|
||||||||
72D | 100D | 150D | 200D | 252D | 300D | 480D | |||
Inside size(mm) | W | 450 | 500 | 600 | 670 | 700 | 800 | 800 | |
H | 400 | 450 | 500 | 600 | 600 | 600 | 800 | ||
D | 400 | 450 | 500 | 500 | 600 | 650 | 750 | ||
Outside size(mm) | W | 1490 | 1540 | 1640 | 1720 | 1750 | 1850 | 1850 | |
H | 1790 | 1840 | 1890 | 2000 | 2000 | 2000 | 2200 | ||
D | 1600 | 1700 | 1830 | 1850 | 1930 | 1980 | 2500 | ||
Test weight | 5 | 10 | 12 | 15 | 18 | 20 | 20 | ||
Low Temp Chamber | -80ºC~-10ºC, Pre cooling time: ≤ 60 min from +20ºCto-80ºC |
Test Chamber | -65ºC~+150ºC |
High Temp Chamber | +60ºC~+200ºC ,Within 20 min, Pre-heating time |
Transition time | ≤15S |
Recovery time | High-Temp Exposure 30 min to reach & stabilize required hot temp of test sample |
Low-Temp Exposure 30 min to reach & stabilize required cold temp of test sample | |
≤ 5 min | |
Ambient Temp. | +5ºC~+35ºC |
Power | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires |
High temperature chamber:
Heater: NI-CR alloy electric heater
Draught fan: Share centrifugal fan when high temperature and do environmental temperature, preheating with axial flow fan.
Low temperature chamber:
Cooler: Fin cooler, regenerator
Draught fan: centrifugal fan
Drive device:
Pneumatic cylinder: Drive the air door of high, environmental, low temperature
Air compressor: Provide the compressed air for driving pneumatic door (supplied by buyer)
Refrigerating device:
Cooling method: mechanical compression refrigeration
Refrigeration compressor: Semi-closed piston
Refrigerant: R23/R404A
Condensation: Stainless steel welded plate heat exchanger
Controller:
Operate interface: 7" color LCD touch screen
Program memory capacity: 100 groups (modify by operator)
Setting range: Time: 1 minute ~ 99 hour 59 minute, cycles: 1~ 999 cycles
Resolution: temperature: 0.01 ℃; time: 1 minute
Input: T thermocouple
Control method: P.I.D control
Additional functions:
Timer, over temperature and power failure protection, alarm, record test curve, emergency stop, display test time
Circulated cooling water: pressure: 0.2~0.4MPa, temperature: ≤30℃
Standard configuration: indication lamp of test chamber, time meter, test hole for wire routing, 6pcs castor, 4pcs adjust wheel.
Safety devices:
Leakage and breaker, over temperature, low temperature protect device, exhaust valves, sample power control terminal, over temperature protection of high and low chamber, compressor over pressure, over heat protection, out of water relay, heat relay of fan, compressed air pressure switch, fuse, external alarm terminal
How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
