2 Zone Hot Cold Tempearature Thermal Shock Test Chamber With LCD Touch Screen

China 2 Zone Hot  Cold Tempearature Thermal Shock Test Chamber With LCD Touch Screen supplier
2 Zone Hot  Cold Tempearature Thermal Shock Test Chamber With LCD Touch Screen supplier 2 Zone Hot  Cold Tempearature Thermal Shock Test Chamber With LCD Touch Screen supplier 2 Zone Hot  Cold Tempearature Thermal Shock Test Chamber With LCD Touch Screen supplier 2 Zone Hot  Cold Tempearature Thermal Shock Test Chamber With LCD Touch Screen supplier

Large Image :  2 Zone Hot Cold Tempearature Thermal Shock Test Chamber With LCD Touch Screen

Product Details:

Place of Origin: China
Brand Name: komeg
Certification: Ce Approval
Model Number: 72A-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: foam and wooden box
Delivery Time: 30 days after confirm the sample
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs/day
Contact Now
Detailed Product Description
Exterior Material: Stainless Steel Plate Interior Material: SUS 304 Stainless Steel
High Temp Chamber: +60℃~+200℃ Low Temp Chamber: -55℃~10℃
Pre-heat Time: +60℃~+200℃ Within 25 Min Service: OEM Are Welcome



2 Zone Hot Cold Tempearature Thermal Shock Test Chamber With LCD Touch Screen



Applications



2-zone Thermal shock chamber have been designed to operate in accordance with reliability programs, quality control, commercial test programs and medical tests. It is used to test the capability of material structure or composite material to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for produce improvement.


Features



1.Thermal shork chamber in each zone for peak demand of heating and cooling. Provides extra thermal energy to efficiently meet the MIL-STD 883 requirements.
2.Temperature recorder provides 24 hour part temperature recording as the load travels from zone to zone. Using touch-control graph control as operation interface, easy to operate.
3.The system can be used for automatic Circulation Shock or manual selective shock, capable of setting two zones or three zones shocks as well as cold and thermal shock start-up.
4.Custom-made and optional accessories available.


Standards Implement and Met



GB/T 2443.1-2001 Test A: Low temp. Test;
GB/T 2443.2-2001 Test B: Low temp. Test;
GB/T 2443.22-2002 Test N: Low temp. Test;
GJB 150.3-1986 High Temp. Test;
GJB 150.4-1986 Low temp. Test;
GJB 150.5-1986 Temp. Impact Test;
(Load refer to 5.5.5 no active load)



Specification



model 72A 130A 226A 360A 500A
Interior size W(mm) 410 520 610 710 810
H(mm) 560 670 770 830 710
D(mm) 410 520 610 770 860
Basket size W(mm) 300 410 510 610 710
H(mm) 300 410 510 730 610
D(mm) 300 410 510 510 730
Test weight ( KG ) 5 5 5 5 10
Low Temp. chamber -55 °C~ -10°C
Pre-heat time +20 °C~ -55°C ,Within 60 min
Test. chamber -40 °C~ +150°C
High Temp. chamber +60 °C~ +200 °C
Pre-heat time +60°C~ +200°C ,Within 25 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Transfer time within 10 seconds
Safety device No fuse breaker, over pressure over heat and over current protection for compressor,
over temperature protection, over load protection for blower, dry heat protection
Standard accessory Cable port(portΦ50mm)*1, shelves*2
Interior material Stainless steel plate ( SUS 304 )
Exterior material Baked painting steel or stainless steel(SUS304)
Insulation material Rigid polyurethane Foam glass fiber wool
Refrigeration system Water Cooled
Semi-hermetic compressor, cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )
Controller Panel:7-inch LCD Touch panel , Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV
Ambient Temp. +5 °C~ +35 °C (41 ~ 95°F)
Power AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires
Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available

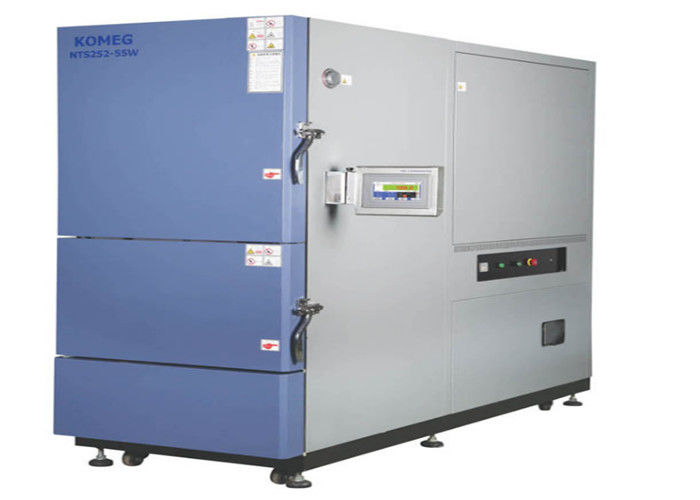

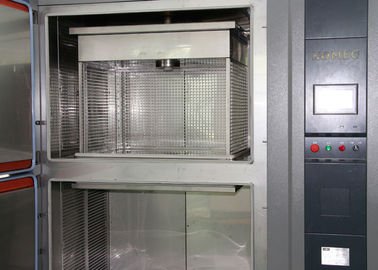

Photos show

2 Zone Hot  Cold Tempearature Thermal Shock Test Chamber With LCD Touch Screen



2 Zone Hot  Cold Tempearature Thermal Shock Test Chamber With LCD Touch Screen
