Customized Temperature and Humidity Walk-in Stability Chamber For Lab Equipment

Certification
Good quality Temperature Humidity Chamber for sales
Good quality Temperature Humidity Chamber for sales
Fast delivery and quality products.

—— Gozia

Friendly and pleasant cooperator, "I like the factory, I like the design, I like the workstyle"

—— Wagner

The design and quality impress me a lot.

—— Mr Yee

" A trustworthy supplier of climatic test chamber".

—— Denis

I'm Online Chat Now

Customized Temperature and Humidity Walk-in Stability Chamber For Lab Equipment

China Customized Temperature and Humidity Walk-in Stability Chamber For Lab Equipment supplier
Customized Temperature and Humidity Walk-in Stability Chamber For Lab Equipment supplier Customized Temperature and Humidity Walk-in Stability Chamber For Lab Equipment supplier

Large Image :  Customized Temperature and Humidity Walk-in Stability Chamber For Lab Equipment

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: KOMEG
Certification: CE/ROHS/FCC
Model Number: KMHW-6

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 35 working days after received your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Humidity Range: 10%,20%,30%~95% Temp. Constancy: ±0.5℃
Temp. Range: Maximum:80℃, 120℃; Minimum: -60℃, -50℃, -40℃, -30℃, -20℃, -10℃, 0℃ Humidity Constancy: ±2.5%R.H
Humidity Uniformity: ±5.0%R.H Application: Metal
Interior Chamber Material: SUS#304 Stainless Steel Plate Product Name: High Quality Walk In Environmental Chamber
Usage: Auto Testing Machine Power Supply: AC 3 Phase 380V 60/50Hz



Customized Temperature and Humidity Walk-in Stability Chamber For Lab Equipment





Walk-in temperature test chamber


Temperature and humidity testing rooms
New Express Program: Faster delivery for most typical walk-in chamber applications. The standardized build-to-order process bypasses engineering to shorten lead-time by a third.

KOMEG builds dozens of walk-in chambers every year for top companies testing automotive, electronics, communications, aerospace, and other products. Walk-in chambers for automobiles are one of our top specialties. Stability walk-in rooms are another specialty, designed for light-duty testing or long-term steady-state evaluation of pharmaceuticals and other products.

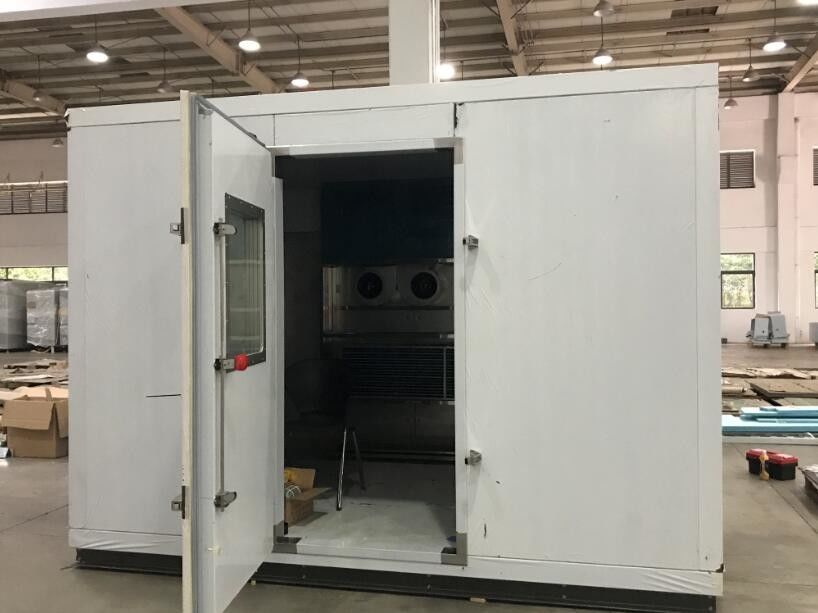

Walk-in Chamber/Room


Our walk-in chambers use urethane-foam panels that lock together with cam latches. This is the same construction used for walk-in coolers in restaurants and supermarkets, but of a higher quality. The panels we use have a stainless steel interior skin to be stronger and impervious to extreme conditions. The seams between panels are carefully sealed to protect from leaking that may affect performance or damage the panels. Doors and windows have embedded heaters, as well.



Temperature and Humidity Control


KOMEG has standard air conditioning systems, called Modular Air Plenums (MAP). These MAPs are designed with the proper heating, refrigeration, and humidity control to achieve your desired performance and capabilities. The MAP simply rolls-up to an assembled panel chamber to complete the installation.


Easy-to-use Controller


In addition, the Touch-screen controller makes running the full-color, touch-screen interface is remarkably easy to use and understand. The P-300 touch-screen controller can be managed remotely via our new Ethernet/LAN-based Web Controller, serial port, or GP-IB/Lab View. USB access is standard.





Parameters


● GB-2423.1-2008(IEC68-2-2) Test B: High Temperature Test

● GB-2423.1-2008(IEC68-2-2) Test B: Low Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Operating Life Test

● GBJl50.3-2009(MIL-STD-810D) High Temperature Test

● GBJl50.4-2009(MIL-STD-810D) High Temperature Test





Specification of Walk-In Chambers
Model KMHW-6
Volume(m³) 6CBM
Interior Dimensions W3000*H2100*D2050mm
Exterior Dimensions W4160*H2350*D2250mm
Safety Devices(standard) No fuse breaker, overpressure,overheat and over current protection for compressor,over-temperature protection, overload protection for the blower, dry heat protection
Standard accessories Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator
Control System Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single-stage or cascade refrigeration system,
CFC free refrigerant(HFC-507 and HFC-23)
Controller Panel 7-inch LCD Touch panel, Chinese or English display selectable
Operation model Program or fixpoint running
Memory capacity 120 programs,1200steps, all repeat 999 cycles, part repeat 99 cycles
Accuracy Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input Temp.:pt-100, Humidity:pt-100 or ~5V DCV
Comm.port RS-232 or RS-485 (Software is an option)
Temp. range Maximum:80 ºC,120 ºC;Minimum:-60 ºC,-50 ºC,-40 ºC,-30 ºC,-20 ºC,-10 ºC,0 ºC
Humidity Range 10%,20%,30%~95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC~+35 ºC
Wiring method AC 380±10% 50Hz,3 phase 4 wires +Ground Wires
Heat uptime +20 ºC~+80 ºC, Within 60 min
Pull downtime +20 ºC~-55 ºC, -40 ºC,-20 ºC,-10 ºC,Within 120 or 90 or 60 min
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing: W800*H1800; Double wing: W1600*H1800;
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available





Features


· PID controller

· Stainless steel interior (or galvanized for savings)

· Painted galvanized steel exterior for long life

· Easy access to components

· Reliable steam generator system for humidity applications

· Sheathed electric heaters for safety and reliability

· Adjustable vanes in supply grille allow directing of airflow as needed





Description


Most popular walk-in type

  1. Standard sub-assemblies for quick delivery and low cost
  2. High-quality panels manufactured to KOMEG standards.
  3. Standard multi-layer heated window indoor(s)
  4. Operation allowable to 120°C(75°C in humidity mode )
  5. Temperature change rates to 10°C/m.



Services:



1, Pre-sales service



Before the purchase, our company will provide customers with detailed product-related information, and welcome you to visit the company and check the goods.



2, After-sales service



After the completion of the transaction, our company will be arranged different after-sales service according to the ease of the goods, and even arrange work engineers on-site service.



3, the Warranty period



Our product warranty is 12 months and we are committed to responding within 48 hours of the problem, providing a solution.





Flexibility for structure


The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades, access ports, and other modifications are possible.





FAQ:



Q1, Are you a manufacturer?


Yes, we are a manufacturer. You are welcome to visit our factory and check every step which we are manufacturing Environmental test chambers.


Q2, If we order a big test chamber from you, how should we install it at our side?



We offer the service of on-site installation and training for you.


Q3, Excellent after-sale service:


Free parts warranty for 12 months, we can offer support via email, telephone, Skype,.etc.On-site technical support can be available with charges paid by the customer.


Q4, Good Packaging:


The chamber will be covered with air bubble film before putting into a wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency, etc.



Customized Temperature and Humidity Walk-in Stability Chamber For Lab Equipment



Customized Temperature and Humidity Walk-in Stability Chamber For Lab Equipment



KOMEG Walk-in Chamber- Products.pdf
