| High Temp Chamber: | +60℃ ～200℃ | Low Temp Chamber: | -55℃ ～-10℃ |
|---|---|---|---|
| Interior Material: | SUS 304 | Exterior Material: | Baked Painting Steel |
| Compressor: | Semi-Hermetic Compressor | Cooling Mode: | Water Cooled |
| High Light: | temperature shock test chamber,environmental testing chambers |
||
2 zones Themral Shock Test Equipment is used to test the bearing extent of the material structures and
composite material in an instant and continuous high temperature and extremely low temperature
environment, can used to test its thermal expansion and contraction caused by chemical change or physical
harm in the shortest time, are widely applied for metal, plastic, rubber, electronics and other materials and it
can be used as an important reference for improving product quality.
Specifications:
|
2 Zone Thermal Shock Test Chamber IN THE BLANKET:
|
||||||
|
Specifications
|
||||||
| Model |
TST-A Series
|
|||||
| 72A | 130A | 226A | 360A | 500A | ||
| Test weight(KG) | 410 | 520 | 610 | 710 | 810 | |
| Interior size | W(mm) | 560 | 670 | 770 | 830 | 710 |
| H(mm) | 410 | 520 | 610 | 770 | 860 | |
| D(mm) | 300 | 410 | 510 | 610 | 710 | |
| Basket size | W(mm) | 300 | 410 | 510 | 730 | 610 |
| H(mm) | 300 | 410 | 510 | 510 | 730 | |
| D(mm) | 5 | 5 | 5 | 5 | 10 | |
| Low Temp. chamber | -55 °C~ -10°C | |||||
| Pre-cooling time | +20 °C~ -55°C ,Within 60 min | |||||
| Test. chamber | -40 °C~ +150°C | |||||
| High Temp. chamber | +60 °C~ +200 °C | |||||
| Pre-heating time | +60°C~ +200°C ,Within 25 min | |||||
| Recovery time | High-Temp Exposure 30 min | |||||
| Low-Temp Exposure 30 min | ||||||
| Recovery time within 5 min | ||||||
| Safety device | within 10 seconds | |||||
| Standard accessory | No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection |
|||||
| Interior material | Cable port(portΦ50mm)*1, shelves*2 | |||||
| Exterior material | Stainless steel plate ( SUS 304 ) | |||||
| Insulation material | Baked painting steel or stainless steel(SUS304) | |||||
| Refrigeration system | Rigid polyurethane Foam glass fiber wool | |||||
| Water Cooled | ||||||
| Controller | Panel:7-inch LCD Touch panel , Chinese or English display selectable | |||||
| Operation model:Program or fix point running | ||||||
| Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles. |
||||||
| Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||
| Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV | ||||||
| Ambient Temp. | +5 °C~ +35 °C (41 ~ 95°F) | |||||
| Power | AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
||||||
| ALL THE MODEL OF THIS KIND PRODUCTS IN THE BLANKET: | ||||||
| Specifications | ||||||
| Model | TST B Series | |||||
| 72B | 130B | 226B | 360B | 500B | ||
| Test weight(KG) | 410 | 520 | 610 | 710 | 810 | |
| Interior size | W(mm) | 560 | 670 | 770 | 830 | 710 |
| H(mm) | 410 | 520 | 610 | 770 | 860 | |
| D(mm) | 300 | 410 | 510 | 610 | 710 | |
| Basket size | W(mm) | 300 | 410 | 510 | 730 | 610 |
| H(mm) | 300 | 410 | 510 | 510 | 730 | |
| D(mm) | 5 | 5 | 5 | 5 | 5 | |
| Low Temp. chamber | -70 °C~ -10°C | |||||
| Pre-cooling time | +20°C~ -70 °C ,Within 60 min | |||||
| Test. chamber | -55°C~ +150°C | |||||
| High Temp. chamber | +60 °C~ +200 °C | |||||
| Pre-heating time | +60°C~ +200°C ,Within 25 min | |||||
| Recovery time | High-Temp Exposure 30 min | |||||
| Low-Temp Exposure 30 min | ||||||
| Recovery time within 5 min | ||||||
| Safety device | within 10 seconds | |||||
| Standard accessory | No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |||||
| Interior material | Cable port(portΦ50mm)*1, shelves*2 | |||||
| Exterior material | Stainless steel plate ( SUS 304 ) | |||||
| Insulation material | Baked painting steel or stainless steel(SUS304) | |||||
| Refrigeration system | Rigid polyurethane Foam glass fiber wool | |||||
| Water Cooled | ||||||
| Controller | Panel:7-inch LCD Touch panel , Chinese or English display selectable | |||||
| Operation model:Program or fix point running | ||||||
| Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles. | ||||||
| Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||
| Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV | ||||||
| Ambient Temp. | +5 °C~ +35 °C (41 ~ 95°F) | |||||
| Power | AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
||||||
| ALL THE MODEL OF THIS KIND PRODUCTS IN THE BLANKET: | ||||||
| Specifications | ||||||
| Model | TST D Series | |||||
| 72D | 130D | 226D | 360D | 500D | ||
| Test weight(KG) | 410 | 520 | 610 | 710 | 810 | |
| Interior size | W(mm) | 560 | 670 | 770 | 830 | 710 |
| H(mm) | 410 | 520 | 610 | 770 | 860 | |
| D(mm) | 300 | 410 | 510 | 610 | 710 | |
| Basket size | W(mm) | 300 | 410 | 510 | 730 | 610 |
| H(mm) | 300 | 410 | 510 | 510 | 730 | |
| D(mm) | 5 | 5 | 5 | 5 | 10 | |
| Low Temp. chamber | -80 °C~ -10 °C | |||||
| Pre-cooling time | +20 °C~ -80°C ,Within 60 mins | |||||
| Test. chamber | -60°C~ +150 °C | |||||
| High Temp. chamber | +60 °C~ +200 °C | |||||
| Pre-heating time | +60°C~ +200°C ,Within 25 min | |||||
| Recovery time | High-Temp Exposure 30 min | |||||
| Low-Temp Exposure 30 min | ||||||
| Recovery time within 5 min | ||||||
| Safety device | within 10 seconds | |||||
| Standard accessory | No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |||||
| Interior material | Cable port(portΦ50mm)*1, shelves*2 | |||||
| Exterior material | Stainless steel plate ( SUS 304 ) | |||||
| Insulation material | Baked painting steel or stainless steel(SUS304) | |||||
| Refrigeration system | Rigid polyurethane Foam glass fiber wool | |||||
| Water Cooled | ||||||
| Controller | Panel:7-inch LCD Touch panel , Chinese or English display selectable | |||||
| Operation model:Program or fix point running | ||||||
| Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles. | ||||||
| Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||
| Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV | ||||||
| Ambient Temp. | +5 °C~ +35 °C (41 ~ 95°F) | |||||
| Power | AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
||||||
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150
Main features of Thermal test chamber:
Direct-drive system for reliable transfer between zones
Compact design with integrated mechanical refrigeration
Two specimen baskets
Includes caster and leveling pads for easy movement
Designed for performance with maximum load

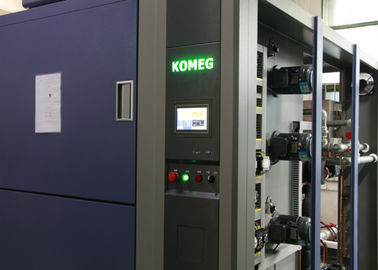

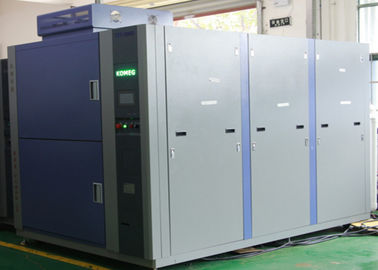

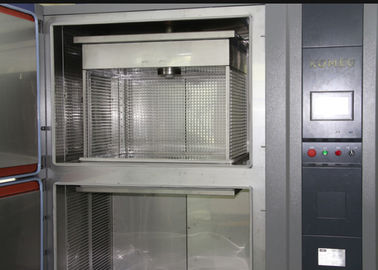

Photos show
