Vibration Test Simulated Transport For Automobile /Vibration Test Table For Car

China Vibration Test Simulated Transport For Automobile /Vibration Test Table For Car supplier
Vibration Test Simulated Transport For Automobile /Vibration Test Table For Car supplier Vibration Test Simulated Transport For Automobile /Vibration Test Table For Car supplier

Large Image :  Vibration Test Simulated Transport For Automobile /Vibration Test Table For Car

Product Details:

Place of Origin: China
Brand Name: komeg
Certification: CE
Model Number: KMH429

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs/day
Contact Now
Detailed Product Description
Speed: 100-300RPN Cir/min Speed Display Accuracy: 0.1RPN Cir/min
Amplitude(P-P): 1 Inches(25.4mm)+15%Meet ISTA/EN71 Transport Standards Digital Display Speed: Accuracy Is Not Greater Than ±3cir/min
Working Time Setting Range: 0~99.99hours Power Supply: 220V 50Hz Single-phase

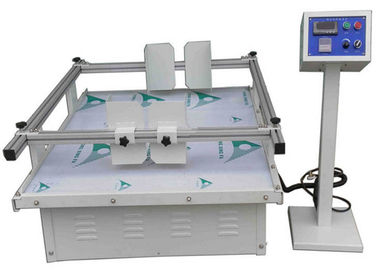

Vibration Test Simulated Transport For Automobile /Vibration Lab Test Table

Description:

is based on the United States and European transport standards, and with reference to the United States of similar equipment to improve manufacturing. The use of eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.

Technical Features:

1. Digital instrument display vibration frequency;
2. synchronous belt transmission mute, very low noise;
3. test items using clamping rail type, easy to operate, safe;
4. machine using heavy-duty channel steel base with anti-vibration pad, easy installation, smooth operation, without Install ground pin screw;
5. DC motor speed control, running smoothly, load capability;
6. rotary vibration (commonly known as Valley-type).

To meet the criteria:

This transportation simulator vibration machine meets the following standards: GB / T 4857.7-92 "transport package fixed-frequency sinusoidal vibration test method"

Applications Industry:

The country road transportation simulator vibration simulator applies to toys, electronics, furniture, gifts, ceramics, packaging and other products packaged to simulate the transport tests, in line with the United States and European transport standards.

Specification:

Speed 100-300RPN cir/min
Speed display accuracy 0.1RPN cir/min
Vibration mode Reciprocating type
Amplitude(P-P) 1 inches(25.4mm)+15%Meet ISTA/EN71 transport standards
Maximum payload 100 pounds
Effective Mesa(L*W)(cm) 100*110cm
Digital display speed Accuracy is not greater than ±3cir/min
Working time setting range 0~99.99hours
Motor power 1HP
Power supply 220V 50Hz Single-phase



Photos show

Vibration Test Simulated Transport For Automobile /Vibration Test Table For Car







We have professional packing workers to pack your products!





1. Out packing:Standard export wooden case; Inner packing:With careful stretch film+ hard cardboar;



2. Usually we send products by air, but we can also send as your requirements.

Vibration Test Simulated Transport For Automobile /Vibration Test Table For Car
