Product Details:
Payment & Shipping Terms:
|
Temp. Range: | Maximum: 80 ºC,120 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC | Humidity Range: | 20℃% ~98%℃ RH |
---|---|---|---|
Name: | Accelerated Aging Test Chamber | Exterior Material: | Baked Painting Steel |
Compressor: | Semi-Hermetic Compressor | Cooling Mode: | Water Cooled |
High Light: | walk in humidity chamber,walk in climatic chamber |
Technical specification
Model |
KMHW-4
|
Volume(m³) |
9CBM
|
Interior Dimensions | W2100 x H2100 x D2050mm |
Exterior Dimensions | W3250 x H2350 x D2250mm |
Safety Devices(standard) |
No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
|
Standard accessories | Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator |
Control System |
Balanced Temperature & Humidity Control System
|
Refrigeration system |

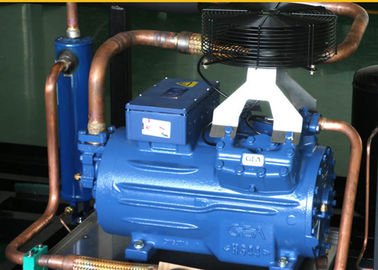

Water Cooled Semi-hermetic compressor, single stage or cascade refrigeration system, CFC free refrigerant ( HFC-507 and HFC-23 ) |
Controller |
Panel: 7-inch LCD Touch panel, Chinese or English display selectable Operation model : Program or fix point running Memory capacity:120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles |
Temp. range | Maximum: 80 ºC,120 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, |
Humidity Range |
10%, 20%, 30% ~ 95%
|
Temp. constancy |
±0.5 ºC
|
Humidity constancy | ±2.5%R.H |
Temp. uniformity |
±2.0 ºC
|
Humidity uniformity |
±5.0%R.H |
Other Specifications:
Cold Room Temperature |
Thickness of Cold Room Wall and Proof
|
5 - 15 Degree Celsius |
75mm
|
-15 - 5 Degree Celsius |
100mm
|
-20 - -15 Degree Celsius |
120mm
|
-30 - -20 Degree Celsius |
150mm
|
Lower than -30 Degree Celsius |
200mm |
Application

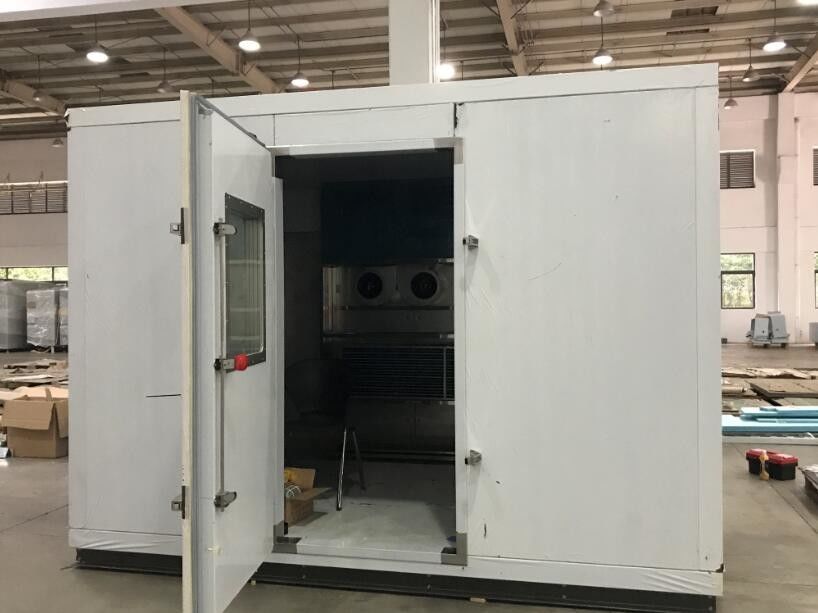

A KOMEG Walk-In Chamber serves as a test site for large components, assemblies, and finished
A Panel Walk-In Chamber is made from lightweight insulated panels for fast and easy installation. Usually for electronics temperature aging, like recharger, PCBA, Battery, LCD, scanners, monitors, LED, biological equipment, etc. Outside banding helps prevent leaking and keeps moisture out of the Walk-In Chamber and workspace temperatures steady.
Features 1:
Control method and characteristics:
Precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to make the system’s heating / humidification reduction, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.
Features 2:
Heat preservation material, we use high-intensity PU foam with flame retardant material and high density glass fiber cotton, which can assure high precise and better uniformity and avoid unnecessary energy loss. Meanwhile, our design can better assure personnel safety when operating a Walk-in Chamber.
2. Large glass window design, viewing angle in all directions, hollow electric plating film and anti-condensation design; built-in LED lights to facilitate the test sample state of real-time observation in the course of testing; double door design, the inner big glass door with hand-in holes for the convenient operating.
3. Material quality of inner box is SUS304 # mounted stainless steel imported, and outer box is steel plate and the paint process applies automobile coating technology. Box body is processed shape using Triumph processing machine, its shape is nice and neat.
4. Large-size Full Color LCD touchscreen displayer, simple operation, easy to edit programs. PID with automatic calculation function; self-diagnostic function, show failure message and failure shot solutions step by step.
5. An RS-232 and RS-485 communication interface, matching recorder, strong expandability. We also support remote control by PC via wifi or wire (recommended).
6. Standard Met and Implemented:
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method 6
GJB150.4-1986 test at low temperature
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
Photos show
