LCD Display Walk-in Chamber Auto Cast Test Equipment / Industrial Aging Test Burn In Room

China LCD Display Walk-in Chamber Auto Cast Test Equipment /  Industrial Aging Test Burn In Room supplier
LCD Display Walk-in Chamber Auto Cast Test Equipment /  Industrial Aging Test Burn In Room supplier LCD Display Walk-in Chamber Auto Cast Test Equipment /  Industrial Aging Test Burn In Room supplier LCD Display Walk-in Chamber Auto Cast Test Equipment /  Industrial Aging Test Burn In Room supplier LCD Display Walk-in Chamber Auto Cast Test Equipment /  Industrial Aging Test Burn In Room supplier

Large Image :  LCD Display Walk-in Chamber Auto Cast Test Equipment / Industrial Aging Test Burn In Room

Product Details:

Place of Origin: China
Brand Name: komeg
Certification: CE
Model Number: KMHW-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs/day
Contact Now
Detailed Product Description
Temp. Range: Maximum: 80 ºC,120 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC Humidity Range: 20℃% ~98%℃ RH
Interior Material: SUS 304 Exterior Material: Baked Painting Steel
Compressor: Semi-Hermetic Compressor Cooling Mode: Water Cooled

LCD Display Auto Cast Test Equipment / Industrial Aging Test Burn In Room


Application

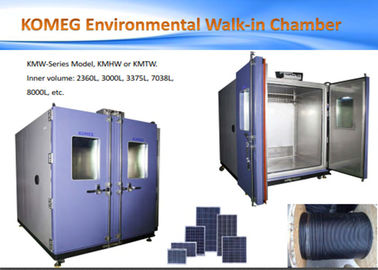

A KOMEG Walk-In Chamber serves as a test site for large components, assemblies, and finished products. KOMEG manufactures both Panel Walk-In Chambers and Solid Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.



A Panel Walk-In Chamber is made from lightweight insulated panels for fast and easy installation. Usually for electronics temperature aging, like recharger, PCBA, Battery, LCD, scanners, monitors, LED, biological equipment, etc. Outside banding helps prevent leaking and keeps moisture out of the Walk-In Chamber and workspace temperatures steady.



Solid Walk-In Chambers are custom built to accommodate almost any size. They feature welded walls creating an environmental room for applications requiring controlled temperature and humidity testing exceeding 85°C. Typically, for ease of installation, a Solid Walk-In Chamber works best in new construction buildings, areas with extremely large doors, or rooms where outside walls can be easily removed.



Features 1:



Control method and characteristics:

Precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to make the system’s heating / humidification reduction, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.





Features 2:

Heat preservation material, we use high-intensity PU foam with flame retardant material and high density glass fiber cotton, which can assure high precise and better uniformity and avoid unnecessary energy loss. Meanwhile, our design can better assure personnel safety when operating a Walk-in Chamber.



Specifications:



Cold Room Temperature

Thickness of Cold Room Wall and Proof

5 - 15 Degree Celsius

75mm

-15 - 5 Degree Celsius

100mm

-20 - -15 Degree Celsius

120mm

-30 - -20 Degree Celsius

150mm

Lower than -30 Degree Celsius

200mm



2. Large glass window design, viewing angle in all directions, hollow electric plating film and anti-condensation design; built-in LED lights to facilitate the test sample state of real-time observation in the course of testing; double door design, the inner big glass door with hand-in holes for the convenient operating.



3. Material quality of inner box is SUS304 # mounted stainless steel imported, and outer box is steel plate and the paint process applies automobile coating technology. Box body is processed shape using Triumph processing machine, its shape is nice and neat.



4. Large-size Full Color LCD touchscreen displayer, simple operation, easy to edit programs. PID with automatic calculation function; self-diagnostic function, show failure message and failure shot solutions step by step.



5. An RS-232 and RS-485 communication interface, matching recorder, strong expandability. We also support remote control by PC via wifi or wire (recommended).



Technical specification



Model

KMHW-4

Volume(m³)

9CBM

Interior Dimensions

W2100 x H2100 x D2050mm

Exterior Dimensions

W3250 x H2350 x D2250mm

Safety Devices(standard)

No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection

Standard accessories

Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator

Control System

Balanced Temperature & Humidity Control System

Refrigeration system

Water Cooled

Semi-hermetic compressor, single stage or cascade refrigeration system,

CFC free refrigerant ( HFC-507 and HFC-23 )

Controller

Panel: 7-inch LCD Touch panel, Chinese or English display selectable

Operation model : Program or fix point running

Memory capacity:120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles

Temp. range

Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC

Humidity Range

10%, 20%, 30% ~ 95%

Temp. constancy

±0.5 ºC

Humidity constancy

±2.5%R.H

Temp. uniformity

±2.0 ºC

Humidity uniformity

±5.0%R.H



Standard Met and Implemented:



GB/Bb T2423.2-89 high temperature test method

GB2423.1-89 test A: low temperature test method 6

GJB150.4-1986 test at low temperature

IEC60068-2-1 low temperature test method

IEC60068-2-38 temperature cycle

IEC60068-2-78 constant humidity temperature



Packaging:


Chambers are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.


Company introduction:



Since 1990, manufacturers of custom environmental chambers and standard environmental chambers, Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude chambers, temperature chambers, temperature and humidity chambers, environmental test chamber manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in chambers, laboratory test chambers, environment test rooms.

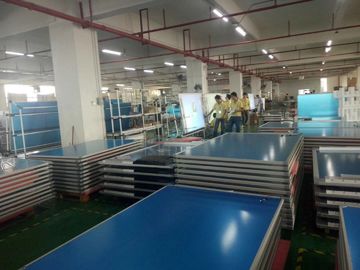

Photos show



LCD Display Walk-in Chamber Auto Cast Test Equipment /  Industrial Aging Test Burn In Room



Packing

LCD Display Walk-in Chamber Auto Cast Test Equipment /  Industrial Aging Test Burn In Room
