15CBM Low Noise Constant Humidity Temperature Walk-In Chamber For Monitors Scanners

15CBM Low Noise Constant Humidity  Temperature  Walk-In Chamber  For Monitors Scanners
15CBM Low Noise Constant Humidity  Temperature  Walk-In Chamber  For Monitors Scanners
video play

Large Image :  15CBM Low Noise Constant Humidity Temperature Walk-In Chamber For Monitors Scanners

Product Details:
Place of Origin: China
Brand Name: komeg
Certification: CE
Model Number: KMHW-15A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs/day
Detailed Product Description
Interior Size: W2500XH3000XD2000mm Humidity Uniformity: 3.0%RH (no-load)
Interior Material: SUS 304 Standard Accessories: Sight Window*1, Cable Port ( PortΦ50mm ) *1, Chamber Lamp*1, Status Indicator
Accuracy: Temp.:0.1% Of F.S ± 1 Digit Humidity:0.1% Of F.S ± 1 Digit Packing: PP Film Wrapping
High Light:

walk in environmental chamber

,

walk in climatic chamber


15CBM Low Noise Constant Humidity Temperature Walk-In Chamber For Monitors Scanners



Application:


The walk-in constant temperature and humidity test chamber is suitable for aerospace products, information electronic instruments and meters, materials, electricians, electronic products, and various electronic vitality components in the high-low temperature or moist heat environment, and to inspect its performance index.


Specification

Model

KMHW-15



Volume(m³)

15CBM



Interior Dimensions

W2500XH3000XD2000Mm



Safety Devices(standard)

No fuse breaker, over pressure, over heat and over current



protection for compressor, over temperature protection, over load



protection for blower, dry heat protection

Standard accessories

Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1,



status indicator

Control System

Balanced Temperature & Humidity Control System



Refrigeration system

Water Cooled





Semi-hermetic compressor, single stage or cascade refrigeration system,





CFC free refrigerant ( HFC-507 and HFC-23 )



Controller Panel

7-inch LCD Touch panel, Chinese or English display selectable



  Operation model

Program or fix point running



  Memory capacity

120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles



  Accuracy

Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit



  Input

Temp.: pt-100, Humidity: pt-100 or ~5V DCV



  Comm.port

RS-232 or RS-485 ( Softawre is option)



Temp. range

Maximum: 80 ºC,120 ºC;


Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC



Humidity Range

10%, 20%, 30% ~ 95%



Temp. constancy

±0.5 ºC



Humidity constancy

±2.5%R.H



Temp. uniformity

±2.0 ºC



Humidity uniformity

±5.0%R.H



Ambient Temp.

+5 ºC~+35 ºC



Wiring method

AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires



Heat up time

+20 ºC~+80 ºC, Within 60 min



Pull down time

+20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min



Interior material

Stainless Steel Plate(SUS 304)



Exterior material

Baked Painting Steel Or Stainless steel ( SUS304)



Insulation material

Rigid polyurethane foam



Door size (mm)

Single wing: W800 x H1800; Double wing: W1600 x H1800;





Feathers:

1. The shell of walk-in constant temperature and humidity test chamber is made of high quality stainless

steel (SUS#304) CNC machine tool.



2, The use of imported high-grade stainless steel (SUS304) mirror panels. 3,Insulation material: high-density glass fiber cotton. Insulation thickness is 100mm



4, Temperature and humidity cycle system: the use of special air-conditioning low noise long-axis fan motor, high temperature resistant stainless steel multi-wing impeller,

Intensity convection vertical diffusion cycle



5. Double-layer high-temperature high-strength sealing strip is used between the door and the box to ensure the sealing of the test area



6, The use of non-reverse door handle, easier operation


7. The bottom of the walk-in constant temperature and humidity test chamber adopts high-quality fixed PU movable wheels.



8. The observation window is made of multi-layer hollow tempered glass, and the inner gluing sheet type conductive film is heated and defrosted (clear observation test process)



9, test hole (left side of the machine) can be connected to the test power cord or signal

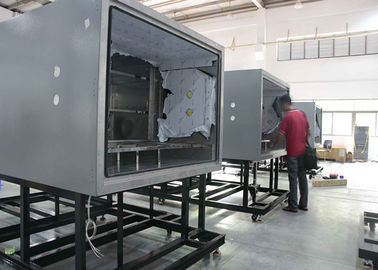

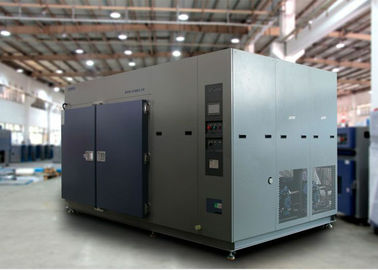

Photos show

15CBM Low Noise Constant Humidity  Temperature  Walk-In Chamber  For Monitors Scanners 0
