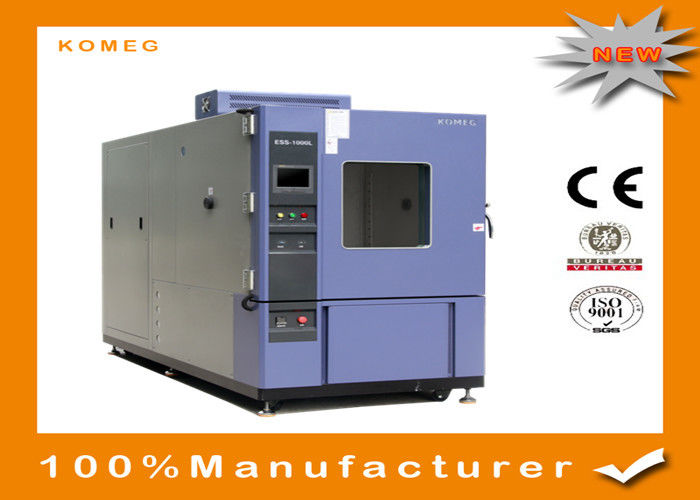

Programmable Altitude Test Chamber High Low Temperature For Cell Phone

China Programmable Altitude Test Chamber High Low Temperature For Cell Phone supplier
Programmable Altitude Test Chamber High Low Temperature For Cell Phone supplier Programmable Altitude Test Chamber High Low Temperature For Cell Phone supplier

Large Image :  Programmable Altitude Test Chamber High Low Temperature For Cell Phone

Product Details:

Place of Origin: China
Brand Name: komeg
Certification: CE
Model Number: ES1000L

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs/day
Contact Now
Detailed Product Description
Heating: High Quality Nickel-chromium Alloy Wire Electric Heaters, Non-contact Control Mode(SSR) Humidity Uniformity: 3.0%RH (no-load)
Interior Material: SUS 304 Heat Up Rate: From -70℃ ↑ +180℃ Average 20℃/min No Load .(According To IEC60068-3 Standard )
Humidity Deviation: ±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) Packing: Rigid Foam And Wooden Box


Programmable Altitude Test Chamber High Low Temperature For Cell Phone

OEM and ODM are welcome

Description :


High-precision microcomputer control thermostat system, PID control, the system of heating and weight reduction to achieve low energy consumption, energy saving, carbon reduction effect. Heating electronic intelligent control that can be long-term stable use.


Application :

High and low temperature altitude test chamber is used to test the effects of specified environmental conditions on biological items, industrial products, materials, and electronic devices and components, also help evaluate product quality and reliability, and identify manufacturing flaws and weaknesses.




Feathers



● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test

● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test

● GJBl50.3-2009(MIL-STD-810D) High Temperature Test

● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test





Specification



Capacity(L) 1000L

Temperature range

S : -70℃ ~ +150℃

L:-40℃ ~ +150℃

R: -20℃ ~ +150℃

Temp Deviation

≦ ± 2.0℃

Temp Fluctuation

±0.5℃

Heat up rate

From -70℃ ↑ +180℃ Average 20℃/min No load .(According to IEC60068-3 Standard )

Humidity range

20%R.H~98%R.H

Cooling rate

From +180℃ down to -70℃ Average 20℃/min No load .(According to IEC60068-3 Standard)



Humidity uniformity

3.0%RH (no-load)

Load

Product calorific value 1000w

Humidifier

Water basin heating and humidification method;

Stainless steel sheathed heater;

Heater control: no-contact control (SSR);

Water level control device, heater anti-dry device



Main Material List imported from famous brand



Name

Brand

Compressor

French Tecumseh

Oil separator

American Emerson, ALCO, Temprite

Plate heat exchanger

GEA, Xingsuneng, Guoxing

press switch

Denmark DANFOSS, Saginomiya

Condenser

Guangzhou Yongqiang, Klean Air

Evaporator

Yongqiang

Dry filter

Denmark DANFOSS, USA SPORLAN

Capillary tube

KOMEG

Expansion valve

Denmark DANFOSS, USA SPORLAN

Magnetic valve

Japan SAGLNOMLYA

or Nickideu /

Denmark DANFOS

Controller

KOMEG

Residual current circuit breaker

Taiwan SHIHLIN

No-fuse switch

French Schneider

AC contactor

Japan French Schneider





Competitive Advantage

1. Have 27 years experience on environmental chambers and standard environmental chambers, Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude chambers, temperature chambers, temperature and humidity chambers, environmental test chamber manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in chambers, laboratory test chambers, environment test rooms.

2. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.


3.  NO 1 BEST SELLER


KOMEG brand of temperature and humidity test chamber is the ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range. Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 150 °C and 10% to 98% RH.Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 150 °C with humidity.



For more detail information ,kindly contact : anna@komegtech.com  whats app ,wechat :+86-18098281986

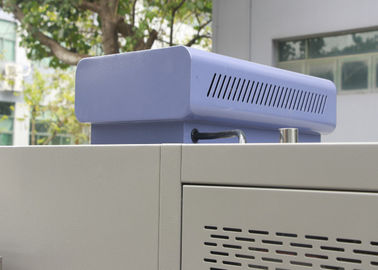

Photos show

Programmable Altitude Test Chamber High Low Temperature For Cell Phone
