Dismantled Assembly Panel Walk-In Climatic Chamber for Laboratory Reliability Testing

China Dismantled Assembly Panel Walk-In Climatic Chamber for Laboratory Reliability Testing supplier
Dismantled Assembly Panel Walk-In Climatic Chamber for Laboratory Reliability Testing supplier Dismantled Assembly Panel Walk-In Climatic Chamber for Laboratory Reliability Testing supplier

Large Image :  Dismantled Assembly Panel Walk-In Climatic Chamber for Laboratory Reliability Testing

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE/ROHS/FCC/
Model Number: KMHW-6

Payment & Shipping Terms:

Minimum Order Quantity: 1set Walk-In Climatic Chamber
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 42 working days after received your payment
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Product Name: Programmable Walk-in Test Chambers Application: Reliability Testing, Research & Development Testing, Failure Analysis
Volume(M3): 12.9CBM Temp. Constancy: +/-0.5oc
Humidity Constancy: +/-2.5%R.H H.S. Code: 90321000

Dismantled Assembly Panel Walk-In Climatic Chamber for Laboratory Reliability Testing

1. All Walk-in Room Systems



a. Operate continuously in cooling mode.

b. Provide a hot gas by-pass system to automate capacity reduction when the room is at the set point temperature.

c. Are constructed with high quality components including: liquid line solenoids, liquid sight glass, dryers, strainers, and TX valves.

d. Contain Bock semihermetic (or equal ) compressors.

e. Contain LED Touchscreen (or equal) controls.

f. Comply with ASHRAE guidelines for piping and rating.

g. Are factory-assembled and tested.

h. Are simple to maintain because components are easily accessible and clearly labeled.



Up to 5 HP units can be mounted on the roof of the walk-in room. Larger units are installed on the floor next to the room.



Comprehensive piping diagrams, schematics, and charging data are available for our environmental walk-in rooms.





2. Main Technical Parameters

Model KMHW-6
Volume(m³) 12.9CBM
Interior Dimensions W3000 x H2100 x D2050mm
Exterior Dimensions W4160 x H2350 x D2250mm
Safety Devices(standard) No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator
Control System Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )
Controller Panel 7-inch LCD Touch panel, Chinese or English display selectable
Operation model Program or fix point running
Memory capacity 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
Accuracy Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit
Input Temp.: pt-100, Humidity: pt-100 or ~5V DCV
Comm.port RS-232 or RS-485 ( Softawre is option)
Temp. range Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC
Humidity Range 10%, 20%, 30% ~ 95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC~+35 ºC
Wiring method AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires
Heat up time +20 ºC~+80 ºC, Within 60 min
Pull down time +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing: W800 x H1800; Double wing: W1600 x H1800;
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available







3. Walk-in Room Construction:




Rooms are constructed of Stainless Steel metal tongue and groove sectional panels. An assembled room has continuous steel perimeters to hold panels tightly in place.



Panel features include:

1) 100% insulation

2) Light weight for easy handling – average weight of the largest panel is 84 lbs.

3) Alignment pins for accurate fit.

4) Steel straps connect locking arms with locking pins on opposite sides of panels.

5) Cam-actuated locks ensure tight fits and accommodate frequent assembly / disassembly for relocating or enlarging the room.




4. Walk-in Room Show

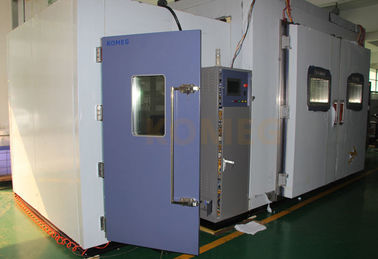

Installing the Walk-in room

Dismantled Assembly Panel Walk-In Climatic Chamber for Laboratory Reliability Testing

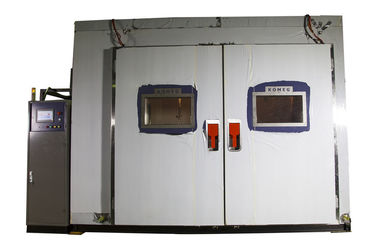

The Walk-in Room is in Running


Dismantled Assembly Panel Walk-In Climatic Chamber for Laboratory Reliability Testing
