Military Environmental Large Scale Aging Test Chamber Burn- In Test Rooms

China Military Environmental Large Scale Aging Test Chamber Burn- In Test Rooms supplier
Military Environmental Large Scale Aging Test Chamber Burn- In Test Rooms supplier Military Environmental Large Scale Aging Test Chamber Burn- In Test Rooms supplier

Large Image :  Military Environmental Large Scale Aging Test Chamber Burn- In Test Rooms

Product Details:

Place of Origin: China
Brand Name: Komeg
Certification: CE
Model Number: KMHW-12

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: rigid foam and wooden box
Delivery Time: 35 days after confirm the order
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 100pcs/day
Contact Now
Detailed Product Description
Maximum Sample Weight: 100kg Maximum Sample Size(mm: 1000*800*1000mm
Controller: Panel: 7-inch LCD Touch Panel, Chinese Or English Display Selectable Motor Power(KVA): 0.85
Exterior Size Of Tester(mm): 1700*1200*2500mm Applicable Standards: ISO02248-1972

High Temperature And Humidity Walk Burn-In Test Room For Power Supply Testing


For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18098281986


Technical Specification


Model

KMHW-12



Volume(m³)

12CBM



Interior Dimensions

W2100 x H2100 x D2050mm



Exterior Dimensions

W3250 x H2350 x D2250mm



Safety Devices(standard)

No fuse breaker, over pressure, over heat and over current protection for compressor,



over temperature protection, over load protection for blower, dry heat protection

Standard accessories

Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator



Control System

Balanced Temperature & Humidity Control System



Refrigeration system

Water Cooled


Semi-hermetic compressor, single stage or cascade refrigeration system,


CFC free refrigerant ( HFC-507 and HFC-23 )

Controller

Panel: 7-inch LCD Touch panel, Chinese or English display selectable


Operation model : Program or fix point running


Memory capacity:120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles



Temp. range

Maximum: 80 ºC,120 ºC;


Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC

Humidity Range

10%, 20%, 30% ~ 95%



Temp. constancy

±0.5 ºC



Humidity constancy

±2.5%R.H



Temp. uniformity

±2.0 ºC



Humidity uniformity

±5.0%R.H





Chamber structure


Insulation material

Glass wool

Heater

High quality nickel-chromium alloy wire electric heaters



Temperature Controller

ST-570 South Korea imported thermostat ST-570


*high precision(0.1%), high performance


*Support multiple input (T / C, RTD, DCV)


*Can finish multiple output and simultaneous output (Max 4 points)


*Simple parameter operation , available text settings


*Supports suppressing system Overshoot function


*Alarm output 1 point


Auxiliary output status operation screen displayed


*Each zone input adjustment function (Max 4 Zone)


To achieve control heating and cooling function


*PID automatic adjustment function (AT Gain)

*Supports multiple communication protocols (Modbus, etc.)


*To achieve high quality, high reliability (CE, CUL, ISO, etc.)

Temperature body

K thermoelectric

ventilator

Ventilator 1 type, displacement of 130 ~ 250m3 / h (from the exhaust fan to the duct



outside the laboratory to be handled by the customer)

Protection System

Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch.



Description


Walk- in test room is a common device used in all kinds of aging tests in electronic, computer and communicationindustries. Aging Room is normally composed of the enclosure structure, air duct system, control system, indoor test frame and other components.

Application


Suitable for all kinds of electronic products,expecially for products with heating characteristics
Product and loading area should be separated Large-scale production .

Feature

  • Design a comprehensive security control: adopt intelligent PID + SST/SCR is reverse the two way synchronization output, including the slope of the advanced control logic.
  •
  • The use of the imported large LCD display Chinese/English microcomputer controller, set the simple, strong function effect.
  •
  • A standard RS-232C communication interface devices.
  •
  • Flexible fixturing able to handle most device types.
  •
  • Modular construction enables easy maintenance.
  •
  • High quality instrumentation can be swapped out for periodic re-calibration.
  •
  • Accurate temperature control, high precision.

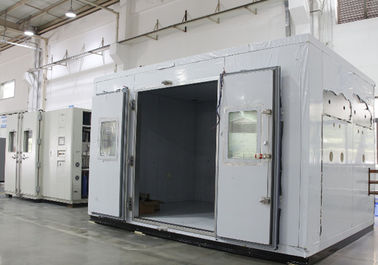

Photo show

Military Environmental Large Scale Aging Test Chamber Burn- In Test Rooms
