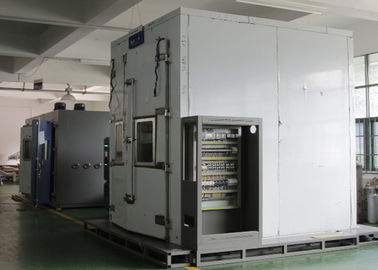

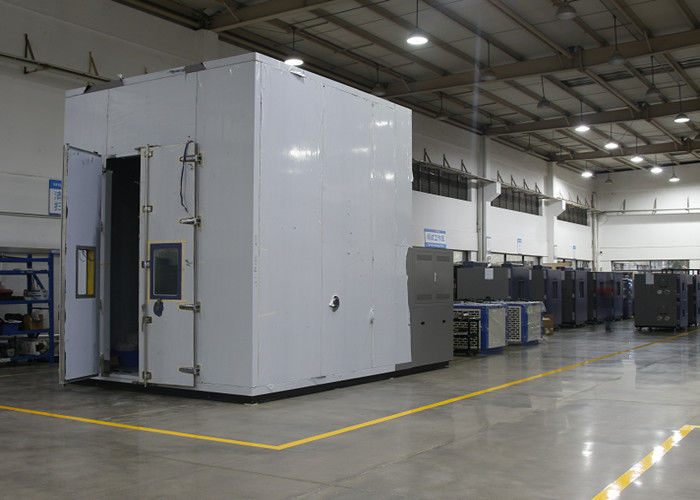

Large Scale Walk-In Chamber / Aging Test Chamber For Laboratory

KMHW-2360L


2360L


No fuse breaker, over pressure, over heat and over current protection for compressor,

over temperature protection, over load protection for blower, dry heat protection

Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator


Balanced Temperature & Humidity Control System


Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )

Panel: 7-inch LCD Touch panel, Chinese or English display selectable
Operation model : Program or fix point running
Memory capacity:120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles


Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC

10%, 20%, 30% ~ 95%


±0.5 ºC


±2.5%R.H


±2.0 ºC


±5.0%R.H


Insulation material

Glass wool

Heater

High quality nickel-chromium alloy wire electric heaters


Temperature Controller

ST-570 South Korea imported thermostat ST-570
*high precision(0.1%), high performance
*Support multiple input (T / C, RTD, DCV)
*Can finish multiple output and simultaneous output (Max 4 points)
*Simple parameter operation , available text settings
*Supports suppressing system Overshoot function
*Alarm output 1 point
Auxiliary output status operation screen displayed
*Each zone input adjustment function (Max 4 Zone)
To achieve control heating and cooling function
*PID automatic adjustment function (AT Gain)
(AT Gain)
*Supports multiple communication protocols (Modbus, etc.)
*To achieve high quality, high reliability (CE, CUL, ISO, etc.)

Temperature body

K thermoelectric


ventilator

Ventilator 1 type, displacement of 130 ~ 250m3 / h (from the exhaust fan to the duct

outside the laboratory to be handled by the customer)

Protection System

Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch.
