| High Temp Chamber: | +60 Oc~+200 Oc | Low Temp. Chamber: | (A)-55℃ ～-10℃,(B)-70 ℃c~-10 ℃,(D)-80℃ ～-10℃ |
|---|---|---|---|
| Interior Material: | SUS304 | Exterior Material: | Baked Painting Steel Or SUS304 |
| Ambient Temp: | +5℃~+35 ℃ | Test Weight: | 5kg,7.5kg,10kg,15kg |
| High Light: | temperature shock test chamber,environmental testing chambers |
||
High Low Ambient Temp Thermal Shock Test Chamber 3 Zones For Metal /
Plastic/Rubber/Electronics
Product Description
3 zones Themral Shock Test Equipment is used to test the bearing extent of the
material structures and composite material in an instant and continuous high
temperature and extremely low temperature environment, can used to test its
thermal expansion and contraction caused by chemical change or physical
harm in the shortest time, are widely applied for metal, plastic, rubber,
electronics and other materials and it can be used as an important reference
for improving product quality.
Product Features
1.Thermal shork chamber in each zone for peak demand of heating and
cooling. Provides extra thermal energy to efficiently meet the MIL-STD 883
requirements.
2.Temperature recorder provides 24 hour part temperature recording as the
load travels from zone to zone. Using touch-control graph control as operation
interface, easy to operate.
3.The system can be used for automatic Circulation Shock or manual selective
shock, capable of setting two zones or three zones shocks as well as cold
and thermal shock start-up.
4.Custom-made and optional accessories available.
Product Specifications
| Model | KTS- | ||||||
| 100A/B/D | 150A/B/D | 200A/B/D | 300A/B/D | 480A/B/D | |||
| Temp.range | High Temp.chamber | +60 ℃~+200 ℃ | |||||
| pre-heat time | +60 ℃~+200 ℃ Within 20 Min | ||||||
| Low Temp.chamber | (A) -55 ℃~-10 ℃, (B) -70 ℃~-10 ℃, (D) -80 ℃~-10 ℃ | ||||||
| pre-heat time | (A)+20 ℃~-55 ℃ Within 60 Min,(B)+20 ℃~-70℃ Within 60 Min,(D) +20℃~-70 ℃ Within 60 Min | ||||||
| Test.chamber | (A) -40 ℃~+150 ℃, (B) -55 ℃~+150 ℃, (D) -65℃~+150 ℃ | ||||||
| Recovery time | Exposure 30 min | ||||||
| Exposure 30 min | |||||||
| Within 5 min | |||||||
| Test weight(kg) | 5 | 5 | 7.5 | 10 | 15 | ||
| Inside Dimension (cm) | W | 50 | 60 | 65 | 80 | 80 | |
| H | 45 | 50 | 46 | 46 | 75 | ||
| D | 45 | 50 | 67 | 81.5 | 81.5 | ||
| Outer Dimension (cm) | W | 151 | 162 | 166 | 181 | 181 | |
| H | 198 | 215 | 198 | 198 | 227 | ||
| D | 202 | 230 | 230 | 235 | 235 | ||
| Interior material | Stainless Steel Plate(SUS304) | ||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
| Insulation material | Rigid polyurethane Foam+glass fibre wool | ||||||
| Refrigeration system | Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant | ||||||
| Controllor | Panel Operation model Memory capacity Accuracy Input Comm.port | LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option) | |||||
| Safety Devices | No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector. | ||||||
| Standard Accessories | Shelvesw*2,cable port(portØ50mm)*1 | ||||||
| Ambient Temp | +5℃~+35℃ | ||||||
| Power | AC380±10%50Hz 3phase 4 wires+Groud Wires | ||||||
Product Standards Implement and Met
GB/T 2443.1-2001 Test A: Low temp. Test;
GB/T 2443.2-2001 Test B: Low temp. Test;
GB/T 2443.22-2002 Test N: Low temp. Test;
GJB 150.3-1986 High Temp. Test;
GJB 150.4-1986 Low temp. Test;
GJB 150.5-1986 Temp. Impact Test;
(Load refer to 5.5.5 no active load)

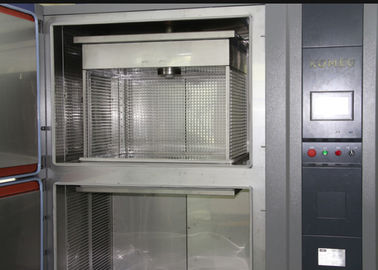

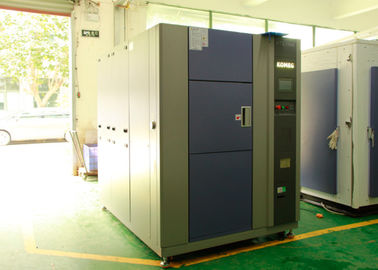

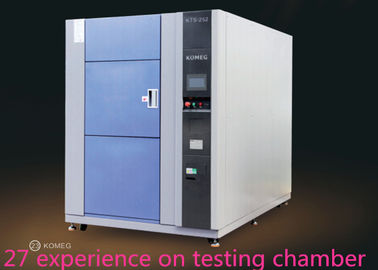

Product details
Photos show
Product Packaging
Each set protected with resin fiber and PP film, then put into strong wooden
case with operation mannual and video inside.
Product After-sale service
If you face any problems in future during testing process we promise we will
give you a reply within 48 hours and solution provide within 3 working days. We
can offer operation video and English operation muanual. We can provide
video-conference. If customers require on-site service, the transport and travel
expense shall be borne by customer.
