525L Lab Simulation Ambient Thermal Shock Stable Temp Humidity Cycling Test Chamber

China 525L Lab Simulation Ambient Thermal Shock Stable Temp Humidity Cycling Test Chamber supplier
525L Lab Simulation Ambient Thermal Shock Stable Temp Humidity Cycling Test Chamber supplier 525L Lab Simulation Ambient Thermal Shock Stable Temp Humidity Cycling Test Chamber supplier

Large Image :  525L Lab Simulation Ambient Thermal Shock Stable Temp Humidity Cycling Test Chamber

Product Details:

Place of Origin: China
Brand Name: komeg
Certification: CE
Model Number: KTS-525

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: foam and wooden box
Delivery Time: 35 days after order confirmed
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100pcs/day
Contact Now
Detailed Product Description
Interior Material: Stainless Steel Temp Range: +60℃- +200℃
Exterior Material: Baked Painting Steel Insulation Material: Rigid Poly Foam And Glass Fiber Wool
Controllor: Touch Screen Controller Refrigeration System: Air Cooled



Description :



525L Lab Simulation Ambient Thermal Shock Stable Temp Humidity Cycling Test Chamber



ODM and OEM are welcome



Specification:



Temperature range

High Temp chamber :+60℃ ~ +200℃



Low Temp chamber:A-55℃-10℃ Bstyle:-70-10℃ D style:-80-10

Temp Deviation ≦±2.0℃
Temp Fluctuation ±0.5℃
Pre-heat time From+60℃ up to +200℃ within 25min
Pull down rate

A style +20~ -50℃ within 60min



B style:+20~ -70℃ within 60min



D style:-65~ +150℃ within 60min

Door

Single door, left open. Heating wire was installed at the door frames to prevent



condensation at low temperatures

Observation window

With observation window(Specific size based on design )electric insulation coated glass

prevent condensation effectively

Lighting device

LED Lighting device *1 located on observation window



Cable port

Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover





Cooling system



Compressor

German Bock /Bizr hermetic compressor



Refrigerant Environmental-friendly refrigerant: R404A ,R23 comply with Environmental rules safe and non-toxic
Condenser

Shell and Tube condenser(Water -cooled)



Evaporator

Fin-type multi-stage automatic load capacity adjustment, No frost in long-term use of



low temperature and humidity conditions

Other accessories

Use internationally-known brand, such as high precise expansion valve, oil extractor,



dryer and many other accessories.

Refrigerant flow control Adjust energy consumption output and control automatically to the refrigeration system.
Refrigeration Technology

1.Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal



cooling system clean and reliable.



2.water tray located at the bottom of the compressor to ensure condensate water



through pipe freely at the rear of the chamber.

Sensor

High precision DIN class A, dry ball φ4.8mm SUS # 304 PT 100Ω





Main material list



Name Brand
Compressor TECUMSEH compressor
press switch Denmark DANFOSS, Saginomiya
Condenser Guangzhou Yongqiang,
Evaporator Yongqiang
Dry filter Denmark DANFOSS
Capillary tube KOMEG
Expansion valve Denmark DANFOSS
Magnetic valve

SAGLNOMLYA

or Nickideu /DANFOS

Controller KOMEG
AC contactor French Schneider
Phase sequence relay Carlo Gavazzi
Time relay Autonics
AC relay Omron
Solid-state relay Carlo Gavazzi




Application:



1.Shock chamber are widely used in testing various types of materials for their tolerances of heat, cold, dry and humidity.



2. It is applicable for quality inspection for all types of electronic products, electric appliance, and products from communication ,instruction , automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.



3. Unique shape with high performance material, whether you’re testing aerospace products, electronic instrumentation, materials, electrical and electronic products and various electronic components, our High low alternating temp. humidity test chamber can give you a perfect solution.



4.It ables to simulate a wide range of temperature and humidity environments, that temperatures ranging from -70°C to +150°C,and humidity range is from 10% to 98% RH. KOMEG can also offer you best solutions based on your own requirements.




For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18029096856

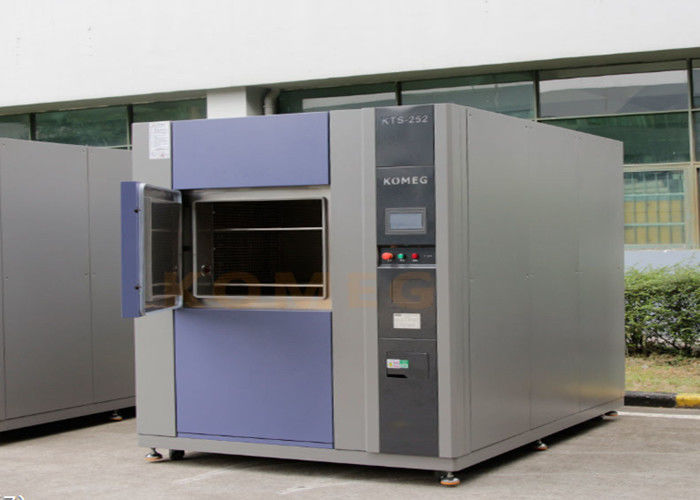

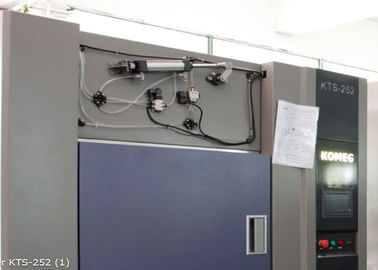

Photos show

525L Lab Simulation Ambient Thermal Shock Stable Temp Humidity Cycling Test Chamber
