2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber For Test Material TST-300D

2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber For Test Material TST-300D
2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber For Test Material TST-300D  2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber For Test Material TST-300D

Large Image :  2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber For Test Material TST-300D

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE
Model Number: TST-300D
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs/day
Detailed Product Description
Interior Material: SUS 304 Exterior Material: Baked Painting Steel
Compressor: Semi-Hermetic Compressor Insulation Material: Rigid Polyurethane Foam+glass Fibre Wool
Cooling Mode: Water Cooled Ambient Temp: +5℃ ~+35℃
High Light:

temperature shock test chamber

,

environmental testing chambers

2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber For Test Material TST-300D



Product Description



Thermal shock test is a method of environmental testing that subjects a product to alternating extremes



of high and low temperatures. Thermal shock testing allows for the observation of changes in product



characteristics and failure occurrence caused by different materials and their thermal expansion



coefficients. A thermal gradient difference in the different parts of the object expands by different



amounts and can cause cracking and failure. KOMEG brand thermal shock and thermal stress chambers



have been designed to operate in accordance with reliability programs, quality control, and commercial



test programs and military test.KOMEG offers several configurations of thermal shock chambers capable



of meeting a wide variety of testing needs.Vertical, two zone chamber has hot and cold zones that can be



controlled independently.Horizontal, three zone thermal shock chamber utilizes controlled areas for hot,



ambient and cold temperatures.Double duty thermal shock chambers from KOMEG are designed with hot



zones above and below the cold zone and a two compartment product carrier that simultaneously moves



products between the hot and cold zones.





Prouduct Features



Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing



Inner wall material:Stainless Steel Plate SUS304



Body insulation material:Rigid polyurethane Foam + glass fiber



Door insulation material:Rigid Polyurethane Foam + Glass fiber





Prouduct Specifications



Model TST-300D
Temp.range High Temp.chamber +60 ℃~+200 ℃
pre-heat time +60 ℃~+200 ℃ Within 20 Min
Low Temp.chamber (D) -80 ℃~-10 ℃
pre-heat time (D) +20℃~-70 ℃ Within 60 Min
Test.chamber (D) -65℃~+150 ℃
Recovery time Exposure 30 min
Exposure 30 min
Recovery time within 5 min
Test weight(kg) 15
Basket material (cm) W 80
H 61
D 81.5
Interior material Stainless Steel Plate(SUS304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fibre wool
Refrigeration system Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant
Controllor Panel Operation model Memory capacity Accuracy Input Comm.port 7'LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option)
Safety Devices No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector.
Standard Accessories Shelvesw*2,cable port(portØ50mm)*1
Ambient Temp +5℃~+35℃
Power AC380±10%50Hz 3phase 4 wires+Groud Wires





Standards Met and Implemented:


GB/T2423.1.2


GB10592-89


GJB150



Main features of Thermal test chamber:


Direct-drive system for reliable transfer between zones


Compact design with integrated mechanical refrigeration


Two specimen baskets


Includes caster and leveling pads for easy movement


Designed for performance with maximum load





Packaging:


2-zone Thermal Shock Test Chamber are covered with air bubble film before put them into the strong



plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has



the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.





Photos show

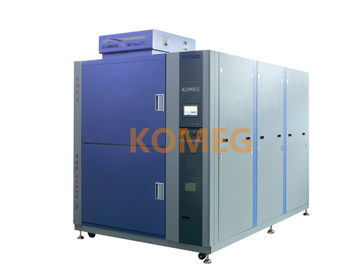

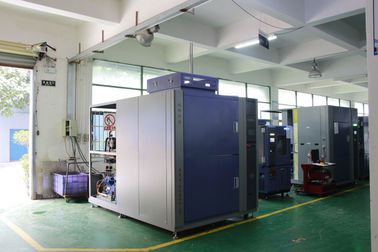

2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber For Test Material TST-300D  0



2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber For Test Material TST-300D  1







2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber For Test Material TST-300D  2





2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber For Test Material TST-300D  3
