Product Details:
Payment & Shipping Terms:
|
| Pre-heat Time: | 60°C To 200°C Within 20 Min | Pull Down Time: | - 80°C To -10°C |
|---|---|---|---|
| Ambient Temp: | +5°C To 35°C | Refrigeration System: | Water Cooled |
| Interior Material: | Stainless Steel Plate(SUS304) | Exterior Material: | Baked Painting Steel Or Stainless Steel(SUS304) |
| High Light: | thermal shock chamber,environmental testing chambers |
||
High Low Ambient Temp Thermal Shock Test Chamber 3 Zones For Metal / Plastic / Rubber / Electronics TST-252
Prouduct Applications
3-zone Thermal shock chamber have been designed to operate in accordance with reliability programs,
quality control, commercial test programs and medical tests. It is used to test the capability of material
structure or composite material to withstand the continuous environmental changes between extremely
high temperature and low temperature during a short period. It is applicable to metals, plastic, rubber,
electronics amongst other materials. The test result can be used as a reference or basis for produce
improvement.
Prouduct Features
1. Heat preservation material, we use high-intensity PU foam and high density glass fiber cotton, which
can assure high precise and better uniformity and avoid unnecessary energy loss. Meanwhile, our
design can better assure personnel safety when operating a Walk-in Chamber.
2. Inner wall and housing material:
For small standard models, generally use inner wall of stainless steel #304 1.0mm, housing of stainless
steel #304 1.2mm;
For bigger models, or some customized with special needs, we use inner wall of stainless steel #304
1.5 to 3.0mm, housing of stainless steel #304 over 1.5mm;
3. Material quality of inner box is SUS304 # mounted stainless steel imported, and outer box is steel plate
and the paint process applies automobile coating technology. Box body is processed shape using
Triumph processing machine, its shape is nice and neat.
4. Large-size Full Color LCD touchscreen displayer, simple operation, easy to edit programs. PID with
automatic calculation function; self-diagnostic function, show failure message and failure shot solutions
step by step.
5. An RS-232 and RS-485 communication interface, matching recorder, strong expandability. We also
support remote control by PC via wifi or wire (recommended).
During the whole test, test sample is no need to be moved, and without any human intervention.
Prouduct Specifications
| Model | TST--252 | ||||||
| Temp.range | High Temp.chamber | +60 ℃~+200 ℃ | |||||
| pre-heat time | +60 ℃~+200 ℃ Within 20 Min | ||||||
| Low Temp.chamber | (D) -80 ℃~-10 ℃ | ||||||
| pre-heat time | (D) +20℃~-70 ℃ Within 60 Min | ||||||
| Test.chamber | (D) -65℃~+150 ℃ | ||||||
| Recovery time | Exposure 30 min | ||||||
| Exposure 30 min | |||||||
| Recovery time within 5 min | |||||||
| Test weight(kg) | 8 | ||||||
| Basket material (cm) | W | 80 | |||||
| H | 41 | ||||||
| D | 61 | ||||||
| Interior material | Stainless Steel Plate(SUS304) | ||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
| Insulation material | Rigid polyurethane Foam+glass fibre wool | ||||||
| Refrigeration system | Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant | ||||||
| Controllor | Panel Operation model Memory capacity Accuracy Input Comm.port | 7'LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option) | |||||
| Safety Devices | No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector. | ||||||
| Standard Accessories | Shelvesw*2,cable port(portØ50mm)*1 | ||||||
| Ambient Temp | +5℃~+35℃ | ||||||
| Power | AC380±10%50Hz 3phase 4 wires+Groud Wires | ||||||
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150
FAQ:
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about
the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link
power in your lab, then can start to operate;
Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it;
Thirdly, some of customized chambers we should to install and teach your team to operate.

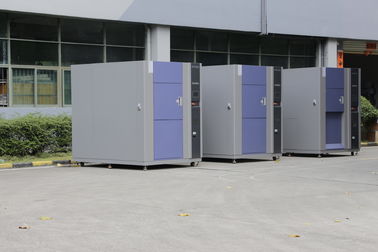

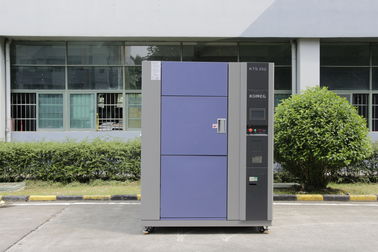

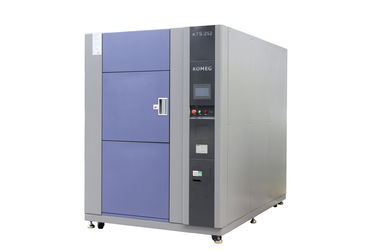

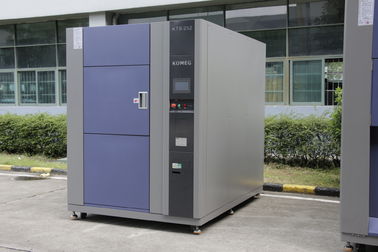

Prouduct Display
Packing and Shipment:
Pre-sales service
1) More than 20 years manufacturer experience and 8 years export experience.
KOMEG brand of temperature and humidity test chamber is the ideal simulation test chamber for all
heat and cold testing between -40 ºC and 180 ºC temperature range. Well-suited for reliability testing
based on current test standards in the temperature range of -40 °C to 150 °C and 10% to 98%
RH.Meet all requirements for extreme testing and low temperature alternating climate profiles from -70
°C - 150 °C with humidity.
