Pre-heat Time: | 60°C To 200°C Within 20 Min | Interior Material: | Stainless Steel Plate ( SUS304 ) |
---|---|---|---|
Exterior Material: | Baked Painting Steel Or Stainless Steel(SUS304) | Refrigeration System: | Water Cooled |
Ambient Temp: | +5°C To 35°C | Insulation Material: | Rigid Polyurethane Foam+glass Fibre Wool |
High Light: | thermal shock chamber,environmental testing chambers |
High Low Ambient Temp Thermal Shock Test Chamber 3 Zones For Metal / Plastic / Rubber /
Electronics TST-500D
Prouduct Applications
3-zone Thermal shock chamber have been designed to operate in accordance with reliability programs,
quality control, commercial test programs and medical tests. It is used to test the capability of material
structure or composite material to withstand the continuous environmental changes between extremely
high temperature and low temperature during a short period. It is applicable to metals, plastic, rubber,
electronics amongst other materials. The test result can be used as a reference or basis for produce
improvement.
Main features of Thermal test chamber:
Direct-drive system for reliable transfer between zones
Compact design with integrated mechanical refrigeration
Two specimen baskets
Includes caster and leveling pads for easy movement
Designed for performance with maximum load
Prouduct Specifications
Model | TST--500D | ||||||
Temp.range | High Temp.chamber | +60 ℃~+200 ℃ | |||||
pre-heat time | +60 ℃~+200 ℃ Within 20 Min | ||||||
Low Temp.chamber | (D) -80 ℃~-10 ℃ | ||||||
pre-heat time | (D) +20℃~-70 ℃ Within 60 Min | ||||||
Test.chamber | (D) -65℃~+150 ℃ | ||||||
Recovery time | Exposure 30 min | ||||||
Exposure 30 min | |||||||
Recovery time within 5 min | |||||||
Test weight(kg) | 20 | ||||||
Basket material (cm) | W | 100 | |||||
H | 50 | ||||||
D | 100 | ||||||
Interior material | Stainless Steel Plate(SUS304) | ||||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
Insulation material | Rigid polyurethane Foam+glass fibre wool | ||||||
Refrigeration system | Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant | ||||||
Controllor | Panel Operation model Memory capacity Accuracy Input Comm.port | 7'LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option) | |||||
Safety Devices | No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector. | ||||||
Standard Accessories | Shelvesw*2,cable port(portØ50mm)*1 | ||||||
Ambient Temp | +5℃~+35℃ | ||||||
Power | AC380±10%50Hz 3phase 4 wires+Groud Wires |
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150
FAQ:
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about
the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link
power in your lab, then can start to operate;
Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it;
Thirdly, some of customized chambers we should to install and teach your team to operate.

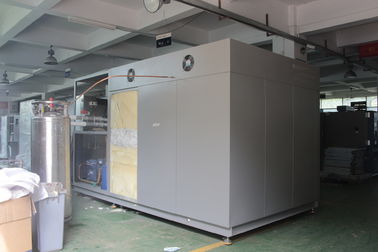

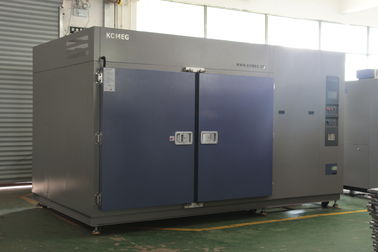

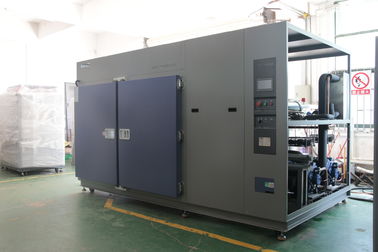

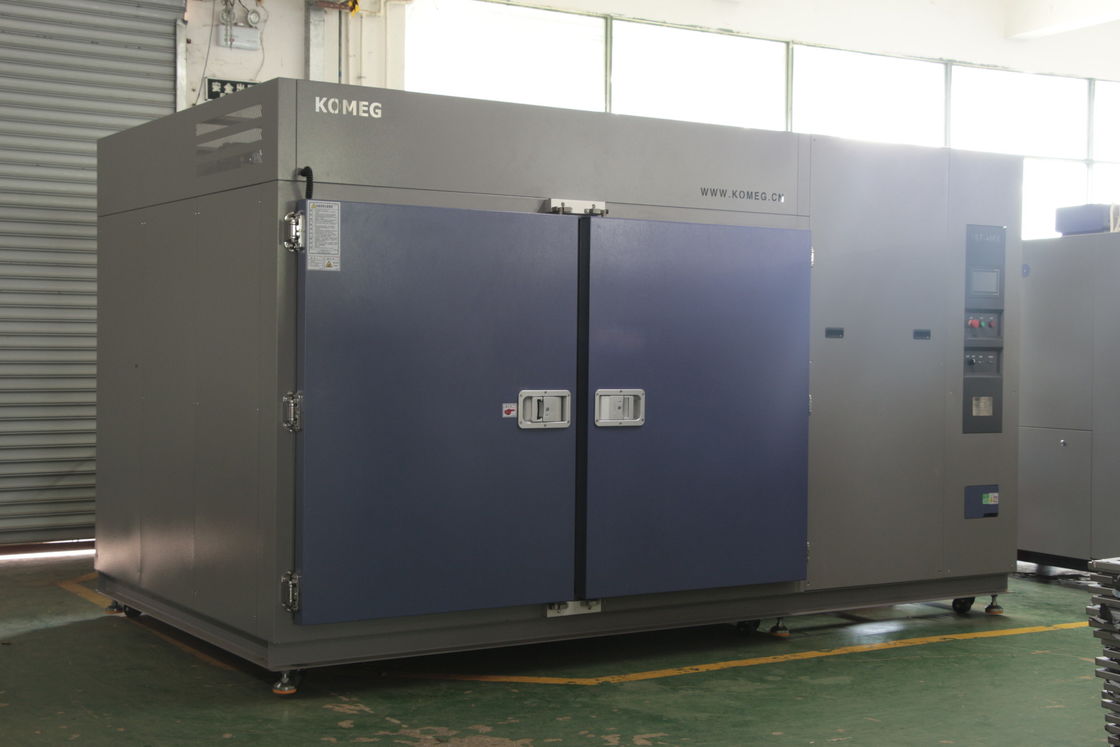

Prouduct Display
Packaging:
3-zone Thermal Shock Test Chamber are covered with air bubble film before put them into the strong
plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has
the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.
