Product Details:
Payment & Shipping Terms:
|
| Exterior Material: | Baked Painting Steel Or Stainless Steel(SUS304) | Interior Material: | Stainless Steel Plate(SUS304) |
|---|---|---|---|
| Insulation Material: | Rigid Polyurethane Foam+glass Fibre Wool | Power: | AC380±10%50Hz 3phase 4 Wires+Groud Wires |
| Cooling Mode: | Water Cooled | Ambient Temp: | +5℃ ~+35℃ |
| High Light: | thermal shock chamber,environmental testing chambers |
||
3Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber For Test Material
KTS-996B
Product Description
Prouduct Features
Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing
Inner wall material:Stainless Steel Plate SUS304
Body insulation material:Rigid polyurethane Foam + glass fiber
Door insulation material:Rigid Polyurethane Foam + Glass fiber
Prouduct Specifications
| Model | KTS-996B | ||||||
| Temp.range | High Temp.chamber | +60 ℃~+200 ℃ | |||||
| pre-heat time | +60 ℃~+200 ℃ Within 20 Min | ||||||
| Low Temp.chamber | (A) -55 ℃~-10 ℃, (B) -70 ℃~-10 ℃, (D) -80 ℃~-10 ℃ | ||||||
| pre-heat time | (A)+20 ℃~-55 ℃ Within 60 Min,(B)+20 ℃~-70℃ Within 60 Min,(D) +20℃~-70 ℃ Within 60 Min | ||||||
| Test.chamber | (A) -40 ℃~+150 ℃, (B) -55 ℃~+150 ℃, (D) -65℃~+150 ℃ | ||||||
| Recovery time | Exposure 30 min | ||||||
| Exposure 30 min | |||||||
| Within 5 min | |||||||
| Test weight(kg) | 30 | ||||||
| Inside Dimension (cm) | W | 160 | |||||
| H | 150 | ||||||
| D | 163 | ||||||
| Outer Dimension (cm) | W | 362 | |||||
| H | 454 | ||||||
| D | 470 | ||||||
| Interior material | Stainless Steel Plate(SUS304) | ||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
| Insulation material | Rigid polyurethane Foam+glass fibre wool | ||||||
| Refrigeration system | Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant | ||||||
| Controllor | Panel Operation model Memory capacity Accuracy Input Comm.port | LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option) | |||||
| Safety Devices | No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector. | ||||||
| Standard Accessories | Shelvesw*2,cable port(portØ50mm)*1 | ||||||
| Ambient Temp | +5℃~+35℃ | ||||||
| Power | AC380±10%50Hz 3phase 4 wires+Groud Wires | ||||||
Feathers
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.5-1986 Temperature Shock Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test

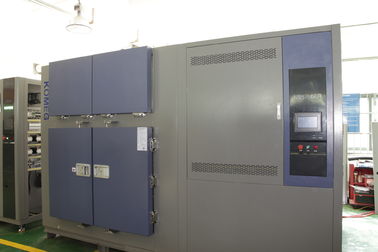

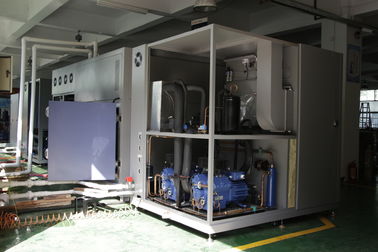

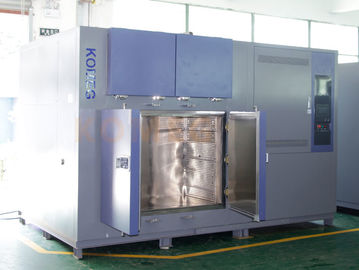

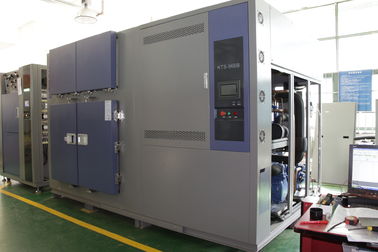

Prouduct Display
Packaging:
3-zone Thermal Shock Test Chamber are covered with air bubble film before put them into the strong
plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has
the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.
