|Temp Range:||+60℃- +200℃||Exterior Material:||Baked Painting Steel|
|Interior Material:||Stainless Steel||Insulation Material:||Rigid Poly Foam And Glass Fiber Wool|
|Controllor:||Touch Screen Controller||Refrigeration System:||Air Cooled|

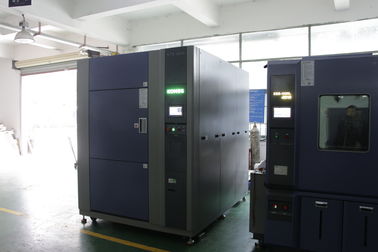

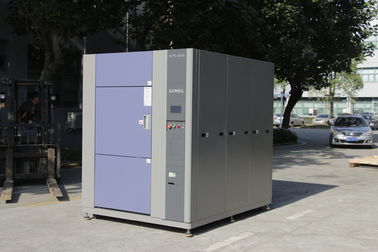

Thermal Shock Environmental Simulation Chamber / Temperature Stability Test Chamber KTS-480A
3-zone Thermal shock chamber have been designed to operate in accordance with reliability programs,
quality control, commercial test programs and medical tests. It is used to test the capability of material
structure or composite material to withstand the continuous environmental changes between extremely
high temperature and low temperature during a short period. It is applicable to metals, plastic, rubber,
electronics amongst other materials. The test result can be used as a reference or basis for produce
1.Thermal shork chamber in each zone for peak demand of heating and cooling. Provides extra thermal
energy to efficiently meet the MIL-STD 883 requirements.
2.Temperature recorder provides 24 hour part temperature recording as the load travels from zone to
zone. Using touch-control graph control as operation interface, easy to operate.
3.The system can be used for automatic Circulation Shock or manual selective shock, capable of setting
two zones or three zones shocks as well as cold and thermal shock start-up.
4.Custom-made and optional accessories available.
|Temp.range||High Temp.chamber||+60 ℃~+200 ℃|
|pre-heat time||+60 ℃~+200 ℃ Within 20 Min|
|Low Temp.chamber||(A) -55 ℃~-10 ℃, (B) -70 ℃~-10 ℃, (D) -80 ℃~-10 ℃|
|pre-heat time||(A)+20 ℃~-55 ℃ Within 60 Min,(B)+20 ℃~-70℃ Within 60 Min,(D) +20℃~-70 ℃ Within 60 Min|
|Test.chamber||(A) -40 ℃~+150 ℃, (B) -55 ℃~+150 ℃, (D) -65℃~+150 ℃|
|Recovery time||Exposure 30 min|
|Exposure 30 min|
|Within 5 min|
|Inside Dimension (cm)||W||80|
|Outer Dimension (cm)||W||181|
|Interior material||Stainless Steel Plate(SUS304)|
|Exterior material||Baked Painting Steel Or Stainless steel(SUS304)|
|Insulation material||Rigid polyurethane Foam+glass fibre wool|
|Refrigeration system||Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant|
|Controllor||Panel Operation model Memory capacity Accuracy Input Comm.port||LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option)|
|Safety Devices||No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector.|
|Standard Accessories||Shelvesw*2,cable port(portØ50mm)*1|
|Power||AC380±10%50Hz 3phase 4 wires+Groud Wires|
Standards Implement and Met
GB/T 2443.1-2001 Test A: Low temp. Test;
GB/T 2443.2-2001 Test B: Low temp. Test;
GB/T 2443.22-2002 Test N: Low temp. Test;
GJB 150.3-1986 High Temp. Test;
GJB 150.4-1986 Low temp. Test;
GJB 150.5-1986 Temp. Impact Test;
(Load refer to 5.5.5 no active load)
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months
for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by
email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare
parts or provide on-site repair.
2. What’s the delivery term?
At most of time, the delivery time is 20-35working days after deposit receipt. If you are in urgent need, we
can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is
to connect the power cable and start to use. And if possible, we can also install your machine at site.
