Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Altitude Simulation Test Chamber | Application: | Steady And Transient State Testing |
|---|---|---|---|
| Exterior Material: | Baked Painting Steel | Interior Material: | Stainless Steel |
| Temp Range: | -70℃ ～ +100℃ | Pressure Range: | Constant Voltage~0.5kPa |
| High Light: | high altitude chamber,portable altitude chamber |
||
KU2300L Programmable High Low Temperature Test Chamber For Air Pressure Testing
Prouduct Applications
High Altitude Simulation Test Chambers test for the instruments and meters, electrical products,
materials, spare parts, equipments, etc at a low pressure, high temperature, low temperature, under the
effect of single factor or multiple factors at the same time. Simulation of high-altitude conditions like might
be found in mountainous regions. Test for electric performance parameters of the specimen. Mainly used
in aviation, aerospace, information, electronics and other industries.
Prouduct Features
● Temperature range from -70 to 170℃
● Altitude range ground to 100,000 feet
● External pressure type box body structure and stainless steel tank design, rational air circulation
system and scientific layout of heating, refrigerating system.
● Adopts international brand of imported parts for cooling system to improve operation reliability
● High precision and stable performance with touch screen controller, friendly Man-Machine interface.
● Multiple layers of safety device to easy maintenance.
● Viewing window and cable ports available
● Vacuum pump sized for climb/dive rate required by application
Prouduct Specifications
| Model | KU-2300S | ||||
| Inner Size (D*W*H)mm | W261*H239*D266 | ||||
| Performance | Temp range | -70℃～+150℃ | |||
| Temp constancy | ±0.5％ | ||||
| Temp deviation | ≥100℃, ±3.0℃(at constant pressure with empty load) | ||||
| ＜100℃, ±2.0℃(at constant pressure with empty load) | |||||
| Cooling rate | 0.7℃～1.0℃/min(Overall average) | ||||
| Pressure range | Constant pressure ～1kPa | ||||
| Pressure constancy | When ≥40kPa, ±2kPa, 4kPa～40pKa ±0.5kPa, when≤4kPa, ±0.1kPa | ||||
| Depressurization rate | Constant pressure～1kPa≤30mins(Normal temp) | ||||
| Pressure recovery rate | 10kPa/Min(adjustable) | ||||
| Material | Exterior material | Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate | |||
| Interior material | Stainless steel(SUS304) | ||||
| Pressurized parts | High quality steel plate(Rust proof & Plastic spray treated) | ||||
| Insulation material | High quality glass wool | ||||
| Cooling System | Compressor | Semi-Hermetic Compressor | |||
| Cooling Mode | Water cooled | ||||
| Temp regulating method | Balanced Temperature & Humidity Control System (BTHC) | ||||
| Pump | Rotary vane type vacuum pump | ||||
| Heater | Iron-chrome wire heater | ||||
| Sight window | Circular viewing glass incorporating heat generator | ||||
| Temp Sensor | Pt-100 | ||||
| Controller | Touch Screen Controller | ||||
| Safety Devices | Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm | ||||
| Standard Accessory | Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2 | ||||
| Power | AC380V/50Hz, 3Phase 5 wires+ Ground Wire. | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||
Main Features of our high altitude test chamber:
1. 5.6" LCD touch screen color controller, Korea Samvontech brand.
2. 120 patterns*1200 steps, circulation Setting: Max. 9999 cycles.
3. PID+SSR / SCR controller.
4. RS-232 / RS-485 / USB / Ethernet / RJ45 communication interface.
5. Pressure range: atmosphere pressure to 0.5KPa
6. Inner cable port of 50mm/100 mm can meet the requiremnt of power- on test for user's product.
7. SUS#304 stainless steel plate inner chamber.
8.1 year free parts warranty, extended warranty is also available.
Environmental test chamber Standard

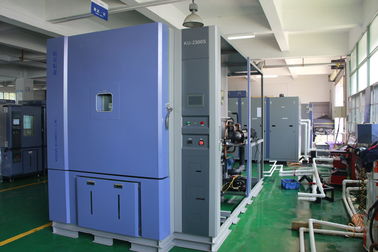

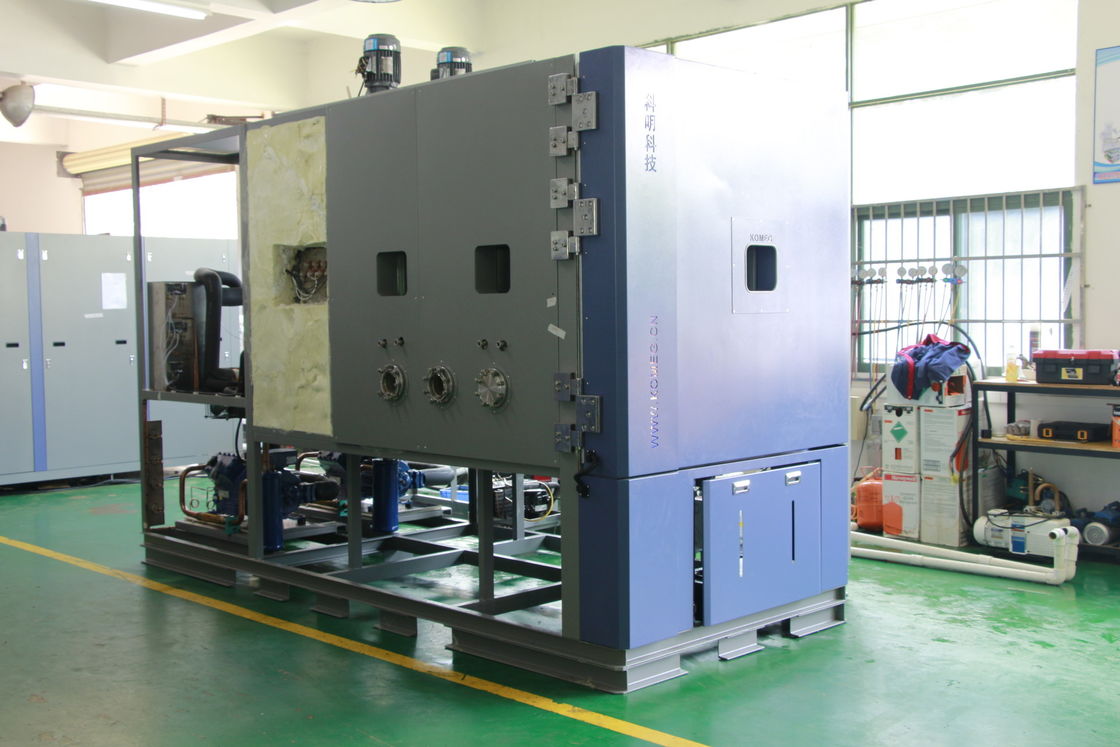

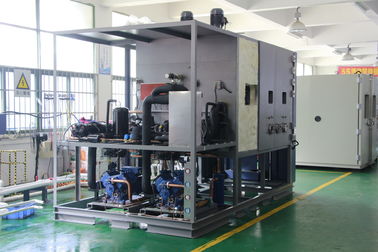

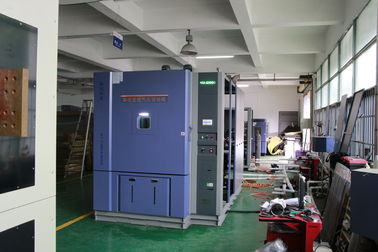

Prouduct Display
Packing and Shipment:
After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48
hours and solution provide within 3 working days. We can offer operation video and English operation
muanual. We can provide video-conference. If customers require on-site service, the transport and travel
expense shall be borne by customer.
