High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance

China High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance supplier
High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance supplier High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance supplier High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance supplier

Large Image :  High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance

Product Details:

Place of Origin: China
Brand Name: komeg
Certification: CE
Model Number: KTS-100A/B/D

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: foam and wooden box
Delivery Time: 35 days after order confirmed
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100pcs/day
Contact Now
Detailed Product Description
Interior Material: Stainless Steel Ambient Temp: +5℃ ~ +35℃
Exterior Material: Baked Painting Steel Insulation Material: Rigid Poly Foam And Glass Fiber Wool
Controllor: Touch Screen Controller Refrigeration System: Air Cooled



Description :



High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance



ODM and OEM are welcome



Specification:


High Temp chamber +60℃ ~ +200℃
Temp Deviation ≦±2.0℃
Temp Fluctuation ±0.5℃
pre heat time

From +60℃ up to  200℃ within 20 min



pre-cool time

+20~ -55℃ within 60min (A style )

From+20~ -70℃ within 60min (B style)

 From+20~ -70℃ within 60min (D style)

Ambient temp

+5℃ ~ +35℃



Inside Dimension

W50XH45XD45cm



Outer Dimension

W151XH198XD202cm



Cable port

Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover

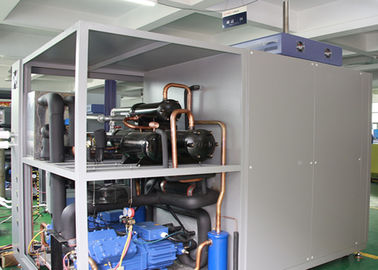

Cooling system



Compressor

German Bock /Bizr hermetic compressor



Refrigerant

Environmental-friendly refrigerant: R404A ,R23 comply with Environmental rules safe and non-toxic



Condenser

Shell and Tube condenser(Water -cooled)



Evaporator

Fin-type multi-stage automatic load capacity adjustment, No frost in long-term use of



low temperature and humidity conditions

Other accessories

Use internationally-known brand, such as high precise expansion valve, oil extractor,



dryer and many other accessories.

Refrigerant flow control Adjust energy consumption output and control automatically to the refrigeration system.
Refrigeration Technology

1.Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal



cooling system clean and reliable.



2.water tray located at the bottom of the compressor to ensure condensate water



through pipe freely at the rear of the chamber.

Sensor

High precision DIN class A, dry ball φ4.8mm SUS # 304 PT 100Ω





Application:



1.Temperature Humidity Test chamber are widely used in testing various types of materials for their tolerances of heat, cold, dry and humidity.



2. It is applicable for quality inspection for all types of electronic products, electric appliance, and products from communication ,instruction , automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.



3. Unique shape with high performance material, whether you’re testing aerospace products, electronic instrumentation, materials, electrical and electronic products and various electronic components, our High low alternating temp. humidity test chamber can give you a perfect solution.




For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18029096856

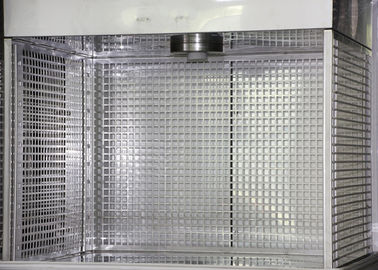

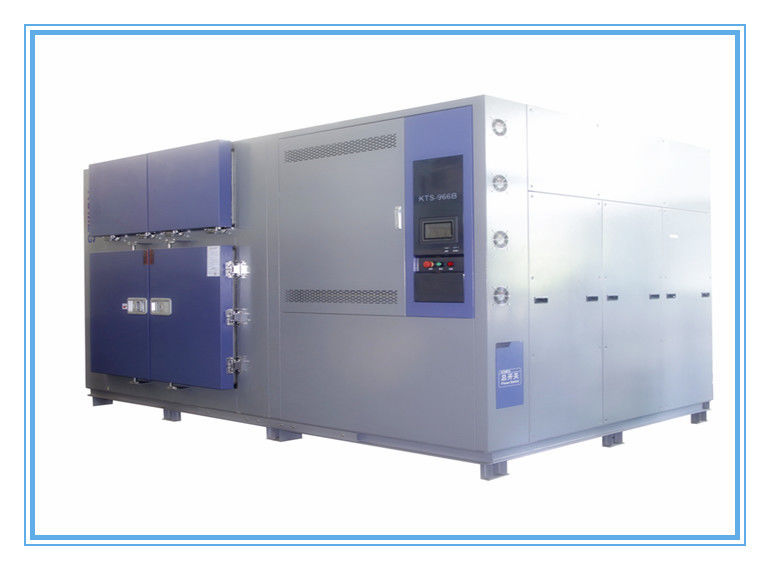

Photos show



High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance
