|Interior Material:||Stainless Steel Plate(SUS304)||Exterior Material:||Baked Painting Steel Or Stainless Steel(SUS304)|
|Refrigeration System:||Water Cooled||High Temp Chamber:||+60°C ~+200°C|
|Ambient Temp:||+5°C To 35°C||Heater:||Open Wire Electric Heater|

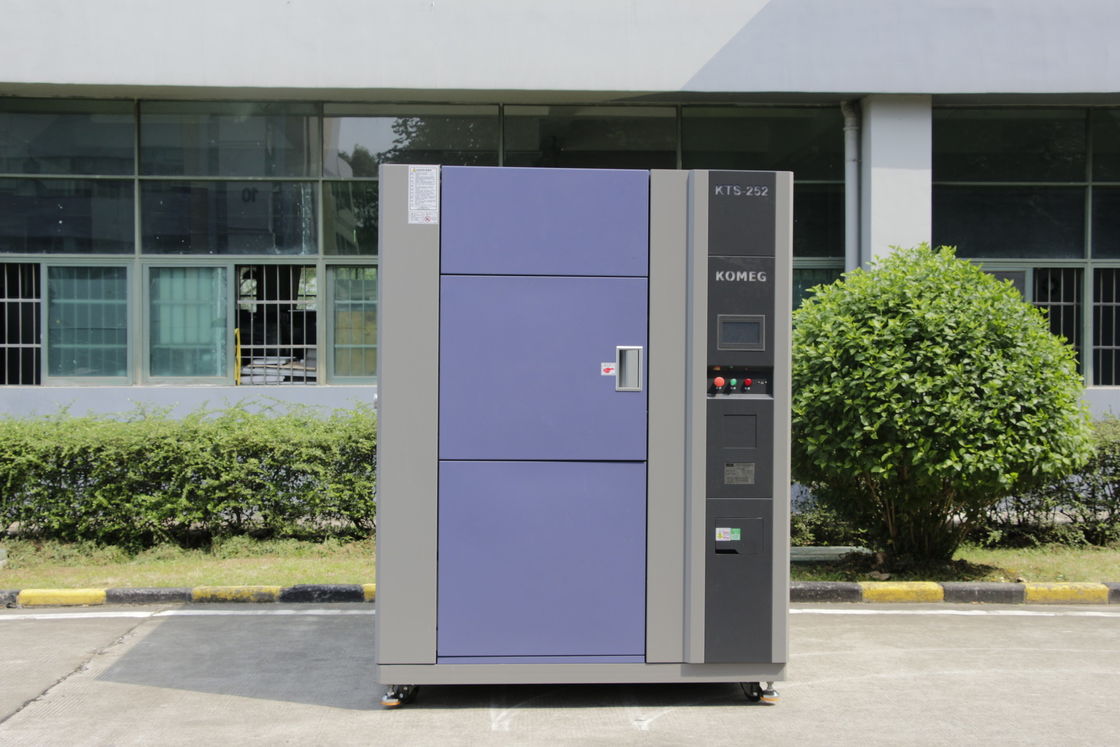

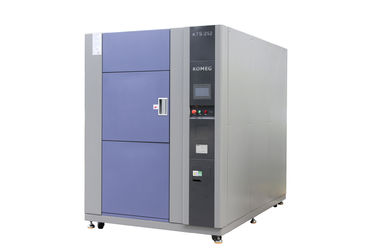

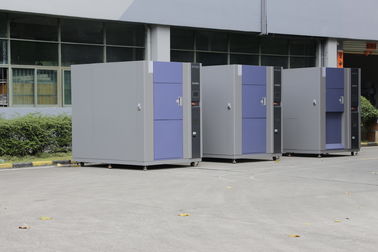

KTS-252L High-precision stainless Steel Plate 3-zone Thermal shock chamber
Control method and characteristics
This is use low-temperature and high temperature cold storage hot storage tank, according to the action
need to turn on the DAMPER to achieve the fast impact effect. The balance temperature regulation
control system (BTC) controls the SSPR in P.I.D. mode, so that the heating capacity of the system is
equal to the amount of heat loss, so it can be used in a long-term and stable way.
1. Heat preservation material, we use high-intensity PU foam and high density glass fiber cotton, which
can assure high precise and better uniformity and avoid unnecessary energy loss. Meanwhile, our
design can better assure personnel safety when operating a Walk-in Chamber.
2. Inner wall and housing material:
For small standard models, generally use inner wall of stainless steel #304 1.0mm, housing of stainless
steel #304 1.2mm;
For bigger models, or some customized with special needs, we use inner wall of stainless steel #304
1.5 to 3.0mm, housing of stainless steel #304 over 1.5mm;
3. Material quality of inner box is SUS304 # mounted stainless steel imported, and outer box is steel plate
and the paint process applies automobile coating technology. Box body is processed shape using
Triumph processing machine, its shape is nice and neat.
4. Large-size Full Color LCD touchscreen displayer, simple operation, easy to edit programs. PID with
automatic calculation function; self-diagnostic function, show failure message and failure shot solutions
step by step.
5. An RS-232 and RS-485 communication interface, matching recorder, strong expandability. We also
support remote control by PC via wifi or wire (recommended).
During the whole test, test sample is no need to be moved, and without any human intervention.
|Temp.range||High Temp.chamber||+60 ℃~+200 ℃|
|pre-heat time||+60 ℃~+200 ℃ Within 20 Min|
|Low Temp.chamber||(D) -80 ℃~-10 ℃|
|pre-heat time||(D) +20℃~-70 ℃ Within 60 Min|
|Test.chamber||(D) -65℃~+150 ℃|
|Recovery time||Exposure 30 min|
|Exposure 30 min|
|Recovery time within 5 min|
|Basket material (cm)||W||80|
|Interior material||Stainless Steel Plate(SUS304)|
|Exterior material||Baked Painting Steel Or Stainless steel(SUS304)|
|Insulation material||Rigid polyurethane Foam+glass fibre wool|
|Refrigeration system||Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant|
|Controllor||Panel Operation model Memory capacity Accuracy Input Comm.port||7'LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option)|
|Safety Devices||No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector.|
|Standard Accessories||Shelvesw*2,cable port(portØ50mm)*1|
|Power||AC380±10%50Hz 3phase 4 wires+Groud Wires
Standards Implement and Met
GB/T 2443.1-2001 Test A: Low temp. Test;
GB/T 2443.2-2001 Test B: Low temp. Test;
GB/T 2443.22-2002 Test N: Low temp. Test;
GJB 150.3-1986 High Temp. Test;
GJB 150.4-1986 Low temp. Test;
GJB 150.5-1986 Temp. Impact Test;
(Load refer to 5.5.5 no active load)
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about
the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link
power in your lab, then can start to operate;
Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it;
Thirdly, some of customized chambers we should to install and teach your team to operate.
