45CBM Walk In Stability Climatic Test Chamber Air Circulation Environmental For Vehicle

Certification
Good quality Temperature Humidity Chamber for sales
Good quality Temperature Humidity Chamber for sales
Fast delivery and quality products.

—— Gozia

Friendly and pleasant cooperator, "I like the factory, I like the design, I like the workstyle"

—— Wagner

The design and quality impress me a lot.

—— Mr Yee

" A trustworthy supplier of climatic test chamber".

—— Denis

I'm Online Chat Now

45CBM Walk In Stability Climatic Test Chamber Air Circulation Environmental For Vehicle

China 45CBM Walk In Stability Climatic Test Chamber  Air Circulation Environmental For Vehicle supplier
45CBM Walk In Stability Climatic Test Chamber  Air Circulation Environmental For Vehicle supplier 45CBM Walk In Stability Climatic Test Chamber  Air Circulation Environmental For Vehicle supplier

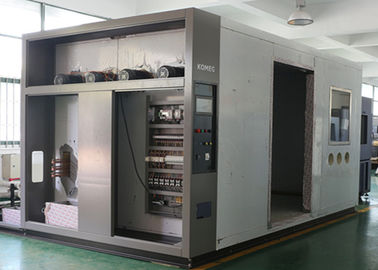

Large Image :  45CBM Walk In Stability Climatic Test Chamber Air Circulation Environmental For Vehicle

Product Details:

Place of Origin: China
Brand Name: Komeg
Certification: CE
Model Number: KMH-45

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: rigid foam and wooden box
Delivery Time: 35 days after confirm the order
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 100pcs/day
Contact Now
Detailed Product Description
Temp Range: High Temp 80 ºC,120 ºC Volume: 45CBM
Controller: Panel: 7-inch LCD Touch Panel, Chinese Or English Display Selectable Inside Dimension: W500xH300xD300cm
Interior Material: SUS 304 Refrigeration System: Water Cooled

Walk in stability Climatic Test Chamber Hot Air Circulation environmental rooms for Vehicle



Oem and ODM are welcome


Technical Specification


Model

KMHW-45



Volume(m³)

45CBM



Interior Dimensions W500xH300xD300cm
Inside material

stainless steel



Safety Devices(standard) No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator
Control System

Balanced Temperature & Humidity Control System



Refrigeration system

Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )

Controller

Panel: 7-inch LCD Touch panel, Chinese or English display selectable
Operation model : Program or fix point running
Memory capacity:120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles



Temp. range

Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC



Humidity Range

10%, 20%, 30% ~ 95%



Temp. constancy

±0.5 ºC



Humidity constancy ±2.5%R.H
Temp. uniformity

±2.0 ºC



Humidity uniformity ±5.0%R.H



Chamber structure


Insulation material

Glass wool

Heater

High quality nickel-chromium alloy wire electric heaters

Temperature Controller

ST-570 South Korea imported thermostat ST-570
*high precision(0.1%), high performance
*Support multiple input (T / C, RTD, DCV)
*Can finish multiple output and simultaneous output (Max 4 points)
*Simple parameter operation , available text settings
*Supports suppressing system Overshoot function
*Alarm output 1 point
Auxiliary output status operation screen displayed
*Each zone input adjustment function (Max 4 Zone)
To achieve control heating and cooling function
*PID automatic adjustment function (AT Gain)
(AT Gain)
*Supports multiple communication protocols (Modbus, etc.)
*To achieve high quality, high reliability (CE, CUL, ISO, etc.)

Temperature body

K thermoelectric

ventilator

Ventilator 1 type, displacement of 130 ~ 250m3 / h (from the exhaust fan to the duct outside the laboratory to be handled by the customer)

Protection System

Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch.


Competitive Advantage

1. Have 27 years experience on environmental chambers and standard environmental chambers, Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude chambers, temperature chambers, temperature and humidity chambers, environmental test chamber manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in chambers, laboratory test chambers, environment test rooms.

2. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.


3. NO 1 BEST SELLER


KOMEG brand of temperature and humidity test chamber is the ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range. Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 150 °C and 10% to 98% RH.Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 150 °C with humidity.
For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18029096856

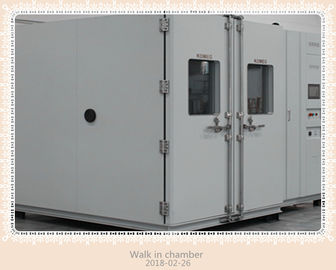

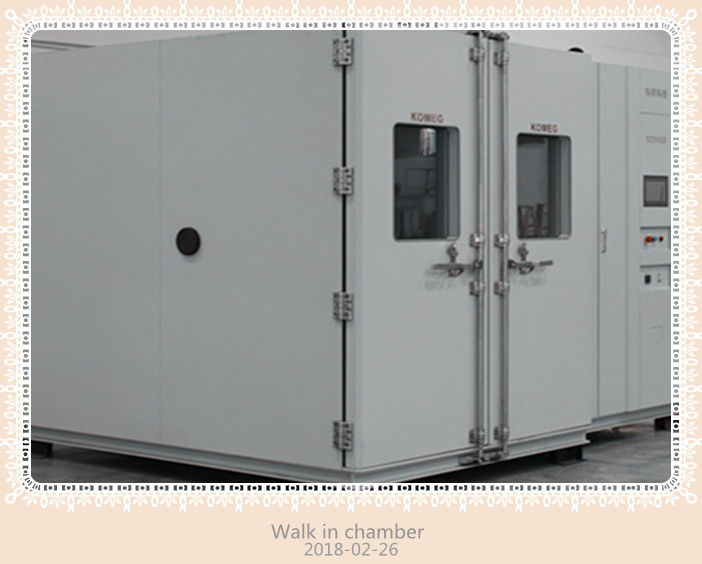

Photo show
45CBM Walk In Stability Climatic Test Chamber  Air Circulation Environmental For Vehicle
