Large Programmable Walk-In Constant Temperature And Humidity Test Chamber

China Large Programmable Walk-In Constant Temperature And Humidity Test Chamber supplier
Large Programmable Walk-In Constant Temperature And Humidity Test Chamber supplier Large Programmable Walk-In Constant Temperature And Humidity Test Chamber supplier Large Programmable Walk-In Constant Temperature And Humidity Test Chamber supplier Large Programmable Walk-In Constant Temperature And Humidity Test Chamber supplier

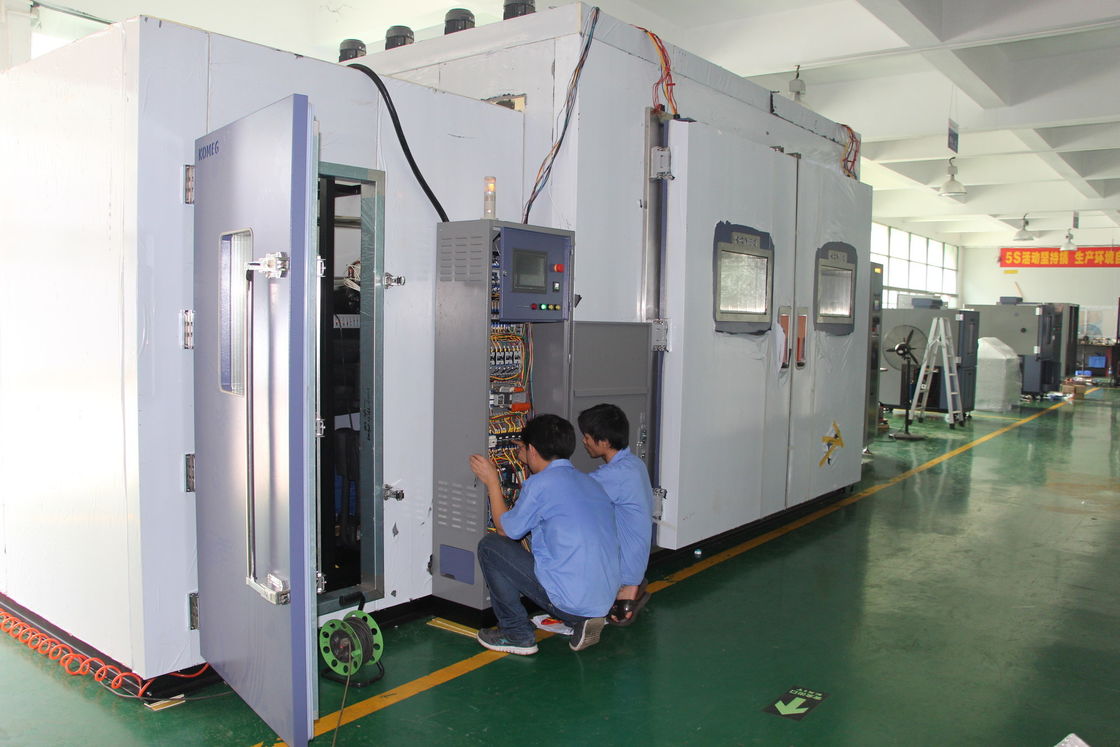

Large Image :  Large Programmable Walk-In Constant Temperature And Humidity Test Chamber

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE/ROHS/FCC/
Model Number: KMHW-4

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment30 work days upon deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 1, 000~1, 500 SETS / YEAR
Contact Now
Detailed Product Description
Product Name: Programmable Walk-in Test Chambers Controller Panel: 7-inch LCD Touch Panel, Chinese Or English Display Selectable
Humidity Constancy: +/-2.5%R.H Application: Reliability Testing, Research & Development Testing, Failure Analysis
Interior Chamber Material: SUS#304 Stainless Steel Plate Control System: Balanced Temperature And Humidity Control System

large walk-in constant temperature and humidity chamber





 Applications



A KOMEG Walk-In Chamber serves as a test site for large components, assemblies, and finished



products in electrical and electronics, aerospace, batteries and automobiles, etc. KOMEG manufactures



both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature



chamber or a temperature humidity chamber.



The KMHW-Series walk-in temperature and climate test chambers are especially developed for large test



specimens. Size and design are optimal loading of test specimens. The modular construction and



variability in size and equipment is ideally for specific application.

.



Features



Control method and characteristics:



Precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to



make the system’s heating / humidification reduction, to achieve low power consumption, energy saving,



carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable



use.





Prouduct Specifications



Model KMHW-4
Volume(m³) 9CBM
Interior Dimensions W2100 x H2100 x D2050mm
Exterior Dimensions W3250 x H2350 x D2250mm
Safety Devices(standard) No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator
Control System Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
  Semi-hermetic compressor, single stage or cascade refrigeration system,
  CFC free refrigerant ( HFC-507 and HFC-23 )
Controller Panel 7-inch LCD Touch panel, Chinese or English display selectable
  Operation model Program or fix point running
  Memory capacity 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
  Accuracy Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit
  Input Temp.: pt-100, Humidity: pt-100 or ~5V DCV
  Comm.port RS-232 or RS-485 ( Softawre is option)
Temp. range Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC
Humidity Range 10%, 20%, 30% ~ 95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC~+35 ºC
Wiring method AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires
Heat up time +20 ºC~+80 ºC, Within 60 min
Pull down time +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing: W800 x H1800; Double wing: W1600 x H1800;
Note: 1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available





Environmental test chamber Standard



GB/Bb T2423.2-89 high temperature test method



GB2423.1-89 test A: low temperature test method 6



GJB150.4-1986 test at low temperature



IEC60068-2-1 low temperature test method



IEC60068-2-38 temperature cycle



IEC60068-2-78 constant humidity temperature




Product Details

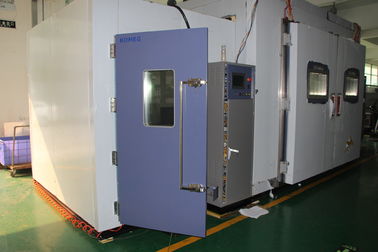

Large Programmable Walk-In Constant Temperature And Humidity Test Chamber

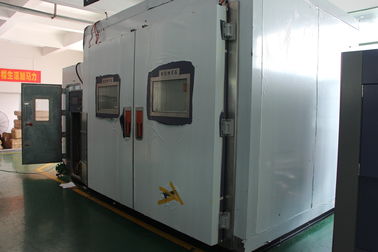

Large Programmable Walk-In Constant Temperature And Humidity Test Chamber



Packaging:


Chambers are covered with air bubble film before put them into the strong plywoodcase, which not only



has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic,



odorless, moisture corrosion, crash-proof, etc

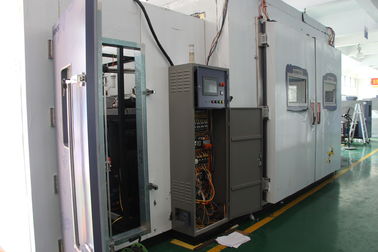

Large Programmable Walk-In Constant Temperature And Humidity Test Chamber





After-sales Service and Training



Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty



period, the user will be charged properly. Irregular examination and life-long service are available;



Note: If needed, provide 2 operators for on-site installation and training
