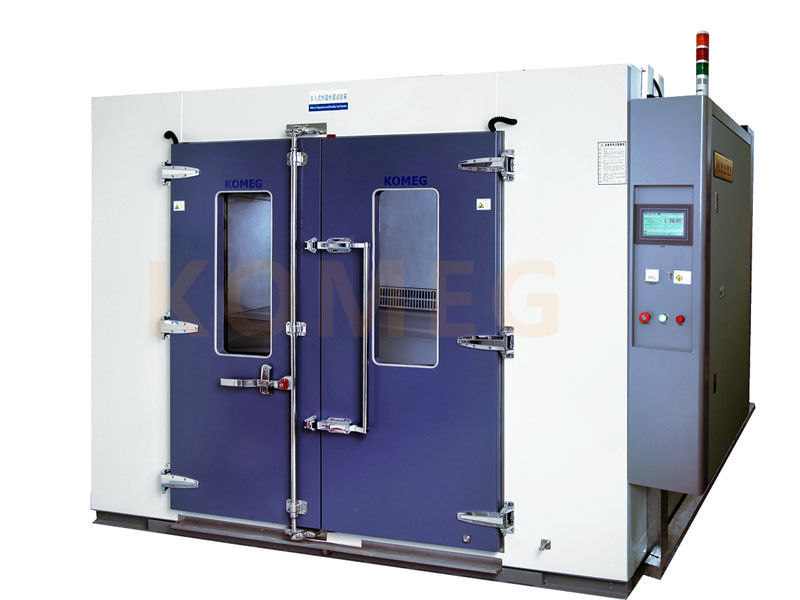

Environmental Walk-In Chamber Used For Reliability Testing And Controlled Storage

China Environmental Walk-In Chamber Used For Reliability Testing And Controlled Storage supplier

Large Image :  Environmental Walk-In Chamber Used For Reliability Testing And Controlled Storage

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: KOMEG
Certification: CE/ROHS/FCC
Model Number: KMHW-13

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 35 working days after received your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 50sets per year
Contact Now
Detailed Product Description
Humidity Range: 10%,20%,30%~95% Temp. Constancy: ±0.5℃
Temp. Range: Maximum:80℃, 120℃; Minimum: -60℃, -50℃, -40℃, -30℃, -20℃, -10℃, 0℃ Humidity Constancy: ±2.5%R.H
Humidity Uniformity: ±5.0%R.H Volume(M3): 13
Interior Chamber Material: SUS#304 Stainless Steel Plate Product Name: High Quality Walk In Environmental Chamber
Usage: Auto Testing Machine Warranty: 12 Months



Environmental Walk In Stability Chamber used for Reliability Testing and Controlled Storage





Applications



KOMEG's Walk-In Environmental Test Chambers provide simulation environment to achieve reliability test of computers and copiers or automobiles and satellites. Capable of testing large components, assemblies, and finished products, KOMEG's Walk-In chambers simulate a wide range of temperature and humidity environments. These chambers can be used for testing and controlled storage as well as a versatile laboratory environment for conducting test procedures in the telecommunications, defense, aerospace, pharmaceutical, automotive, and electronics industries.



A Thermotron Walk-In Chamber serves as a test site for large components, assemblies, and finished products. Thermotron manufactures both Panel Walk-In Chambers and Solid Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.



Specification of Walk-In Chambers
Model KMHW-13
Volume(m³) 13CBM
Interior Dimensions W3000*H2100*D2050mm
Exterior Dimensions W4160*H2350*D2250mm
Safety Devices(standard) No fuse breaker, over pressure,over heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator
Control System Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant(HFC-507 and HFC-23)
Controller Panel 7-inch LCD Touch panel,Chinese or English display selectable
Operation model Program or fix point running
Memory capacity 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
Accuracy Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input Temp.:pt-100, Humidity:pt-100 or ~5V DCV
Comm.port RS-232 or RS-485 (Softawre is option)
Temp. range Maximum:80 ºC,120 ºC;Minimum:-60 ºC,-50 ºC,-40 ºC,-30 ºC,-20 ºC,-10 ºC,0 ºC
Humidity Range 10%,20%,30%~95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC~+35 ºC
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Heat up time +20 ºC~+80 ºC,Within 60 min
Pull down time +20 ºC~-55 ºC, -40 ºC,-20 ºC,-10 ºC,Within 120 or 90 or 60 min
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing:W800*H1800; Double wing:W1600*H1800;
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available





Features


● GB-2423.1-2008(IEC68-2-2) Test B: High Temperature Test

● GB-2423.1-2008(IEC68-2-2) Test B: Low Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Operating Life Test

● GBJl50.3-2009(MIL-STD-810D) High Temperature Test

● GBJl50.4-2009(MIL-STD-810D) High Temperature Test





Description



A Panel Walk-In Chamber is made from lightweight insulated panels for fast and easy installation. Outside banding helps prevent leaking and keeps moisture out of the Walk-In Chamber and workspace temperatures steady. Solid Walk-In Chambers are custom built to accommodate almost any size. They feature welded walls creating an environmental room for applications requiring controlled temperature and humidity testing exceeding 85°C. Typically, for ease of installation, a Solid Walk-In Chamber works best in new construction buildings, areas with extremely large doors, or rooms where outside walls can be easily removed.


Air Cooled Condensers for environmental chambers take the heat of out the equipment's refrigeration system. On smaller and standard Thermotron environmental equipment, the air-cooled condenser is located inside the environmental chamber. A remote air-cooled condenser is available for equipment with higher performance requirements or larger compressors.

Water-cooled condensers may also be available, depending on environmental chamber model.




Most popular walk-in type

  1. Standard sub-assemblies for quick delivery and low cost
  2. High quality panels manufactured to KOMEG standards.
  3. Standard muti-layer heated window in door(s)
  4. Operation allowable to 120°C(75°C in humidity mode )
  5. Temperature change rates to 10°C/m.



Flexibility for structure


The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.



Environmental Walk-In Chamber Used For Reliability Testing And Controlled Storage



KOMEG Walk-in Chamber- Products.pdf
