Stainless Steel 3-Zone Thermal Shock Test Chamber 500L LCD Toch Panel

China Stainless Steel 3-Zone Thermal Shock Test Chamber 500L LCD Toch Panel supplier
Stainless Steel 3-Zone Thermal Shock Test Chamber 500L LCD Toch Panel supplier Stainless Steel 3-Zone Thermal Shock Test Chamber 500L LCD Toch Panel supplier Stainless Steel 3-Zone Thermal Shock Test Chamber 500L LCD Toch Panel supplier Stainless Steel 3-Zone Thermal Shock Test Chamber 500L LCD Toch Panel supplier

Large Image :  Stainless Steel 3-Zone Thermal Shock Test Chamber 500L LCD Toch Panel

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE, ISO
Model Number: KTS-500

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Foam and wooden box
Delivery Time: 35 days after order confirmed
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100pcs/day
Contact Now
Detailed Product Description
Temp Range: +60℃- +200℃ Exterior Material: Baked Painting Steel
Interior Material: Stainless Steel Insulation Material: Rigid Poly Foam And Glass Fiber Wool
Controllor: Touch Screen Controller Refrigeration System: Air Cooled



500L LCD Toch panel stainless steel 3-zone thermal shock chamber





Applications



3-zone Thermal shock chamber have been designed to operate in accordance with reliability programs,



quality control, commercial test programs and medical tests. It is used to test the capability of material



structure or composite material to withstand the continuous environmental changes between extremely



high temperature and low temperature during a short period. It is applicable to metals, plastic, rubber,



electronics amongst other materials. The test result can be used as a reference or basis for produce



improvement.




Features



1.Thermal shork chamber in each zone for peak demand of heating and cooling. Provides extra thermal



    energy to efficiently meet the MIL-STD 883 requirements.


2.Temperature recorder provides 24 hour part temperature recording as the load travels from zone to



   zone. Using touch-control graph control as operation interface, easy to operate.


3.The system can be used for automatic Circulation Shock or manual selective shock, capable of setting



   two zones or three zones shocks as well as cold and thermal shock start-up.


4.Custom-made and optional accessories available.





Prouduct Specifications



Model KTS-500
Temp.range High Temp.chamber +60 ℃~+200 ℃
pre-heat time +60 ℃~+200 ℃ Within 20 Min
Low Temp.chamber (A) -55 ℃~-10 ℃, (B) -70 ℃~-10 ℃, (D) -80 ℃~-10 ℃
pre-heat time (A)+20 ℃~-55 ℃ Within 60 Min,(B)+20 ℃~-70℃ Within 60 Min,(D) +20℃~-70 ℃ Within 60 Min
Test.chamber (A) -40 ℃~+150 ℃, (B) -55 ℃~+150 ℃, (D) -65℃~+150 ℃
Recovery time Exposure 30 min
Exposure 30 min
Within 5 min
Test weight(kg) 15
Inside Dimension (cm) W 80
H 75
D 81.5
Outer Dimension (cm) W 181
H 227
D 235
Interior material Stainless Steel Plate(SUS304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fibre wool
Refrigeration system Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant
Controllor Panel Operation model Memory capacity Accuracy Input Comm.port LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option)
Safety Devices No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector.
Standard Accessories Shelvesw*2,cable port(portØ50mm)*1
Ambient Temp +5℃~+35℃
Power AC380±10%50Hz 3phase 4 wires+Groud Wires





Standards Implement and Met



GB/T 2443.1-2001 Test A: Low temp. Test;


GB/T 2443.2-2001 Test B: Low temp. Test;


GB/T 2443.22-2002 Test N: Low temp. Test;


GJB 150.3-1986 High Temp. Test;


GJB 150.4-1986 Low temp. Test;


GJB 150.5-1986 Temp. Impact Test;


(Load refer to 5.5.5 no active load)

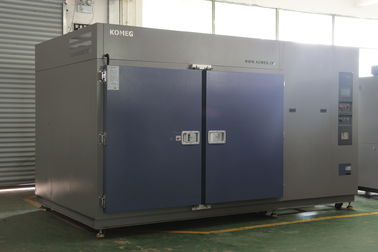

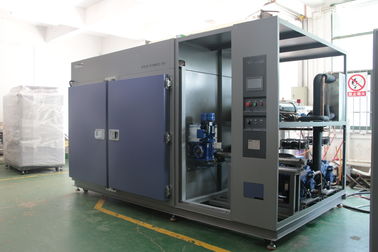

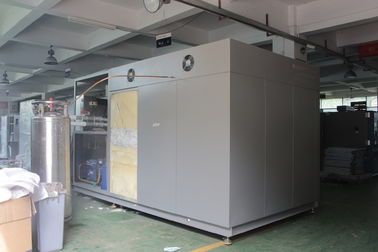

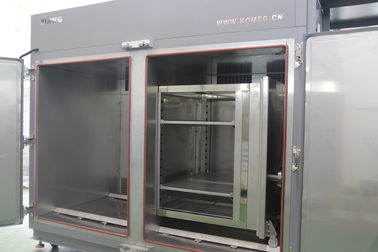

Prouduct Display



Stainless Steel 3-Zone Thermal Shock Test Chamber 500L LCD Toch Panel



Stainless Steel 3-Zone Thermal Shock Test Chamber 500L LCD Toch Panel





Packing and Shipment:



(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.

Stainless Steel 3-Zone Thermal Shock Test Chamber 500L LCD Toch Panel


After-sales service

1) We deal with your complains within 24 hours.

2) Training how to install the machine, training how to use the machine.

3) Engineers available to service machinery overseas.

4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be

    dedicated to provide high quality service and products for you.
