Solar Panel Module Environmental Walk-In Chamber For Testing PV Module'S Resistance Of Nature Weather

China Solar Panel Module Environmental Walk-In Chamber For Testing PV Module'S Resistance Of Nature Weather supplier
Solar Panel Module Environmental Walk-In Chamber For Testing PV Module'S Resistance Of Nature Weather supplier Solar Panel Module Environmental Walk-In Chamber For Testing PV Module'S Resistance Of Nature Weather supplier

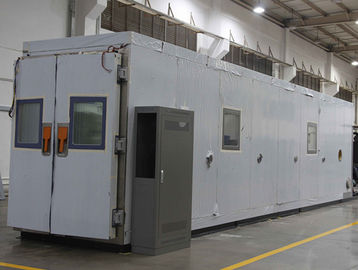

Large Image :  Solar Panel Module Environmental Walk-In Chamber For Testing PV Module'S Resistance Of Nature Weather

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: KOMEG
Certification: CE/ROHS/FCC
Model Number: KMHW-13

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 35 working days after received your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Humidity Range: 10%,20%,30%~95% Temp. Constancy: ±0.5℃
Temp. Range: Maximum:80℃, 120℃; Minimum: -60℃, -50℃, -40℃, -30℃, -20℃, -10℃, 0℃ Humidity Constancy: ±2.5%R.H
Humidity Uniformity: ±5.0%R.H Application: Metal
Interior Chamber Material: SUS#304 Stainless Steel Plate Product Name: High Quality Walk In Environmental Chamber
Usage: Auto Testing Machine Power Supply: AC 3 Phase 380V 60/50Hz



Solar Panel Module Environmental Walk-in Chamber for testing PV Module's Resistance of Nature Weather





Applications



Solar Panel Test Chamber also called PV Module Testing Equipment, for they are used for testing solar panel's resistance of nature weather. Solar Panel is exposed into the nature, so test chamber is needed to test its performance.



Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc.





Parameters


● GB-2423.1-2008(IEC68-2-2) Test B: High Temperature Test

● GB-2423.1-2008(IEC68-2-2) Test B: Low Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Operating Life Test

● GBJl50.3-2009(MIL-STD-810D) High Temperature Test

● GBJl50.4-2009(MIL-STD-810D) High Temperature Test





Specification of Walk-In Chambers
Model KMHW-13
Volume(m³) 13CBM
Interior Dimensions W3000*H2100*D2050mm
Exterior Dimensions W4160*H2350*D2250mm
Safety Devices(standard) No fuse breaker, over pressure,over heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator
Control System Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant(HFC-507 and HFC-23)
Controller Panel 7-inch LCD Touch panel,Chinese or English display selectable
Operation model Program or fix point running
Memory capacity 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
Accuracy Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input Temp.:pt-100, Humidity:pt-100 or ~5V DCV
Comm.port RS-232 or RS-485 (Softawre is option)
Temp. range Maximum:80 ºC,120 ºC;Minimum:-60 ºC,-50 ºC,-40 ºC,-30 ºC,-20 ºC,-10 ºC,0 ºC
Humidity Range 10%,20%,30%~95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC~+35 ºC
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Heat up time +20 ºC~+80 ºC,Within 60 min
Pull down time +20 ºC~-55 ºC, -40 ºC,-20 ºC,-10 ºC,Within 120 or 90 or 60 min
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing:W800*H1800; Double wing:W1600*H1800;
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available





Features

1) Stainless steel interior
2) Painted galvanized steel exterior for long life
3) MAP service doors are hinged (no tools or lifting)
4) Easy access to frequently checked refrigeration components
5) Reliable steam generator system for humidity applications
6) Adjustable vanes in supply grille allow directing of airflow as needed



About Solar Panel Test Chamber



Alternative energy sources are the future of the world we live in. Solar energy is one of the forerunners of this energy revolution.
The panels need to be able to withstand whatever mother nature throws at them. For this reason environmental testing has become a integral step in product development and design.

Solar panel refers either to a solar hot water panel, a common type of a solar thermal collector, or to one or more solar photovoltaics (PV) modules, electrically connected and mounted on a supporting structure.

Solar modules must withstand rain, hail, heavy snow load, and cycles of heat and cold for many years. Many crystalline silicon module manufacturers offer a warranty that guarantees electrical production for 10 years at 90% of rated power output and 25 years at 80%.





Description


Most popular walk-in type

  1. Standard sub-assemblies for quick delivery and low cost
  2. High quality panels manufactured to KOMEG standards.
  3. Standard muti-layer heated window in door(s)
  4. Operation allowable to 120°C(75°C in humidity mode )
  5. Temperature change rates to 10°C/m.



Services:



1,Pre-sales service



Before the purchase, our company will provide customers with detailed product-related information, and welcome you to visit the company and check the goods.



2,After-sales service



After the completion of the transaction, our company will be arranged different after-sales service according to the ease of the goods , and even arrange work engineers on-site service.



3,Warranty period



Our product warranty is 12 months and we are committed to responding within 48 hours of the problem, providing a solution.





Flexibility for structure


The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.
