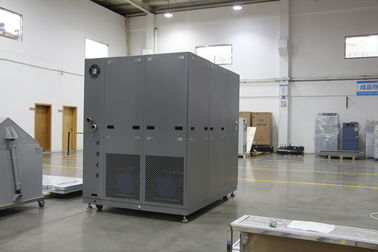

High Precision Stainless Steel Plate 150L 3-Zone Thermal Test Chamber

High Precision Stainless Steel Plate 150L 3-Zone Thermal Test Chamber
High Precision Stainless Steel Plate 150L 3-Zone Thermal Test Chamber High Precision Stainless Steel Plate 150L 3-Zone Thermal Test Chamber High Precision Stainless Steel Plate 150L 3-Zone Thermal Test Chamber High Precision Stainless Steel Plate 150L 3-Zone Thermal Test Chamber

Large Image :  High Precision Stainless Steel Plate 150L 3-Zone Thermal Test Chamber

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE, ISO
Model Number: KTS-150D
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days atfer confirm the order
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1, 000~1, 500 SETS / YEAR
Detailed Product Description
Interior Material: Stainless Steel Plate(SUS304) Exterior Material: Baked Painting Steel Or Stainless Steel(SUS304)
Refrigeration System: Water Cooled High Temp Chamber: +60°C ~+200°C
Ambient Temp: +5°C To 35°C Heater: Open Wire Electric Heater
High Light:

thermal shock chamber

,

environmental testing chambers

LCD Toch panel high-precision Stainless Steel Plate 150L 3-Zone Thermal Test Chamber





Control method and characteristics



This is  use low-temperature and high temperature cold storage hot storage tank, according to the action



need to turn on the DAMPER to achieve the fast impact effect. The balance temperature regulation



control system (BTC) controls the SSPR in P.I.D. mode, so that the heating capacity of the system is



equal to the amount of heat loss, so it can be used in a long-term and stable way.





Features



1. Heat preservation material, we use high-intensity PU foam and high density glass fiber cotton, which



can assure high precise and better uniformity and avoid unnecessary energy loss. Meanwhile, our



design can better assure personnel safety when operating a Walk-in Chamber.



2. Inner wall and housing material:



For small standard models, generally use inner wall of stainless steel #304 1.0mm, housing of stainless



steel #304 1.2mm;



For bigger models, or some customized with special needs, we use inner wall of stainless steel #304



1.5 to 3.0mm, housing of stainless steel #304 over 1.5mm;



3. Material quality of inner box is SUS304 # mounted stainless steel imported, and outer box is steel plate



and the paint process applies automobile coating technology. Box body is processed shape using



Triumph processing machine, its shape is nice and neat.



4. Large-size Full Color LCD touchscreen displayer, simple operation, easy to edit programs. PID with



automatic calculation function; self-diagnostic function, show failure message and failure shot solutions



step by step.



5. An RS-232 and RS-485 communication interface, matching recorder, strong expandability. We also



support remote control by PC via wifi or wire (recommended).



During the whole test, test sample is no need to be moved, and without any human intervention.



Specifications



Model KTS--150D
Temp.range High Temp.chamber +60 ℃~+200 ℃
pre-heat time +60 ℃~+200 ℃ Within 20 Min
Low Temp.chamber (D) -80 ℃~-10 ℃
pre-heat time (D) +20℃~-70 ℃ Within 60 Min
Test.chamber (D) -65℃~+150 ℃
Recovery time Exposure 30 min
Exposure 30 min
Recovery time within 5 min
Test weight(kg) 5
Inside dimension(cm) W 60
H

50

D 50
Interior material Stainless Steel Plate(SUS304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fibre wool
Refrigeration system Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant
Controllor Panel Operation model Memory capacity Accuracy Input Comm.port 7'LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option)
Safety Devices No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector.
Standard Accessories Shelvesw*2,cable port(portØ50mm)*1
Ambient Temp +5℃~+35℃
Power AC380±10%50Hz 3phase 4 wires+Groud Wires






Standards Implement and Met



GB/T 2443.1-2001 Test A: Low temp. Test;



GB/T 2443.2-2001 Test B: Low temp. Test;



GB/T 2443.22-2002 Test N: Low temp. Test;



GJB 150.3-1986 High Temp. Test;



GJB 150.4-1986 Low temp. Test;



GJB 150.5-1986 Temp. Impact Test;



(Load refer to 5.5.5 no active load)




Prouduct Display

High Precision Stainless Steel Plate 150L 3-Zone Thermal Test Chamber 0

High Precision Stainless Steel Plate 150L 3-Zone Thermal Test Chamber 1




FAQ:



Q1 : Can you customize the product?



A: Yes, we can customize any products according to requirements.



Q2 : How to choose the most suitable products?



A: Our professional team will give you the best suggestion,just be patiently to tell us the information about



the parameters your required.



Q3 : Can you arrange installations and commissioning in our lab?



A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link



power in your lab, then can start to operate;



Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it;



Thirdly, some of customized chambers we should to install and teach your team to operate.





Packing and Shipment:



(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.

High Precision Stainless Steel Plate 150L 3-Zone Thermal Test Chamber 2


Pre-sales service

1) More than 20 years manufacturer experience and 8 years export experience.

2) Acceptable customization for all kinds of special specification products.

3) We value very inquiry sent to us, ensure quick and competitive offer.

4) We put your order into our tight production schedule,ensure your punctual delivery time.

5) We are a sales team, with more than 4 years experience, more professional and reliable.

6) Welcome to view our factory at any moment .


After-sales service

1) We deal with your complains within 24 hours.

2) Training how to install the machine, training how to use the machine.

3) Engineers available to service machinery overseas.

4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be

dedicated to provide high quality service and products for you.

For more detail information ,kindly contact : annie@komegtech.com whats app ,wechat :+86-

13726402801

High Precision Stainless Steel Plate 150L 3-Zone Thermal Test Chamber 3
