Payment & Shipping Terms:
|Product Name:||High Altitude Simulation Test Chamber||Application:||Steady And Transient State Testing|
|Exterior Material:||Baked Painting Steel||Interior Material:||Stainless Steel|
|Temp Range:||-70℃ ～ +100℃||Pressure Range:||Constant Voltage~0.5kPa|

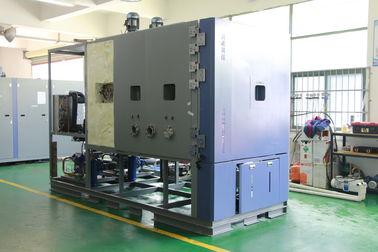

High precision touch screen controller 2300L temperature attitude testing chamber
High and low temperature low pressure is suitable for the product (machine), spare parts, materials of
high temperature, low temperature, high, high and low temperature cycling test and temperature level
test, high temperature test, the test box can be used to test the heat of test samples and non heat
dissipating specimens. For the test of heat dissipation test sample, the radiating power of the altitude low
pressure test chamber can not exceed that of the test box. Because of the dynamic value of refrigerating
volume, it changes with the change of temperature.
● Temperature range from -70 to 170℃
● Altitude range ground to 100,000 feet
● External pressure type box body structure and stainless steel tank design, rational air circulation
system and scientific layout of heating, refrigerating system.
● Adopts international brand of imported parts for cooling system to improve operation reliability
● High precision and stable performance with touch screen controller, friendly Man-Machine interface.
● Multiple layers of safety device to easy maintenance.
● Viewing window and cable ports available
● Vacuum pump sized for climb/dive rate required by application
|Inner Size (D*W*H)mm||W261*H239*D266|
|Temp deviation||≥100℃, ±3.0℃(at constant pressure with empty load)|
|＜100℃, ±2.0℃(at constant pressure with empty load)|
|Cooling rate||0.7℃～1.0℃/min(Overall average)|
|Pressure range||Constant pressure ～1kPa|
|Pressure constancy||When ≥40kPa, ±2kPa, 4kPa～40pKa ±0.5kPa, when≤4kPa, ±0.1kPa|
|Depressurization rate||Constant pressure～1kPa≤30mins(Normal temp)|
|Pressure recovery rate||10kPa/Min(adjustable)|
|Material||Exterior material||Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate|
|Interior material||Stainless steel(SUS304)|
|Pressurized parts||High quality steel plate(Rust proof & Plastic spray treated)|
|Insulation material||High quality glass wool|
|Cooling System||Compressor||Semi-Hermetic Compressor|
|Cooling Mode||Water cooled|
|Temp regulating method||Balanced Temperature & Humidity Control System (BTHC)|
|Pump||Rotary vane type vacuum pump|
|Heater||Iron-chrome wire heater|
|Sight window||Circular viewing glass incorporating heat generator|
|Controller||Touch Screen Controller|
|Safety Devices||Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm|
|Standard Accessory||Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2|
|Power||AC380V/50Hz, 3Phase 5 wires+ Ground Wire.|
|Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available|
Main Features of our high altitude test chamber:
1. 5.6" LCD touch screen color controller, Korea Samvontech brand.
2. 120 patterns*1200 steps, circulation Setting: Max. 9999 cycles.
3. PID+SSR / SCR controller.
4. RS-232 / RS-485 / USB / Ethernet / RJ45 communication interface.
5. Pressure range: atmosphere pressure to 0.5KPa
6. Inner cable port of 50mm/100 mm can meet the requiremnt of power- on test for user's product.
7. SUS#304 stainless steel plate inner chamber.
8.1 year free parts warranty, extended warranty is also available.
Environmental test chamber Standard

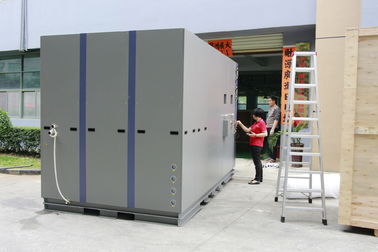

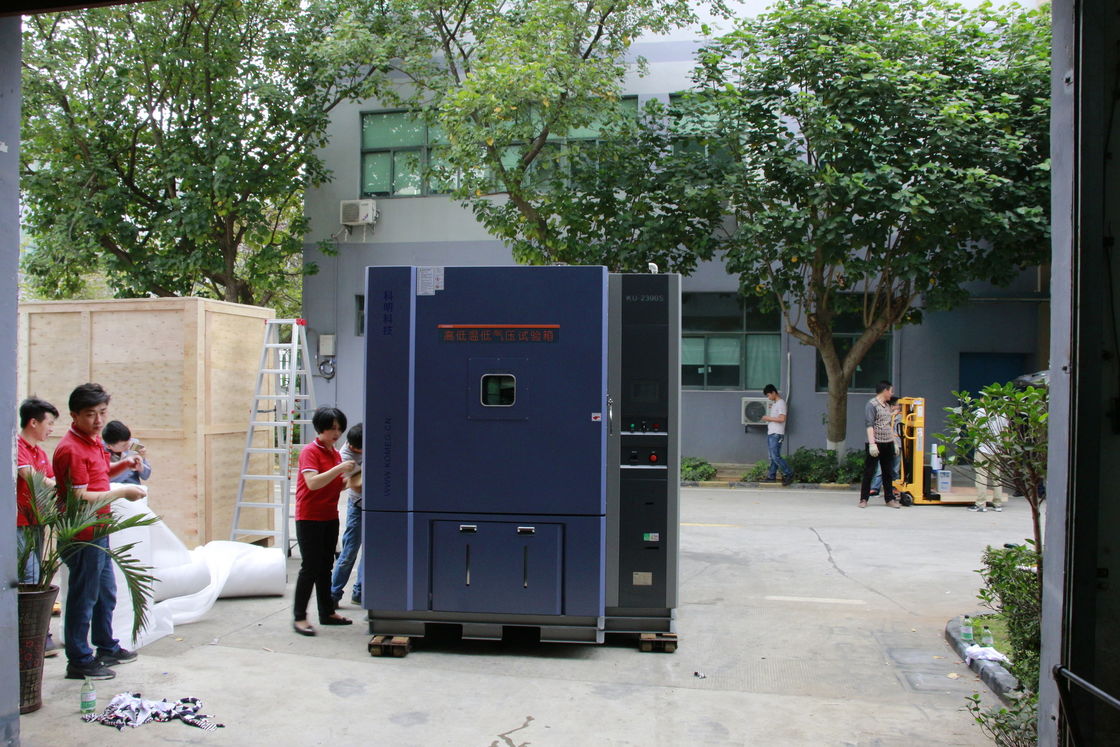

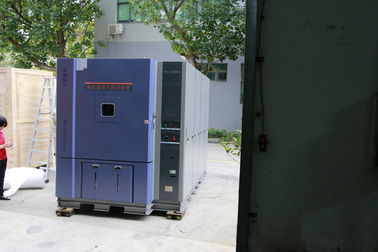

Packing and Shipment:
If you face any problems in future during testing process we promise we will give you a reply within 48
hours and solution provide within 3 working days. We can offer operation video and English operation
muanual. We can provide video-conference. If customers require on-site service, the transport and travel
expense shall be borne by customer.
