Product Details:
Payment & Shipping Terms:
|
| Temp Range: | +60℃- +200℃ | Exterior Material: | Baked Painting Steel |
|---|---|---|---|
| Interior Material: | Stainless Steel | Insulation Material: | Rigid Poly Foam And Glass Fiber Wool |
| Controllor: | Touch Screen Controller | Ambient Temp: | +5℃- +35℃ |
| High Light: | temperature shock test chamber,environmental testing chambers |
||
LCD Toch panel stainless steel plate 480L 3-zone thermal shock chamber
Applications
3-zone Thermal shock chamber can be used to test the degree that material can endure at a very high
temperature and extremely low temperature in a short time, so as to test its chemical change or physical
injury caused by thermal expansion and cold contraction in the shortest time. The applicable objects
include metal, plastic, rubber material and other materials, which can be used as the basis or reference
for the improvement of its products.
Features
1.Thermal shork chamber in each zone for peak demand of heating and cooling. Provides extra thermal
energy to efficiently meet the MIL-STD 883 requirements.
2.Temperature recorder provides 24 hour part temperature recording as the load travels from zone to
zone. Using touch-control graph control as operation interface, easy to operate.
3.The system can be used for automatic Circulation Shock or manual selective shock, capable of setting
two zones or three zones shocks as well as cold and thermal shock start-up.
4.Custom-made and optional accessories available.
Specifications
| Model | KTS-480A | ||||||
| Temp.range | High Temp.chamber | +60 ℃~+200 ℃ | |||||
| pre-heat time | +60 ℃~+200 ℃ Within 20 Min | ||||||
| Low Temp.chamber | (A) -55 ℃~-10 ℃, (B) -70 ℃~-10 ℃, (D) -80 ℃~-10 ℃ | ||||||
| pre-heat time | (A)+20 ℃~-55 ℃ Within 60 Min,(B)+20 ℃~-70℃ Within 60 Min,(D) +20℃~-70 ℃ Within 60 Min | ||||||
| Test.chamber | (A) -40 ℃~+150 ℃, (B) -55 ℃~+150 ℃, (D) -65℃~+150 ℃ | ||||||
| Recovery time | Exposure 30 min | ||||||
| Exposure 30 min | |||||||
| Within 5 min | |||||||
| Test weight(kg) | 15 | ||||||
| Inside Dimension (cm) | W | 80 | |||||
| H | 75 | ||||||
| D | 81.5 | ||||||
| Outer Dimension (cm) | W | 181 | |||||
| H | 227 | ||||||
| D | 235 | ||||||
| Interior material | Stainless Steel Plate(SUS304) | ||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
| Insulation material | Rigid polyurethane Foam+glass fibre wool | ||||||
| Refrigeration system | Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant | ||||||
| Controllor | Panel Operation model Memory capacity Accuracy Input Comm.port | LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option) | |||||
| Safety Devices | No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector. | ||||||
| Standard Accessories | Shelvesw*2,cable port(portØ50mm)*1 | ||||||
| Ambient Temp | +5℃~+35℃ | ||||||
| Power | AC380±10%50Hz 3phase 4 wires+Groud Wires | ||||||
Standards Implement and Met
GB/T 2443.1-2001 Test A: Low temp. Test;
GB/T 2443.2-2001 Test B: Low temp. Test;
GB/T 2443.22-2002 Test N: Low temp. Test;
GJB 150.3-1986 High Temp. Test;
GJB 150.4-1986 Low temp. Test;
GJB 150.5-1986 Temp. Impact Test;
(Load refer to 5.5.5 no active load)

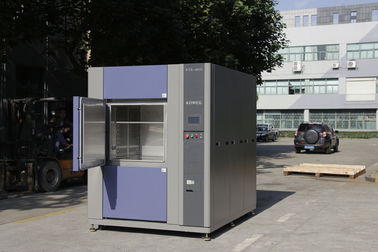

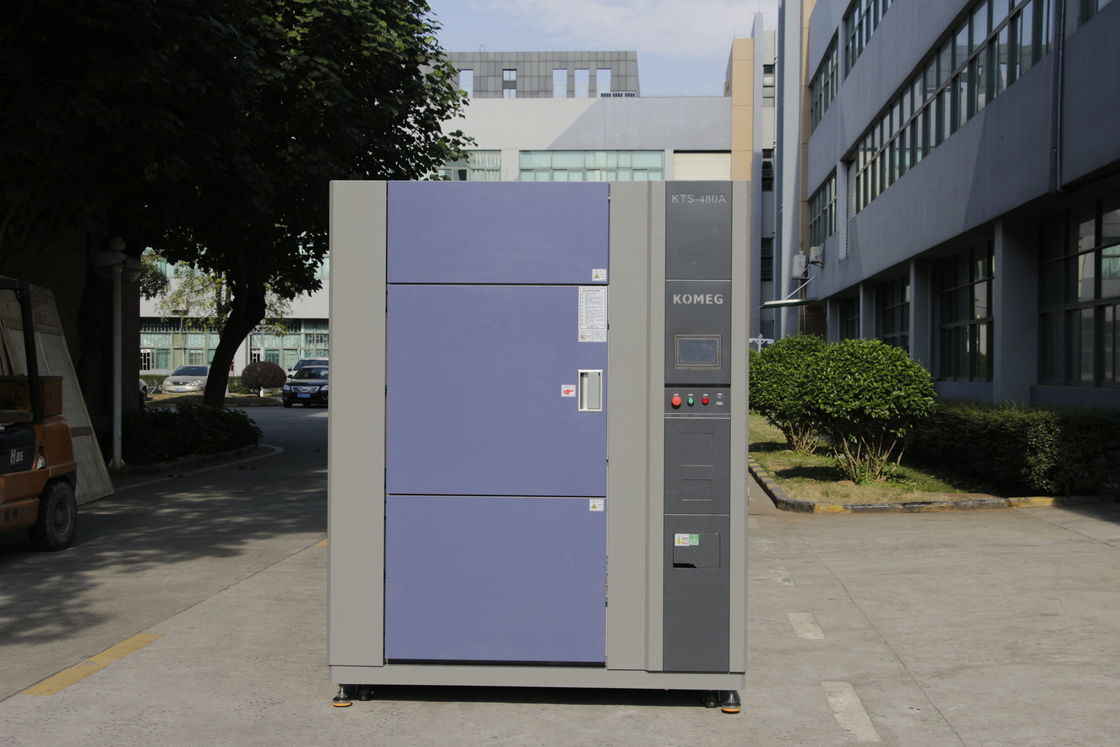

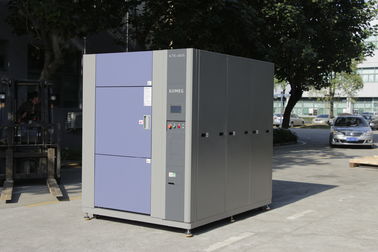

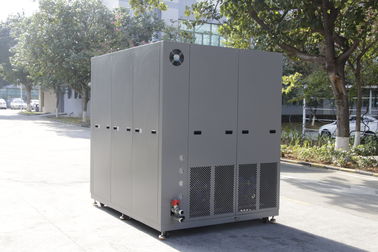

Prouduct photo
