Product Details:
Payment & Shipping Terms:
|
| Emperature Deviation: | ≦±2.0℃ | Temperature Range: | -75℃ ～ +150℃ |
|---|---|---|---|
| Humidity Range: | 10%R.H.～98%R.H | Humidity Uniformity: | 3.0％RH (no Load) |
| Inner Wall Material: | SUS304 # Matte Stainless Steel Plate | Insulation Materials: | Rigid Polyurethane Foam Insulation Layer + Glass Fiber. |
| High Light: | thermal shock chamber,environmental testing chambers |
||
LCD Touch panel stainless steel 3-zone thermal shock chamber
Applications
3-zone Thermal shock chamber can be used to test the degree that material can endure at a very high
temperature and extremely low temperature in a short time, so as to test its chemical change or physical
injury caused by thermal expansion and cold contraction in the shortest time. The applicable objects
include metal, plastic, rubber material and other materials, which can be used as the basis or reference
for the improvement of its products.
Specifications
| Model | KTS-A Series | |||||||
| 72A | 100A | 150A | 200A | 252A | 300A | 480A | ||
| Interior size | W(mm) | 450 | 500 | 600 | 670 | 700 | 800 | 800 |
| H(mm) | 400 | 450 | 500 | 600 | 600 | 600 | 800 | |
| D(mm) | 400 | 450 | 500 | 500 | 600 | 650 | 750 | |
| Exterior size | W(mm) | 1490 | 1540 | 1640 | 1720 | 1750 | 1850 | 1850 |
| H(mm) | 1790 | 1840 | 1890 | 2000 | 2000 | 2000 | 2200 | |
| D(mm) | 1600 | 1700 | 1830 | 1850 | 1930 | 1980 | 2500 | |
| Test weight(KG) | 5 | 10 | 12 | 15 | 18 | 20 | 20 | |
| -55ºC～-10ºC | ||||||||
| Pre-cooling time | +20ºC～-55ºC, Within 60 min | |||||||
| Test. chamber | -40ºC～+150ºC | |||||||
| High Temp. chamber | +60ºC～+200ºC | |||||||
| Pre-heating time | +60ºC～+200ºC, Within 20 min | |||||||
| Recovery time | High-Temp Exposure 30 min | |||||||
| Low-Temp Exposure 30 min | ||||||||
| Recovery time within 5 min | ||||||||
| Safety device | NFB(No fuse breaker), over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |||||||
| Standard accessory | Cable port(portΦ50mm)*1, shelves*2 | |||||||
| Interior material | Stainless steel plate(SUS 304) | |||||||
| Exterior material | Baked painting steel or stainless steel(SUS304) | |||||||
| Insulation material | Rigid polyurethane Foam + glass fiber wool | |||||||
| Refrigeration system | Water Cooled | |||||||
| Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23) | ||||||||
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | |||||||
| Operation model: Program or fix point running | ||||||||
| Memory capacity:120programs,1200steps, all repeat 999cycles,part repeat 99 cycles. | ||||||||
| Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||||
| Input:Temp.:pt-100 Humidity:pt-100 or ～5V DCV | ||||||||
| Ambient Temp. | +5ºC～+35ºC | |||||||
| Power | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||||
|
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
||||||||
Features
● GB-2423.1-2008(IEC68-2-1) test A: low-temperature test
● GB-2423.2-2008(IEC68-2-2) test B: high-temperature test
● GJB360.8-2009(MIL-STD.202F) Life of high temperature test
● GJBl50.3-2009(MIL-STD-810D) high-temperature test
● GJBl50.4-2009(MIL-STD-810D) low-temperature test
● GB2423.3-2008(IEC68-2-3) test Ca: constant damp heat test
● GB2423.4-2008(IEC68-2—30) test Db: Alternating hot and humid test method.
● GJBl50.9-2009(MIL-STD-810D) Damp heat test method.

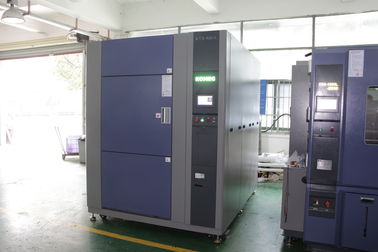

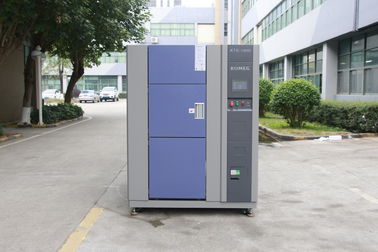

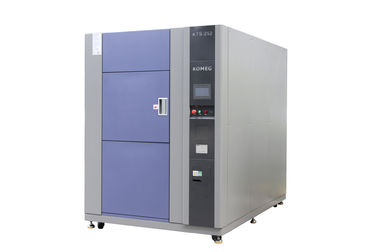

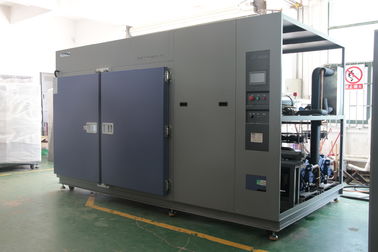

Prouduct Display
