Product Details:
Payment & Shipping Terms:
|
Pre-cooling Time: | +20ºC~-55ºC, Within 60 Min | Temperature Range: | -55ºC~-10ºC |
---|---|---|---|
Test. Chamber: | -40ºC~+150ºC | Pre-heating Time: | +60ºC~+200ºC ,Within 25 Min |
Inner Wall Material: | SUS304 # Matte Stainless Steel Plate | Insulation Materials: | Rigid Polyurethane Foam Insulation Layer + Glass Fiber. |
High Light: | thermal shock chamber,environmental testing chambers |

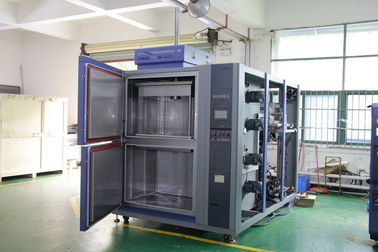

LCD Touch panel stainless stee 2-zone thermal sock chamber with safety device
2 zones Thermal Shock Test Chamber For Test Material High Low Temp Resistance
2 zones Themral Shock Test Equipment is used to test the bearing extent of the material structures and
composite material in an instant and continuous high temperature and extremely low temperature
environment, can used to test its thermal expansion and contraction caused by chemical change or
physical harm in the shortest time, arewidely applied for metal, plastic, rubber, electronics and other
materials and it can be used as an important reference for improving product quality.
Specifications
Model | TST-A Series | |||||
70A | 130A | 226A | 360A | 500A | ||
Test weight(KG) | 5 | 5 | 5 | 5 | 10 | |
Interior size | W(mm) | 410 | 520 | 610 | 710 | 810 |
H(mm) | 560 | 670 | 770 | 830 | 710 | |
D(mm) | 410 | 520 | 610 | 770 | 860 | |
Basket size | W(mm) | 300 | 410 | 510 | 610 | 710 |
H(mm) | 300 | 410 | 510 | 730 | 610 | |
D(mm) | 300 | 410 | 510 | 510 | 730 | |
Low Temp. chamber | -55ºC~-10ºC | |||||
Pre-cooling time | +20ºC~-55ºC, Within 60 min | |||||
Test. chamber | -40ºC~+150ºC | |||||
High Temp. chamber | +60ºC~+200ºC | |||||
Pre-heating time | +60ºC~+200ºC ,Within 25 min | |||||
Recovery time | High-Temp Exposure 30 min | |||||
Low-Temp Exposure 30 min | ||||||
Recovery time within 3 min | ||||||
Safety device | NFB(No fuse breaker), over pressure, over heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection | |||||
Standard accessory | Cable port(portΦ50mm)*1, shelves*2 | |||||
Interior material | Stainless steel plate(SUS 304) | |||||
Exterior material | Baked painting steel or stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam+glass fiber wool | |||||
Refrigeration system | Water Cooled | |||||
Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23) | ||||||
Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | |||||
Operation model:Program or fix point running | ||||||
Memory capacity:120programs,1200steps, all repeat 999cycles,part repeat 99 cycles. | ||||||
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||
Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV | ||||||
Ambient Temp. | +5ºC~+35ºC | |||||
Power | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
Features
● GB-2423.1-2008(IEC68-2-1) test A: low-temperature test
● GB-2423.2-2008(IEC68-2-2) test B: high-temperature test
● GJB360.8-2009(MIL-STD.202F) Life of high temperature test
● GJBl50.3-2009(MIL-STD-810D) high-temperature test
● GJBl50.4-2009(MIL-STD-810D) low-temperature test
● GB2423.3-2008(IEC68-2-3) test Ca: constant damp heat test
● GB2423.4-2008(IEC68-2—30) test Db: Alternating hot and humid test method.
● GJBl50.9-2009(MIL-STD-810D) Damp heat test method.

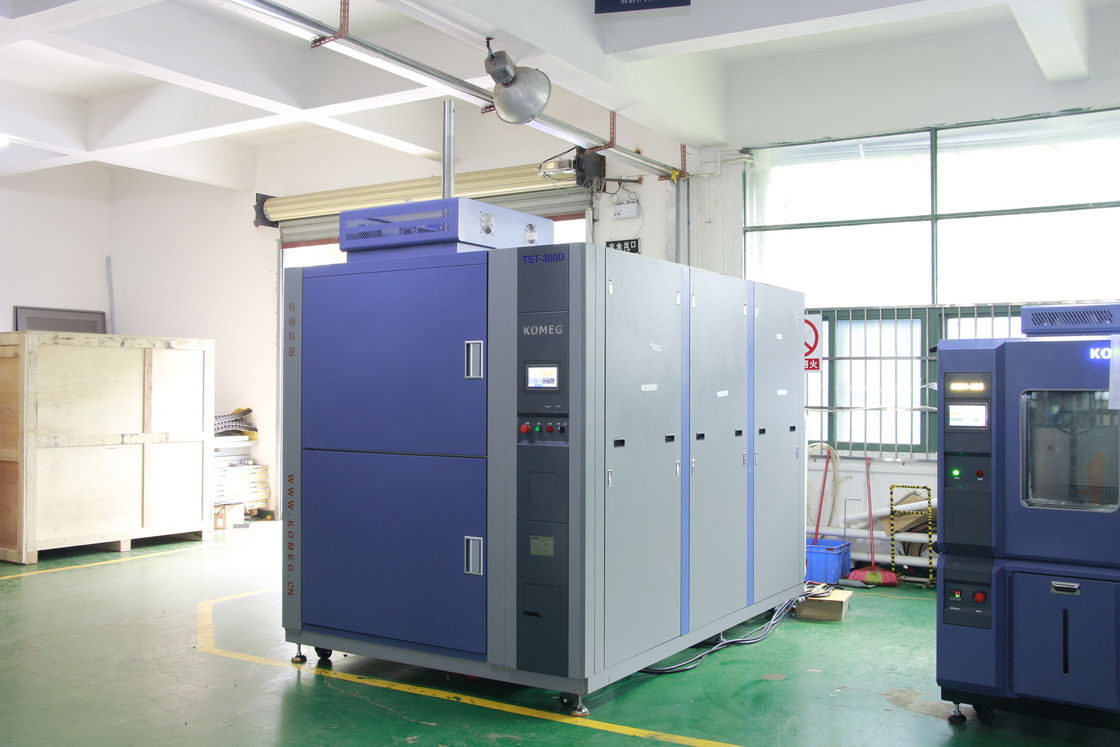

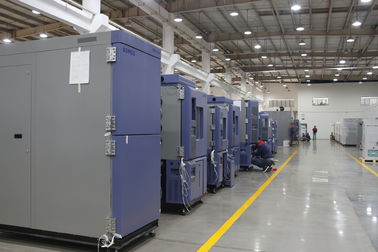

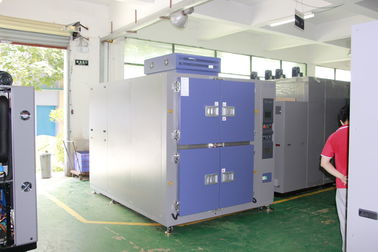

Prouduct Display
