|Products Name:||Walk-In Climatic Test Chamber||Test Volume:||19 Cubic|
|Temperature Range:||-40～+80℃||Humidity Range:||40% To 98%R.H|
|Material:||Stainless Steel||Power:||AC 380±10％ 50Hz ,3 Phase 4 Wires +Ground Wires|

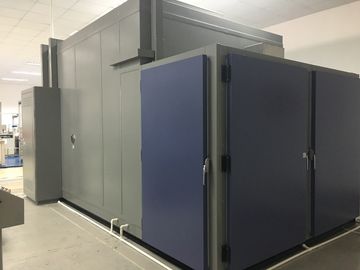

Intertek use 19 cubic walk in climatic test chamber for testing laboratory
Walk in test Chamber are simulate the environment temperature and humidity conditions used for various types of testing such as prototype evaluation, research & development testing, production testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed. widely used in many industries, such as aerospace industry, automation components, automotive parts, electrical and electronic parts, furniture, plastics, chemical, pharmaceutical industries and related products.
Stainless steel interior (or galvanized for savings)
Painted galvanized steel exterior for long life
MAP service doors are hinged (no tools or lifting)
Easy access to components
Reliable steam generator system for humidity applications
Sheathed electric heaters for safety and reliability
Adjustable vanes in supply grille allow directing of airflow as needed
Standards Implemented and met
GB-2423. 1-89(IEC68-2-1) Test A: Low Temperature Test
GB-2423. 2-89(IEC68-2-2) Test B: High Temperature Test
GJB360. 8-87(MIL-STD．202F) High Temperature Operating Life Test
GBJl50. 3(MIL-STD-810D) High Temperature Test
GJBl50. 4(MIL-STD-810D) Low Temperature Test
GB2423. 3-93(IEC68-2-3) Test Ca: method for steady-state damp heat test
GB2423. 4-93(IEC68-2—30) Test Db: Damp Heat Alternative Test
GJBl50. 9-93(MIL-STD-810D) Damp Heat Test
High quality and reliability performance;
Controller:Touch screen, parameter and program control;
Competitive price and 12 months free parts warranty.
|Interrior material (cm)||W||210||300||390||300||390||480|
|System||Balanced & Humidity Control Systerm|
|Heat up time||+20ºC~+80ºC ,Within 60 min|
|Pull down time||+20ºC~-55ºC -40ºC-20ºC-10ºC ,Within 120 or 90 or 60 or 45 min|
|Interior material||Stainless Steel Plate(SUS 304)|
|Exterior material||Baked Painting Steel Or Stainless steel(SUS304)|
|Insulation material||Rigid polyurethane foam|
|Door size (mm)||Single wing:W800*H1800;Double wing:W1600*H1800|
|Refrigeration system||Semi-hermetic compressor, single stage or cascade refrigeration system,CFC free refrigerant(HFC-507 and HFC-23)|
|Controllor||Touch controller, Chinese menu, Operation mode: setting/program|
|Safety Devices||No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection|
|Standard accessories||Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator|
|Power||AC 380±10%50Hz ,3 phase 4 wires +Ground Wires|
|Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available|
1.Heat preservation material, we use high-intensity PU foam with flame retardant material and high density glass fiber cotton, which can assure high precise and better uniformity and avoid unnecessary energy loss. Meanwhile, our design can better assure personnel safety when operating a Walk-in Chamber.
|Cold Room Temperature||Thickness of Cold Room Wall and Proof|
|5 - 15 Degree Celsius||75mm|
|-15 - 5 Degree Celsius||100mm|
|-20 - -15 Degree Celsius||120mm|
|-30 - -20 Degree Celsius||150mm|
|Lower than -30 Degree Celsius||200mm|
2. Large glass window design, viewing angle in all directions, hollow electric plating film and anti-condensation design; built-in LED lights to facilitate the test sample state of real-time observation in the course of testing; double door design, the inner big glass door with hand-in holes for the convenient operating.
3. Material quality of inner box is SUS304 # mounted stainless steel imported, and outer box is steel plate and the paint process applies automobile coating technology. Box body is processed shape using Triumph processing machine, its shape is nice and neat.
4. Large-size Full Color LCD touchscreen displayer, simple operation, easy to edit programs. PID with automatic calculation function; self-diagnostic function, show failure message and failure shot solutions step by step.
5. An RS-232 and RS-485 communication interface, matching recorder, strong expandability. We also support remote control by PC via wifi or wire (recommended).
