Product Details:
Payment & Shipping Terms:
|
| Blanket Dimension: | W 400× H 400 × D 400 Mm | Overall Dimension: | W 860 × H 2070 × D 2000 Mm (Excluding The Prominent Part Of The Chamber) |
|---|---|---|---|
| High Temperature Cabinet: | +60℃～+200℃ | Low Temperature Cabinet: | -50℃～+70℃ |
| Inner Housing: | SUS304# Non Bright Stainless Steel Plate | Outer Cabinet Material: | Stainless Steel With Color Plastic Painting |
| High Light: | temperature shock test chamber,environmental testing chambers |
||
Single door 64L 2-Zone thermal shock test equipment with 7 inch TFT color LCD monitor
Control Method
With High and Low temperature reservation cabinet, open the damper when necessary to do fast
temperature shock test. BTC(balance temperature control) system will control SSPR with PID, to ensure
system heating equals to heat lost. So this system can work for long period stably
Specifications
| Function: (Air Cooling and the temperature is +25C, no loading) | |
|
1. High Temperature Cabinet: |
+60℃～+200℃ |
|
2. Low Temperature Cabinet: |
-50℃～+70℃ |
|
3. High Temperature Thermal Shock range
|
+60℃～+150℃ |
|
4. Low Temperature Thermal Shock range |
-40℃～-10℃ |
| 5.Ramp rate |
In accordance with the IEC60068-3-5 standards Heating up rate for High Temperature Cabinet: +60℃to +200℃ non-linear 4.5℃/min no load Cooling down rate for High Temperature Cabinet: +70℃to -50℃ non-linear 3℃/min no load Ramp rate can be controlled linearly, the minimum rate is 1℃/min, the maximum can’t exceed the chamber’s ramp rate. |
| 6.Temperature unifomity | ≦±2℃ |
| 7.Temperature fluctuation | ≦±0.5℃ |
| 8. Operating mode |
a. High and low temperature thermal shock mode; b. High temperature, low temperature test can be controlled independently , when the samples are being tested in High temperature, low temperature cabinet and controlled independently , the test basket will be automatically locked. Two partitions can be put in the temperature tank, low temperature cabinet. Both high and low temperature test can be done. |
| Construction | |
| 1. Testing Cabinet Dimension | W 400× H 400 × D 400 mm |
| 2. Outer Dimension | W 860 × H 2070 × D 2000 mm (Excluding the prominent part of the chamber) |
| 3.Inner Cabinet Material | SUS304# Non Bright Stainless Steel Plate |
| 4. Outer Cabinet Material | Stainless Steel with color plastic painting |
| 5. Isolating Material | PUR + Glass Fiber |
| 6. Heater | High efficiency electric heater |
| 7. Air Circulation System |
a. Teco Motor b. Stainless Steel lengthening Axil c. Sirocco Fan |
| 8. Door | Single Door |
| 9. Testing Holes | 50mm at the top of the chamber |
| 10. Sample Holders | 2 sample holders with SUS #304 |
| 11.Test Drive way | Rack gear racking |
| 11.Door Sealing | Silicone form sealing belt |
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150

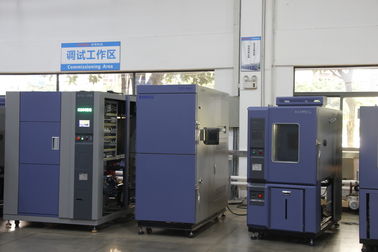

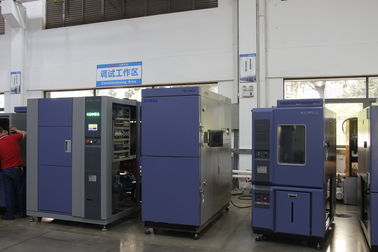

Prouduct Display

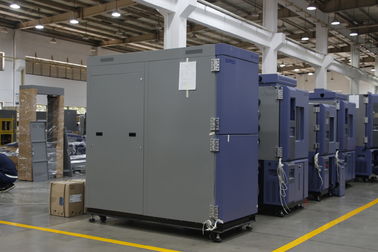

Packing and Shipment:
