Product Details:
Payment & Shipping Terms:
|
| Interior Material: | Stainless Steel | Exterior Material: | Rigid Poly Foam And Wooden Box |
|---|---|---|---|
| Standard Test Requirement: | IEC61215 | Name: | Temperature And Humidity Chamber |
| Interior Size: | W 700 × H 1500 × D 2500 Mm | Inner Volume: | 2625L |
| High Light: | temperature shock test chamber,thermal shock chamber |
||
PV Solar Panel Specific Thermal Cycling and Humidity Test Chamber
Oem are welcome ,more information , pls kindly contact :anna@komegtech.com
Technical specification
| 2. Temp. Deviation |
≦±2.0℃
|
| 3. Temp. Uniformity |
±2.0℃
|
| 4. Temp. Fluctuation |
±0.5℃
|
| 5. Heating Rate |
From -40℃ to +85℃, linear, ≧200℃/h, with load, No Heat Emission
|
| 6. Cooling Rate |
From +85℃ to -40℃, linear, ≧200℃/h, with load, No Heat Emission
|
| 7. Humidity range |
30%R.H～85%R.H
|
| 10. Humidity Deviation |
±3.0％RH(＞75％RH)
±5.0％RH(≤75％RH) |
| 11. Humidity Uniformity |
±3.0％RH (no load)
|
| 12. Humidity Fluctuation |
±2.0％RH
|
| 13. Load |
2-3 PV Modules to be loaded in a vertical orientation.
Single panel max. size of 2000*1000*50mm.
Total weight of 60-90KG. |
|
The above specifications is measured in the environment of + 25 ℃, temperature and humidity
performance measurement comply with related regulation of IEC60068-3 standard; Sensors placed in
the air outlet. |
|
|
V. Body Structure
|
|
|
Overall structure, the chamber consists of three parts: Insulation chamber body, separate refrigerating
unit and electric control cabinet. |
|
|
W 700 × H 1500 × D 2500 mm, inner volume: 2625L |
|
Approx. W 2000 × H 1900 × D 3380 mm, (not including the machine
protruding part, like the controller ) |
|
High-quality carbon stainless steel plate, the surface for electrostatic
color spray treatment |
|
stainless steel (SUS # 304) |
|
Rigid polyurethane foam + glass wool.
Insulation panels is connected with eccentric hook |
|
Left open door, door size of W700*H1500mm,
With observation windows W400*H400 mm, |
|
Open total 1 cable hole of φ100mm, on the left side of the chamber,
Equipped with rubber isolation plugs and plastic cover. |
About Solar Panel Test Chamber
1. Alternative energy sources are the future of the world we live in. Solar energy is one of the forerunners of this energy revolution.
2. The panels need to be able to withstand whatever mother nature throws at them. For this reason environmental testing has become a integral step in product development and design.
3. Solar panel refers either to a solar hot water panel, a common type of a solar thermal collector, or to one or more solar photovoltaics (PV) modules, electrically connected and mounted on a supporting structure.
4. Solar modules must withstand rain, hail, heavy snow load, and cycles of heat and cold for many years. Many crystalline silicon module manufacturers offer a warranty that guarantees electrical production for 10 years at 90% of rated power output and 25 years at 80%.

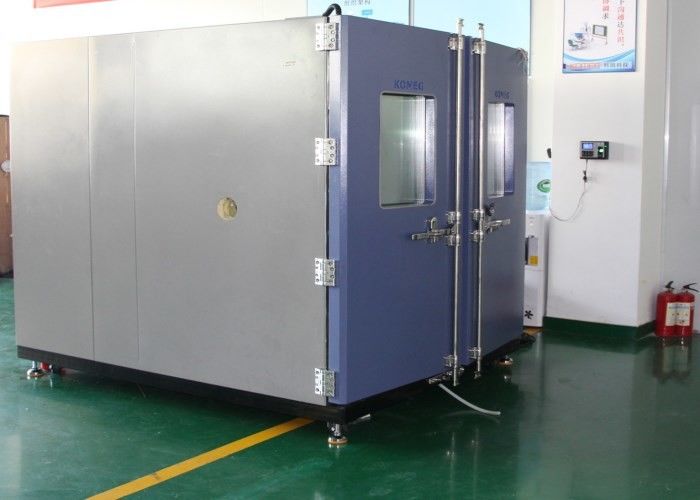

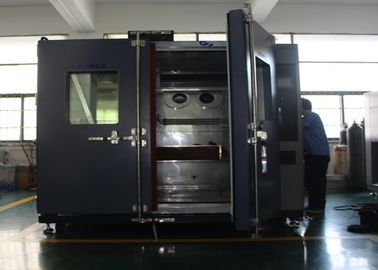

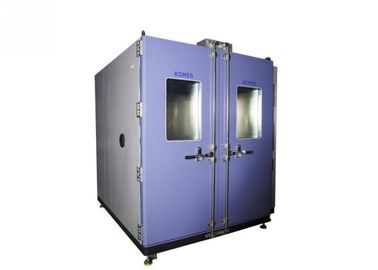

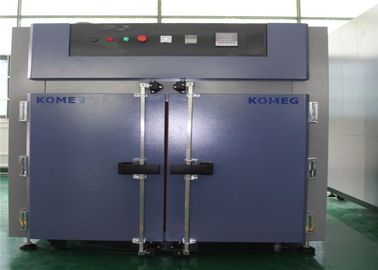

Product show
