Product Details:
Payment & Shipping Terms:
|
High Temperature Exposure Temperature Range: | +60℃ ~ +200℃ | Low Temperature Exposure Temperature Range: | -55℃ ~-10℃ |
---|---|---|---|
Preheating Temperature Up Time: | +60℃ ~+200℃ Within 20min | High And Low Temperature Impact Thermostat Time: | ≦30min |
Interior Material: | Stainless Steel Plate(SUS304) | Power Supply: | AC 3ψ4W 380V 50Hz (R, S, T, N Plus Ground) (voltage Fluctuation ≦ ± 10%) |
High Light: | temperature shock test chamber,environmental testing chambers |
Single Door Thermal Shock Test Equipment / Machine 150L Water Cooled Condenser
Applications
3 Zone thermal shock test chamber is used for extremely high and low temperature in time as short as possible,to test chemical or physical damage to the specimen.Specimen fits for metal,plastic, rubber,electrical components,etc.The testing result can be data base or proof for improving a products.
Specifications
Main Technical Parameters:(Water Cooled,Water temperature+25℃,no load ) | |
Temperature shock range | High temperature exposure temperature range:+60℃ ~ +200℃ |
Low temperature exposure temperature range:-70℃ ~ -10℃ | |
High temperature preheating chamber temperature range | +60 ~ +200℃ |
Preheating temperature up time | +60℃~ +200℃ within 20 min |
Low temperature storage chamber temperature range | -70℃ ~-10℃ |
Cooling temperature pull down time | +20℃ ~ -70℃within 60 min |
Shock recovery time |
-55℃ ~ +150℃ about 5min (Load 5kg electronic products or car parts) (Sensor placed in the unit outlet) |
High and low temperature impact thermostat time | ≦30min |
Temp.uniformit | ±2.0℃ |
Temp.fluctuation | ±0.5℃ |
Structure | |
Workspace volume | W 600 × H 500 × D 500 mm |
Exterior size | About W 1640 × H1890 × D 1830 mm (Not contain a prominent part) |
Chamber Structure | Independent product testing area, high temperature heat storage area, low temperature storage area |
Interior material | (SUS 304#) |
Exterior material | Baked painting steel |
Insulation material |
High Temp.chamber:24k Glass fibre wool Low Temp.chamber: PU Foam+Glass fibre wool |
Heater | Bare wire heater |
Air circulation system | a.TECO Motor b.Stainless steel ext c.(SIROCCO FAN) |
Door | Single door, a .Flat embedded handl B. Rear button:SUS 304 C. Silicone foam strip |
Noise | Measured at 1 meter from the machine, the noise is ≦70dB |
Refrigeration System | |
Compressor | German Bock semi-hermetic compressor or German semi-hermetic compressor |
Refrigerant | R404A/R23 ,safe and no ozone damage |
Condenser | Shell and tube condenser ( water cooled ) |
Evaporator | High function fin type auto load adjusting and no frosting during long time operating |
Accessories | High accuracy expansion valves, Oil Separator, drier are all top international brands |
Refrigerant Control | Auto adjust energy output |
Refrigeration Technology |
Nitro protect welding, bi-stage vacuum bump to ensure clean and stable inside the system ※Water collecting plate under compressor, drainage the waters out of the chamber through pipe |
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150

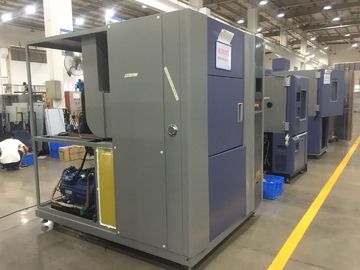

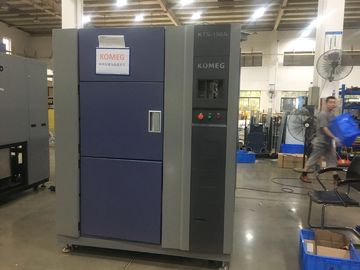

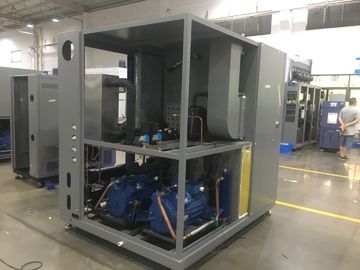

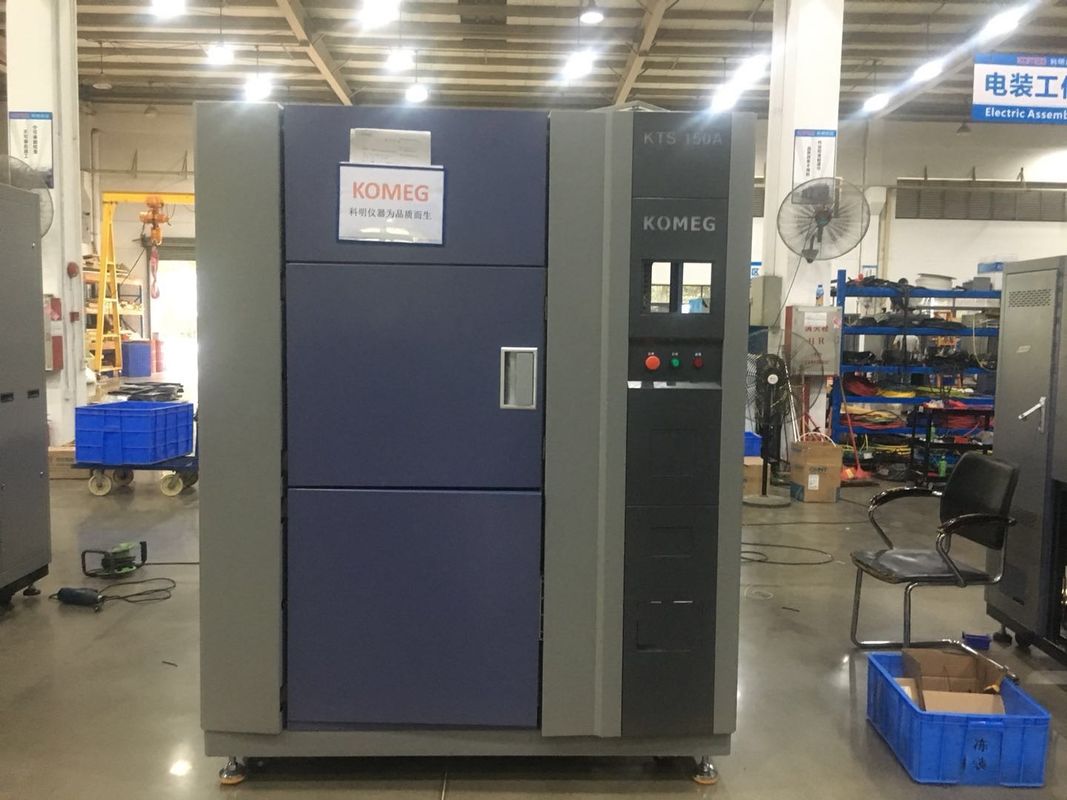

Prouduct Display
Packing and Shipment:
