Double Door Walk-In Chamber With Programmable KM -5166 LCD Touch Screen Controller

China Double Door Walk-In Chamber With Programmable KM -5166 LCD Touch Screen Controller supplier
Double Door Walk-In Chamber With Programmable KM -5166 LCD Touch Screen Controller supplier Double Door Walk-In Chamber With Programmable KM -5166 LCD Touch Screen Controller supplier Double Door Walk-In Chamber With Programmable KM -5166 LCD Touch Screen Controller supplier Double Door Walk-In Chamber With Programmable KM -5166 LCD Touch Screen Controller supplier

Large Image :  Double Door Walk-In Chamber With Programmable KM -5166 LCD Touch Screen Controller

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE/ROHS/FCC/
Model Number: KMHW-7L(Walk-in Chamber)

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment30 work days upon deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 1, 000~1, 500 SETS / YEAR
Contact Now
Detailed Product Description
Product Name: Programmable Walk-in Test Chambers Controller Panel: KOMEG Programmable KM-5166 LCD Touch Screen Controller With PID Control Parameters Setting
Temperature Range: -34℃ ~ +85℃ Temp. Deviation: ≦±2.0℃
Humidity Range: 20 ~95%RH Humidity Deviation: ±3.0%RH(>75%RH) ±5.0%RH(≤75%RH)



Double Door Walk-In Chamber With Programmable KM -5166 LCD Touch Screen Controller





 Applications



A KOMEG Walk-In Chamber serves as a test site for large components, assemblies, and finished



products in electrical and electronics, aerospace, batteries and automobiles, etc. KOMEG manufactures



both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature



chamber or a temperature humidity chamber.



The KMHW-Series walk-in temperature and climate test chambers are especially developed for large test



specimens. Size and design are optimal loading of test specimens. The modular construction and



variability in size and equipment is ideally for specific application.

.



Features



● GB-2423.1-2008 (IEC68-2-1) Test A: Low Temperature Test



● GB-2423.2-2008 (IEC68-2-2) Test B: High Temperature Test



● GJB360. 8-87(MIL-STD. 202F) High Temperature Life Test



● GBJl50. 3(MIL-STD-810D) High Temperature Test



● GJBl50. 4(MIL-STD-810D) Low Temperature Test



● GB2423. 3-93(IEC68-2-3)Test Ca: Constant Heat Test



● GB2423. 4-93(IEC68-2—30)Test Db: Damp Heat Alternative Test



● GJBl50. 9-93(MIL-STD-810D) Damp Heat Test







Prouduct Specifications



Temperature
Temperature range -34℃ ~ +85℃
Temp. Deviation ≦±2.0℃
Temp.Fluctuation ±0.5℃
Temp. Uniformity ≦2.0℃
 Heating time From -15℃ to +85℃ Average 5℃/min at no load
Cooling time From +85°C to -15°C Average 5°C/min at no load
Humidity
Humidity range 20 ~95%RH
Temperature and humidity range





Humidity deviation

±3.0%RH(>75%RH)

±5.0%RH(≤75%RH)

Humidity Uniformity ±3.0%RH(no-load)
Humidity fluctuation ±2.0%RH
 Load The product has a maximum weight of 200kg and no heat.
Temperature and humidity performance measurement comply with related regulation of IEC60068-3 standard; Sensors placed in the air outlet.
Chamber Structure ( on-site installation )
Chamber size

Workspace volume : W 1800 × H 2100 × D 1800 mm

Exterior size : W 2350 × H 2400 × D 3900 mm ( not including the machine protruding part, like the control cabinet of 350mm )

Insulation box

wall material: high-quality carbon steel with static color spray

inner wall material: SUS304 # matte stainless steel plate

Insulation material: 100mm rigid polyurethane foam insulation + glass fiber

Door Double door, W (900+900)*H2100mm, including window (specific size, according to design).
Air circulation system

Motor

Long stainless steel shaft

Wind drum strong wind circulation and air conditioning box air supply

Lighting device moisture-proof incandescent lamps.
Thread port Diameterφ100mm *1 port on the left chamber with rubber isolation plug and plastic cover.
Shelf No
Electric control box Total power circuit breaker, over-temperature protection.
Pressure balance The test chamber has a pressure balance port *1 to prevent the pressure in the chamber from being too high.
Control method Forced circulation ventilation, Balanced thermostat conditioning (BTHC).
 Heating High-quality nickel-chromium alloy wire heater, non-contact control mode (SSR).
Humidifying Stainless steel corrosion heat evaporative humidification.
Humidity Sensor Electronic humidity sensor, no need to replace wet cloth.
Condensate outlet Equipped with studio condensate and unit condensate drain holes.
Pure water machine Pure water machine type 1, Please provide 1 ~ 2kg/cm2 tap water source.






















































Product details

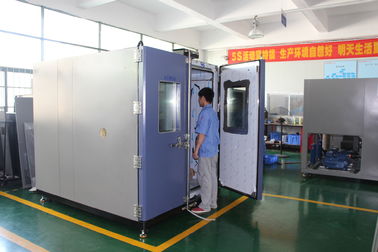

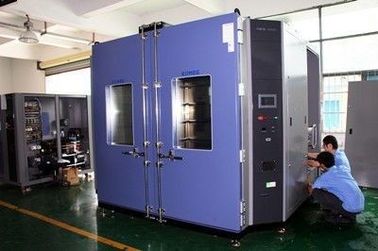

Double Door Walk-In Chamber With Programmable KM -5166 LCD Touch Screen Controller

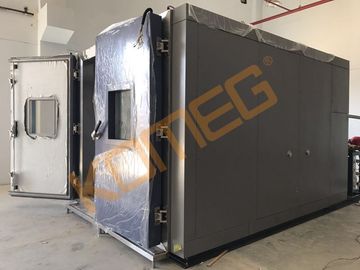

Packaging:


Chambers are covered with air bubble film before put them into the strong plywoodcase, which not only



has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic,



odorless, moisture corrosion, crash-proof, etc

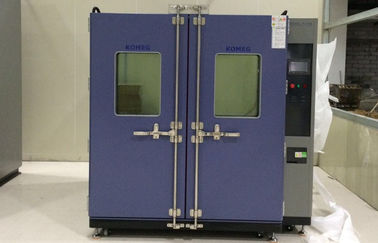

Double Door Walk-In Chamber With Programmable KM -5166 LCD Touch Screen Controller





After-sales Service and Training



Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty



period, the user will be charged properly. Irregular examination and life-long service are available;



Note: If needed, provide 2 operators for on-site installation and training
