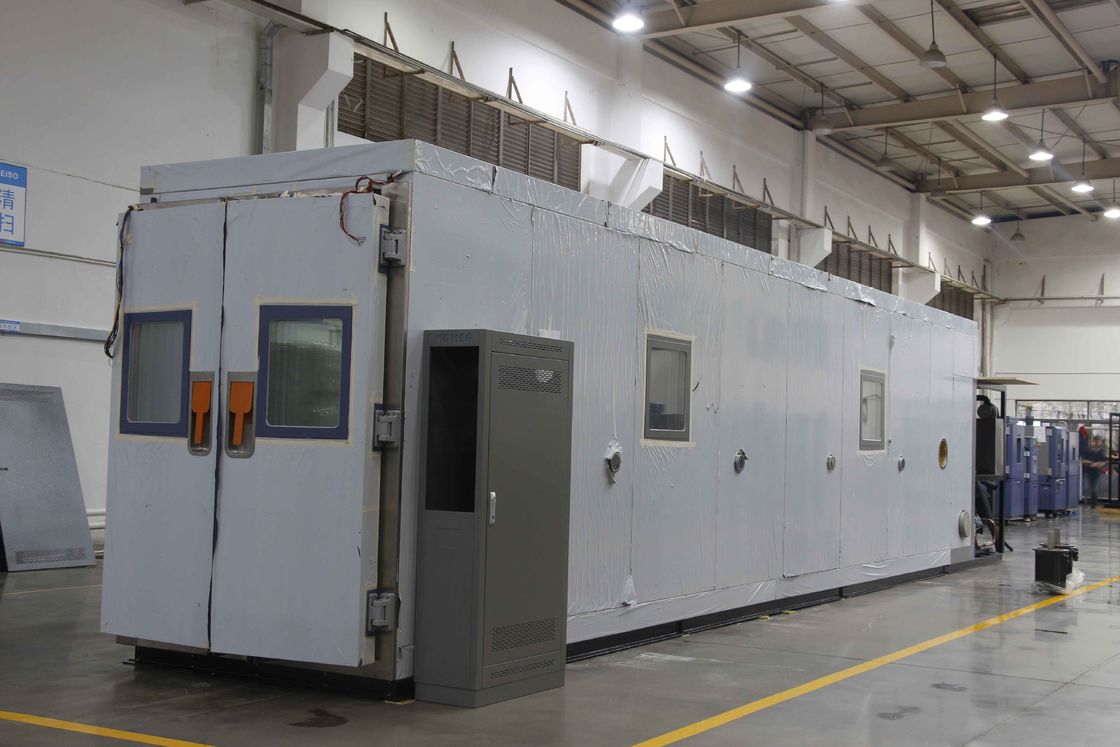

Customized Walk In Stability Chamber , Climatic Temperature Humidity Test Chamber

China Customized Walk In Stability Chamber , Climatic Temperature Humidity Test Chamber supplier
Customized Walk In Stability Chamber , Climatic Temperature Humidity Test Chamber supplier Customized Walk In Stability Chamber , Climatic Temperature Humidity Test Chamber supplier

Large Image :  Customized Walk In Stability Chamber , Climatic Temperature Humidity Test Chamber

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: KOMEG
Certification: CE, ISO9001
Model Number: KMHW-36R

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: FOB 100000~150000USD/SET
Packaging Details: Packed with film firstly, and then reinforced with wooden case for outer packing
Delivery Time: 25-45 workdays upon receive your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1, 000~1, 500 SETS / YEAR
Contact Now
Detailed Product Description
Interior Material: SUS#304 Stainless Steel Plate Controller: LED Touchscreen 7 Inch
Humidity Uniformity: ±3.0% Or ±5.0% Humidity Range: 10~98%
Temperature Range: -20 °C To 150/180 °C Insulation: Polyurethane Foam 100mm/75mm/50mm
Usage: Auto Testing Machine Temp. Uniformity: ±2.0ºC
Humidity Constancy: ±2.5%R.H Ambient Temp.: +5°C ~+35°C



Customized Walk In Stability Chamber , Climatic Temperature Humidity Test Chamber





 Product Application





Double door large test volume environment temperature and humidity test chamber simulates the effects that a range of temperature and humidity conditions have on a product or material,for example telecommunications equipment or photovoltaic solar panels that are exposed to outdoor temperature and humidity conditions.They have applications in industries as disparate as food science,semiconductors,and military quality assurance. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field. Climate test chambers fits on a room-sized chamber for large object or for testing large batches of product simultaneously. Temperature ranges from -70°C to 100 °C and relative humidity ranges between 30% and 90% are available. It can also be used when constant climate conditions(temperature and/or humidiy) are needed for product testing.





Walk-in climate humidity test room


1.Longer service life


2.Low maintenance



3.Durability



4.Ensures stability & reliability



5.Low wattage heaters





Environmental test chamber Standard



GJB150.3 high-temperature testing



GJB150.4 low-temperature testing



GJB150.9 humid testing



GB11158 Technical conditions for high-temperature testing box



GB10589-89 Technical conditions for low-temperature testing box



GB10592-89 Technical conditions for high and low temperature testing box



B/T10586-89 technical conditions for humidity testing chamber



GB/T2423.1-2001 Low-temperature testing methods



GB/T2423.2-2001 High-temperature testing methods



B/T2423.3-93 Testing Method for humidity Test Chamber



GB/T2423.4-93 Alternating hot and humid testing method



GB/T2423.22-2001temperature testing method



IEC60068-2-1.1990 low-temperature testing method



IEC60068-2-2.1974 high-temperature testing method





Specifications



KMH-S series( -70°C ~150°C)standard mordels


Model KMH-S series
150S 225S 408S 800S 1000S
Temp. range -70°C ~150°C
Interior sizel W(mm) 600(mm) 700(mm) 700(mm) 1000(mm) 1000(mm)
H(mm) 600(mm) 700(mm) 750(mm) 1000(mm) 1000(mm)
D(mm) 460(mm) 480(mm) 800(mm) 800(mm) 1000(mm)
Exterior size W(mm) 880(mm) 980(mm) 980(mm) 1280(mm) 1280(mm)
H(mm) 1730(mm) 1890(mm) 1940(mm) 2160(mm) 2160(mm)
D(mm) 1400(mm) 1460(mm) 1740(mm) 1750(mm) 1950(mm)
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 280 330 450 550 650
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -70°C ~+100°C ,within 60 min
Pull down time +20°C ~-70°C , within 80 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles



Customized model KMHW-36R



Chamber Structure (On site splicing type)
1. Dimension of the chamber

Interior size: W 3000 × H 3000 × D 4000 mm

Exterior size: W 3450 × H 3200 × D 4980 mm External dimensions excluding protruding parts

2. Insulation box

※ Wall material: high-quality carbon steel with static color spray

※ Inner wall material: SUS304 # matte stainless steel plate

※ Insulation materials: 50mm rigid polyurethane foam insulation layer + glass fiber.

3. Door Single door, size W900*H1900 mm , With observation window (according to design)
4. Lighting device Moisture - proof incandescent lamp 6 pcs
5. Threading hole Φ100mm*1 located on left side with rubber stopper and plastic cover
6. Sample holder without
7. Electric control box Total power circuit breaker, over-temperature protection.
8. Pressure equalizing port Chamber pressure balance port 1, to prevent excessive pressure inside the box
9. Control method Forced ventilation, balanced thermostat (BTHC).
10. Heater High quality nickel - chromium alloy wire electric heater, Contactless control mode (SSR)
11. Humidification Stainless steel corrosion-resistant evaporative humidification
12. Humidity Sensor Capacitive humidity sensor for humidity control inside the box, without changing the wet cloth.
13. Pure water machine 1 type (please provide 1 ~ 2kg / cm2 water source)



Main Features



1 Large system capacity: 120 patterns*1200 steps, circulation Setting: Max. 9999 cycles, PID+SSR/SCR controller. Curves drawing, safety device



2 RS-232/RS-485/RJ 45/Ethernet/USB communication interface.


3 CE certification



4 Large LCD Touch screen controller



5 SUS#304 stainless steel plate inner chamber, stainless steel plate with Powder coated exterial chamber.



6 Germany Bitzer compresser, environmental-friendly refrigerant (R404A, R23)



7 PU&fiberglass wool insulation is to make the temperature stable.



8 Large glass observation window with lamp, users can see the sample test effects directly.



9 Using more powerful wing blower air supply to make the temperature and humidity evenly dIstributed in
the test area.



10 Best after sales service: One year free parts maintenance warranty.



11 Installing the equipment on-site and training oversea are available. At present, we have beeen to Pakistan, Australia to install the test equipment.



12 Customization for inner chamber size, temperature and humidity range is available & welcomed.





Related Products





Besides walk-in climate room, our business range also covers:


Temperature humidity chamber, Thermal shock chamber, Temperature humidity control cabinet, Change rate temperature chamber, Ozone test chamber, Industrial hot air oven, Dustless hot oven, Salt spray chamber, Rain spray test chamber, Sand and dust chamber, Automatic glue dispensing machine, Climate and vibration combined chamber, Burn-in aging test room, Steam aging test chamber, Ventilation aging test chamber, Vibration tester, Tensile tester, Drop tester, etc.





FAQ



Q1: What is your Warranty service for the KOMEG machine/chamber?


A1: we offer 1 years warranty service. If any quality problems on our side occured in this period ,we will send you replacement and cover the cost of shipping and component parts.



Q2: What's your period and terms of delivery?


A2: Usually, it takes us 20 - 25 days after order confirmation to produce the equipment and a little bit longer for customization service. While if you are in urgent need, we can make special arrangement to speed up the proceedings. Then we start the shipped by sea, by air freight or by air express.



Q3: What’s your terms of payment?


A3: T/T, L/C and other payment terms are all acceptable.



Q4: Is it ok for customization service?


A4: Yes, inner chamber size, structure, color, other special parameters can be all customized as per your own specific request.
